Revolutionize Your Metal Component Packaging with Integrated Cutting & Packaging Automation
In the world of precision metal component manufacturing, the transition from stamping to packaging is often a bottleneck—fraught with handling inefficiencies, quality inconsistencies, and throughput limitations. Our Cutting and Packaging Machine Solution is engineered to bridge this gap, offering a fully integrated system that seamlessly transitions from raw material to packaged product in one continuous, automated workflow. Designed for high-volume production environments, this solution combines precision cutting, multi-angle vision inspection, and automated packaging into a single, high-efficiency platform capable of processing up to 24,000 pieces per hour with exceptional accuracy and reliability.

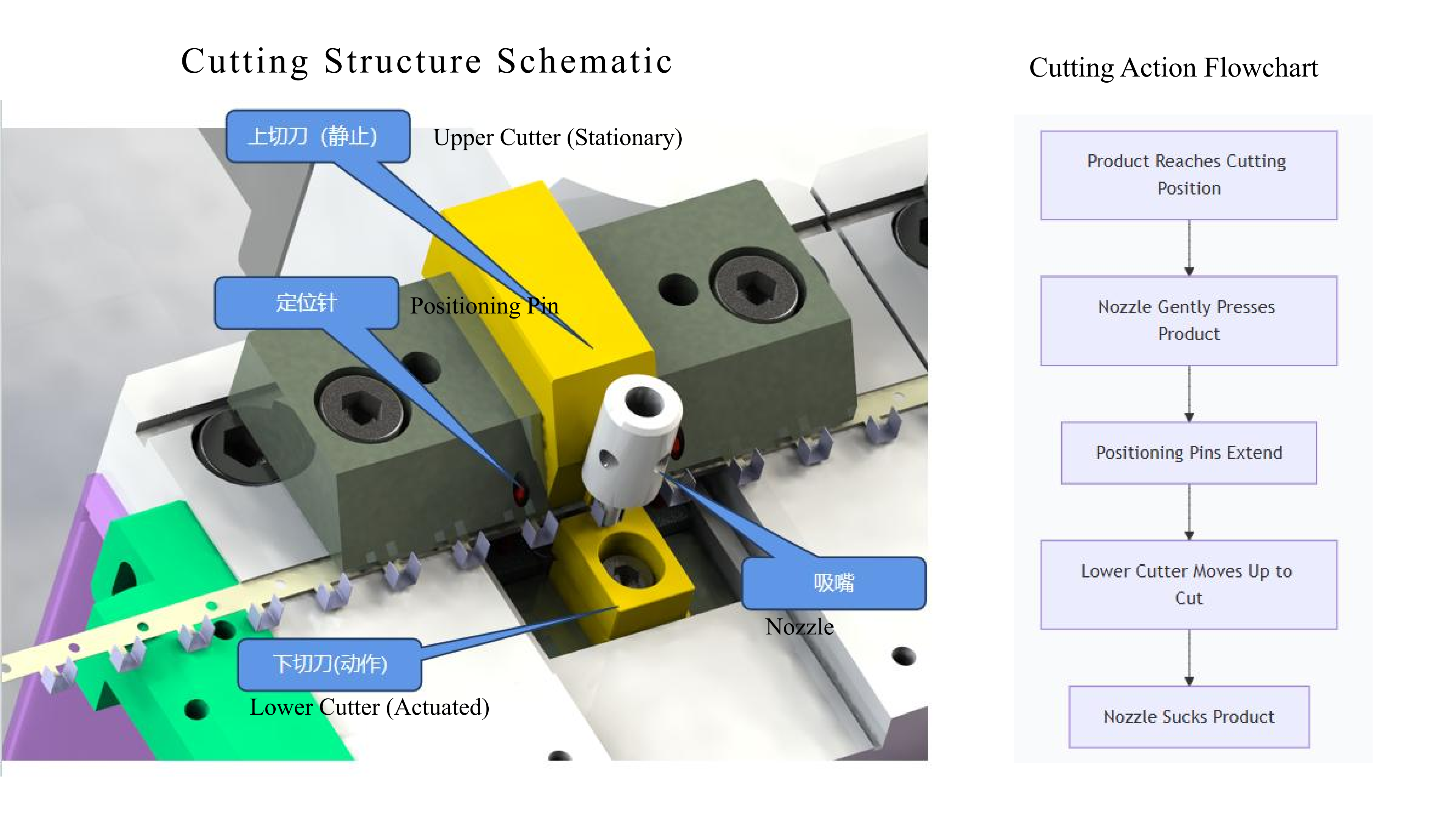

Unmatched Precision Cutting with Minimal Burr Formation
At the core of our system lies an advanced servo-driven cutting mechanism that delivers clean, precise cuts with burr formation limited to ≤0.02mm. This exceptional precision is achieved through a meticulously engineered cutting structure that ensures consistent performance across a wide range of materials and thicknesses. The cutting process is fully synchronized with the material feeding system, allowing for continuous operation without interruption. For manufacturers of shielding covers, connectors, and precision stamped parts, this capability ensures that components meet the strictest dimensional and aesthetic standards required for high-reliability applications.

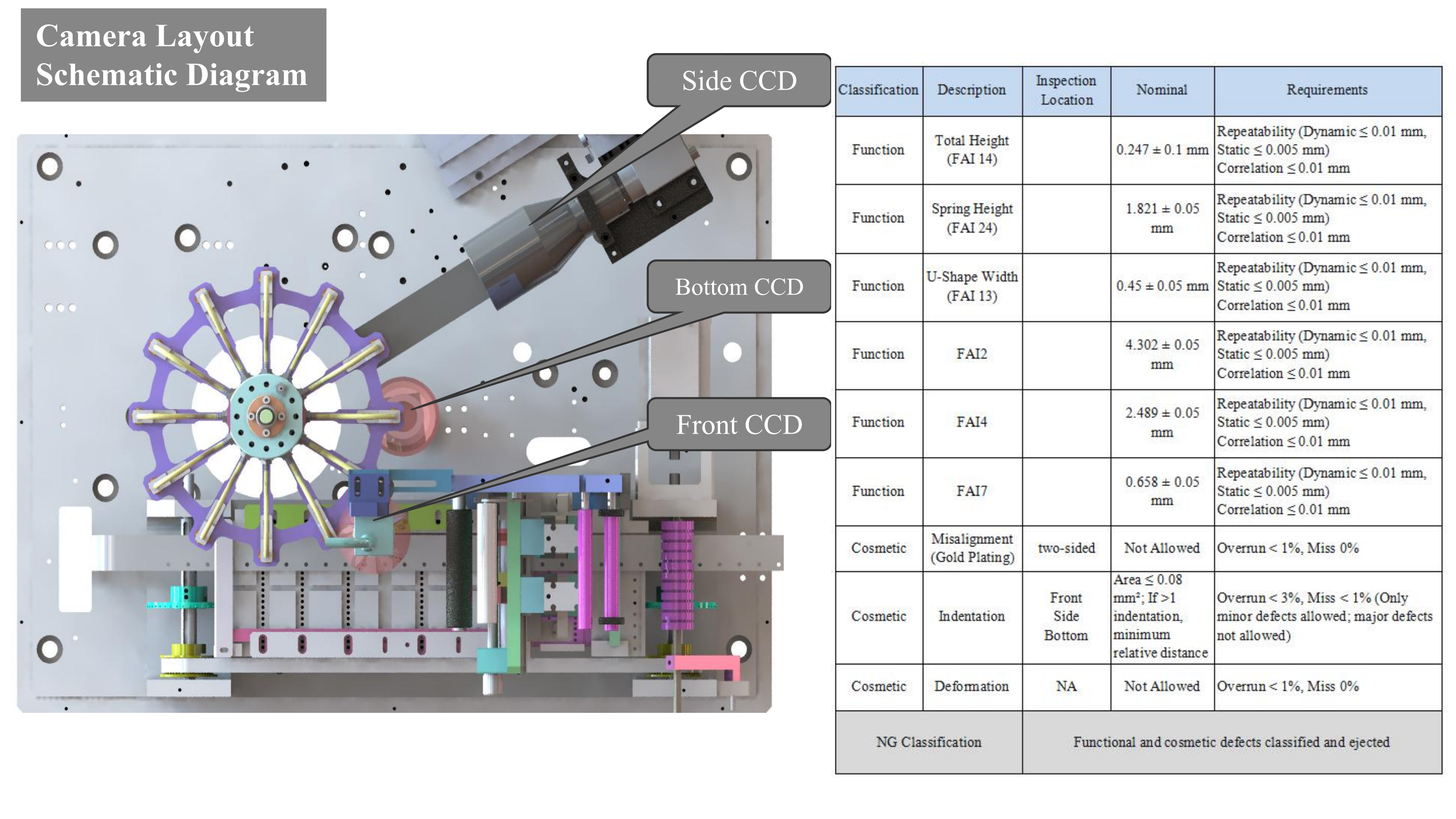

Comprehensive Three-Sided CCD Inspection for Total Quality Assurance
Quality control is integral to our cutting and packaging solution, with a robust three-sided CCD inspection system that evaluates components from the top, bottom, and side perspectives. Utilizing high-resolution Keyence CV-5701 and CV-H200M series cameras, the system detects even the most subtle defects, including surface imperfections, dimensional deviations, and orientation errors. This multi-angle visual inspection approach ensures that only flawless components proceed to packaging, significantly reducing downstream quality issues and customer returns. The system also includes automatic NG rejection functionality, seamlessly removing defective parts and cutting scrap without interrupting the production flow.

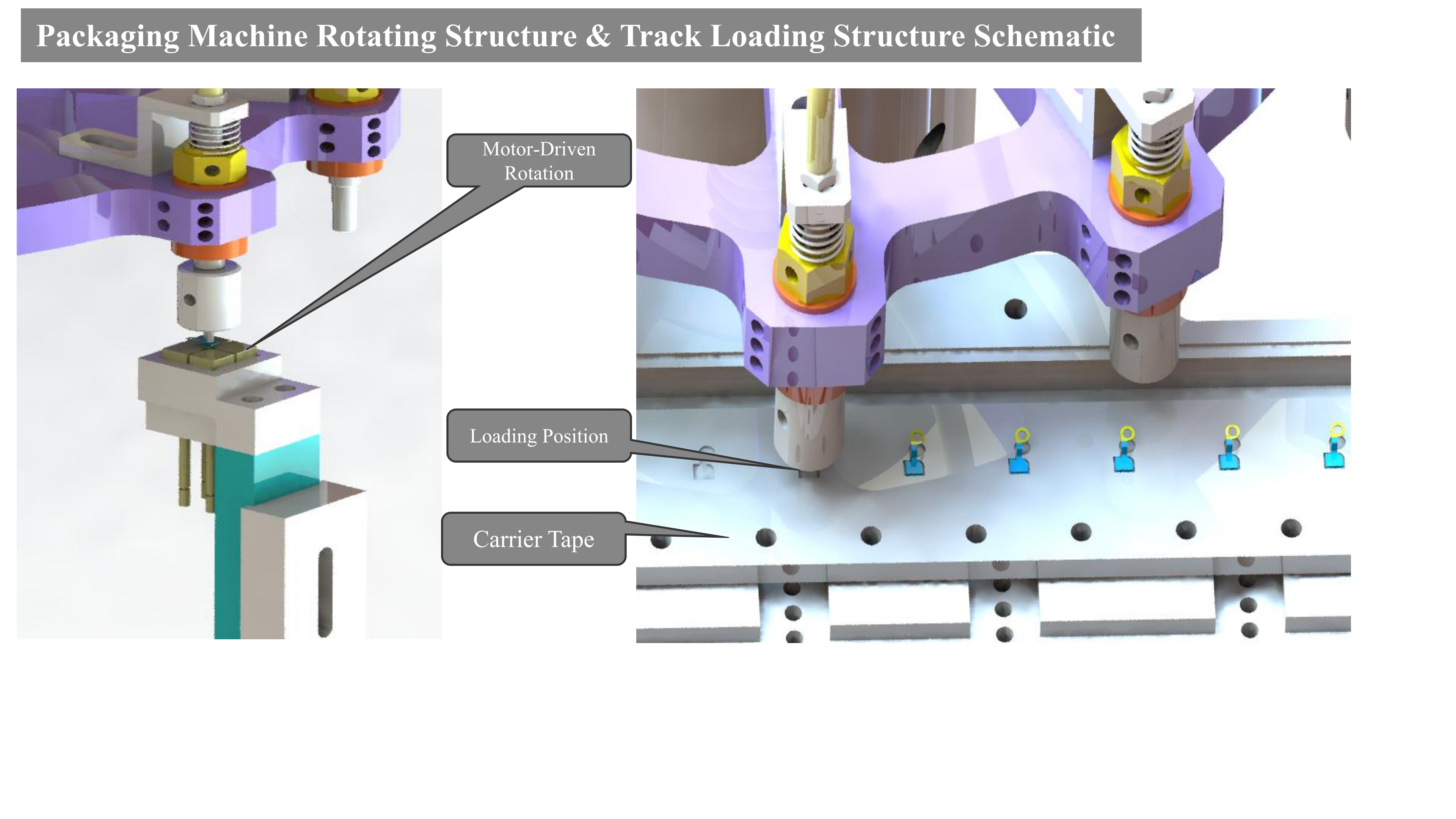

Intelligent Material Handling and Positioning System
Efficient handling is critical in high-speed packaging applications, and our system excels in this regard with an intelligent turret pick-up and rotating structure driven by a precision cam divider. This mechanism allows for specifiable rotation angles and gentle component handling, minimizing the risk of damage during transfer. The four-claw centering alignment structure ensures precise positioning before packaging, while the adjustable loading track accommodates a range of component sizes and tape widths. This flexible material handling system enables quick changeovers and supports diverse product portfolios without requiring extensive reconfiguration.

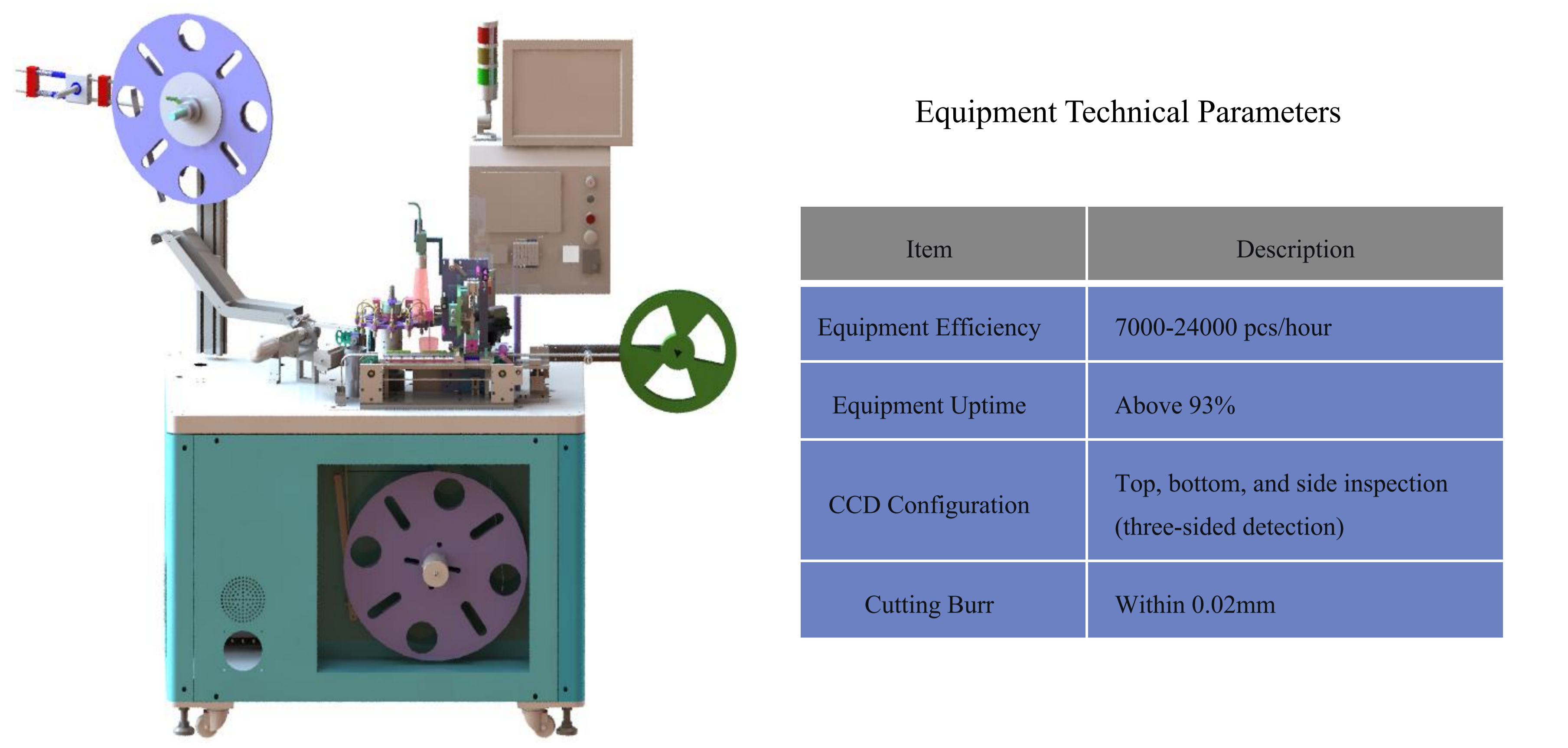

High-Speed Operation with Exceptional Uptime Reliability
Designed for demanding production environments, our cutting and packaging machine delivers not only high speed but also exceptional reliability, with uptime exceeding 93%. The system’s efficiency range of 7,000–24,000 pieces per hour allows manufacturers to scale production according to demand without compromising quality. The integration of high-performance Panasonic PLCs and servo motors, along with robust mechanical components from trusted brands such as Kompo and Leadshine, ensures consistent, trouble-free operation even under continuous use. This reliability translates into higher overall equipment effectiveness (OEE) and a stronger return on investment.
Why Choose Our Cutting & Packaging Solution?
Our system represents more than just a machine—it’s a comprehensive production enhancement platform that addresses the key challenges faced by manufacturers of precision metal components. By integrating cutting, inspection, and packaging into a single automated system, we help our clients:
Reduce labor costs and minimize human error
Improve product consistency and quality compliance
Increase throughput and shorten time-to-market
Enhance traceability with integrated data logging
Achieve a faster return on investment through higher efficiency
Technical Excellence Backed by Proven Components
We build our systems using only high-quality, industry-proven components, including Keyence vision systems, Panasonic motion control, and precision mechanical assemblies from leading suppliers. This commitment to quality ensures long-term reliability, ease of maintenance, and consistent performance. Our modular design also allows for customization to meet specific application requirements, ensuring that each system is optimized for its intended use.
Experience the Future of Automated Component Packaging
Discover how our Cutting & Packaging Machine Solution can transform your production line. With its combination of speed, precision, and reliability, this system represents a strategic investment in manufacturing excellence. Contact our engineering team today to discuss your specific requirements, request a demonstration, or receive a tailored proposal.
Ready to elevate your metal component packaging to the next level?
Our application specialists are prepared to guide you through implementation, from initial assessment to installation, training, and ongoing support, ensuring you achieve optimal performance from day one.

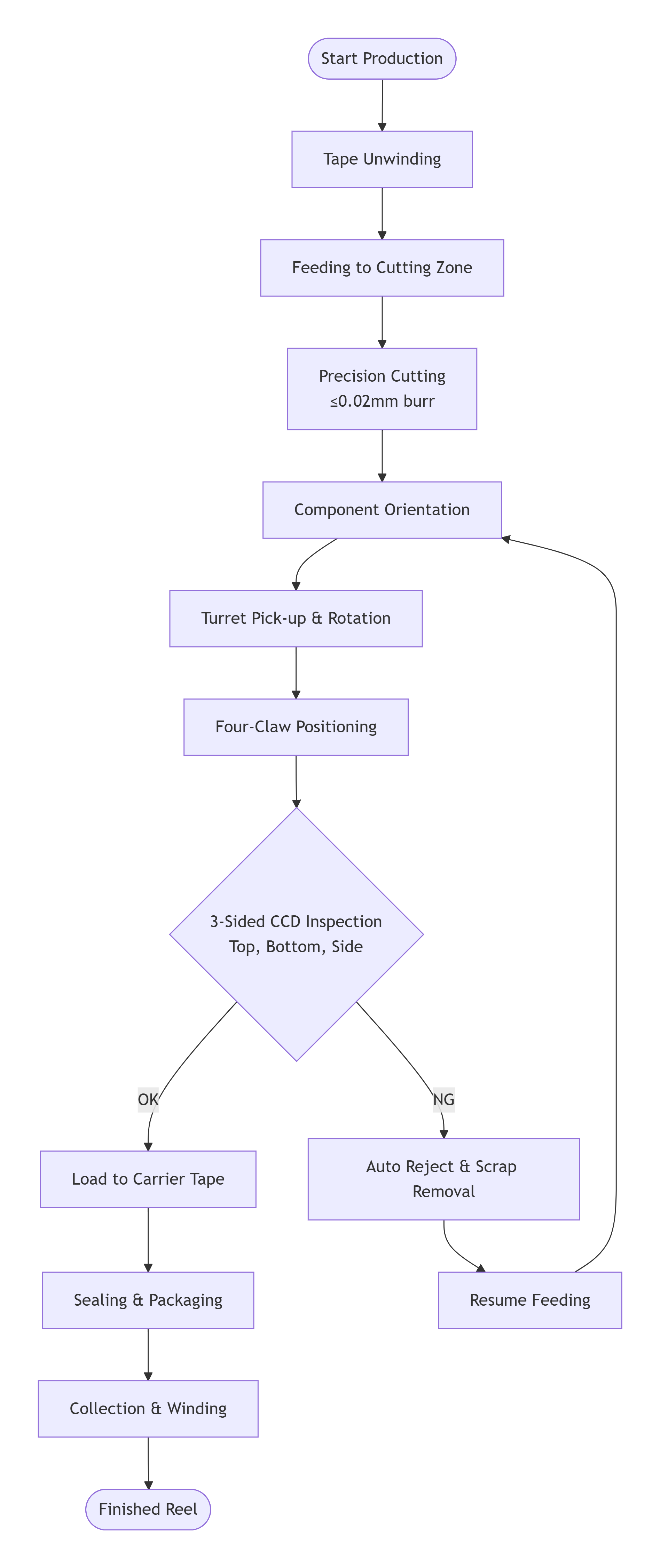

Work Flow:
