Non-Destructive Nickel Sheet Packaging Solution: From Vibration Feeding To Reel

A Smart Solution for Modern Manufacturing Challenges

In today's competitive electronics manufacturing landscape, packaging precision and speed are no longer optional—they're essential. Our Flexible Vibration Tape & Reel Packaging Machine represents the next generation of automated packaging technology, designed specifically to address the complex demands of semiconductor, SMT, and precision component production. This machine isn't just another piece of equipment; it's a complete tape and reel packaging solution that integrates intelligent vision systems, flexible handling, and reliable sealing into one streamlined workflow.

How Our Flexible Vibration System Transforms Packaging Operations

At the heart of this system lies an innovative flexible vibration feeding mechanism that gently orients and delivers components with remarkable consistency. Unlike traditional rigid systems, our approach accommodates a wide variety of component shapes and sizes, making it truly versatile for multiple product models without extensive retooling. The process begins with components being loaded into the supply hopper, where they're transported via a linear vibratory track to the flexible vibration bowl's storage area. This gentle handling preserves component integrity while maintaining optimal feeding rates.

Simultaneously, empty carrier tape is precisely fed through the guide rail system, driven by a servo-controlled sprocket wheel that ensures perfect alignment and tension control throughout the packaging process.

◇ Equipment Process Flow Description:

1. Loose products to be packaged are poured into the supply hopper and conveyed via a linear vibratory track to the flexible vibration bowl's storage area.

2. Empty carrier tape is fed through the tape guide rail, driven forward by a sprocket wheel powered by the rail's tape feeding motor.

3. The spider hand identifies the product via the upper camera, then uses its suction nozzle to pick up the product.

4. The lower camera performs flying vision to read the product's displacement. After position correction, the spider hand places the product into the rail's filling position.

5. After filling, the tape is driven by the sprocket wheel to the finished product inspection position. Inspection results are displayed on the monitor, with defective products triggering an alarm.

6. After product filling, the tape is driven forward by the sprocket wheel. Simultaneously, the film feeding mechanism delivers sealing film to the sealing position for hot knife sealing.

7. The sealed carrier tape is taken up by the take-up motor.

Applications Across Industries

This versatile system excels in numerous applications:

• Semiconductor packaging for ICs, transistors, and diodes

• SMT component preparation including resistors, capacitors, and connectors

• Precision mechanical parts such as shielding covers and small metal stampings

• Automotive electronics where reliability standards are exceptionally high

• Medical device components requiring clean, static-safe packaging environments

Description

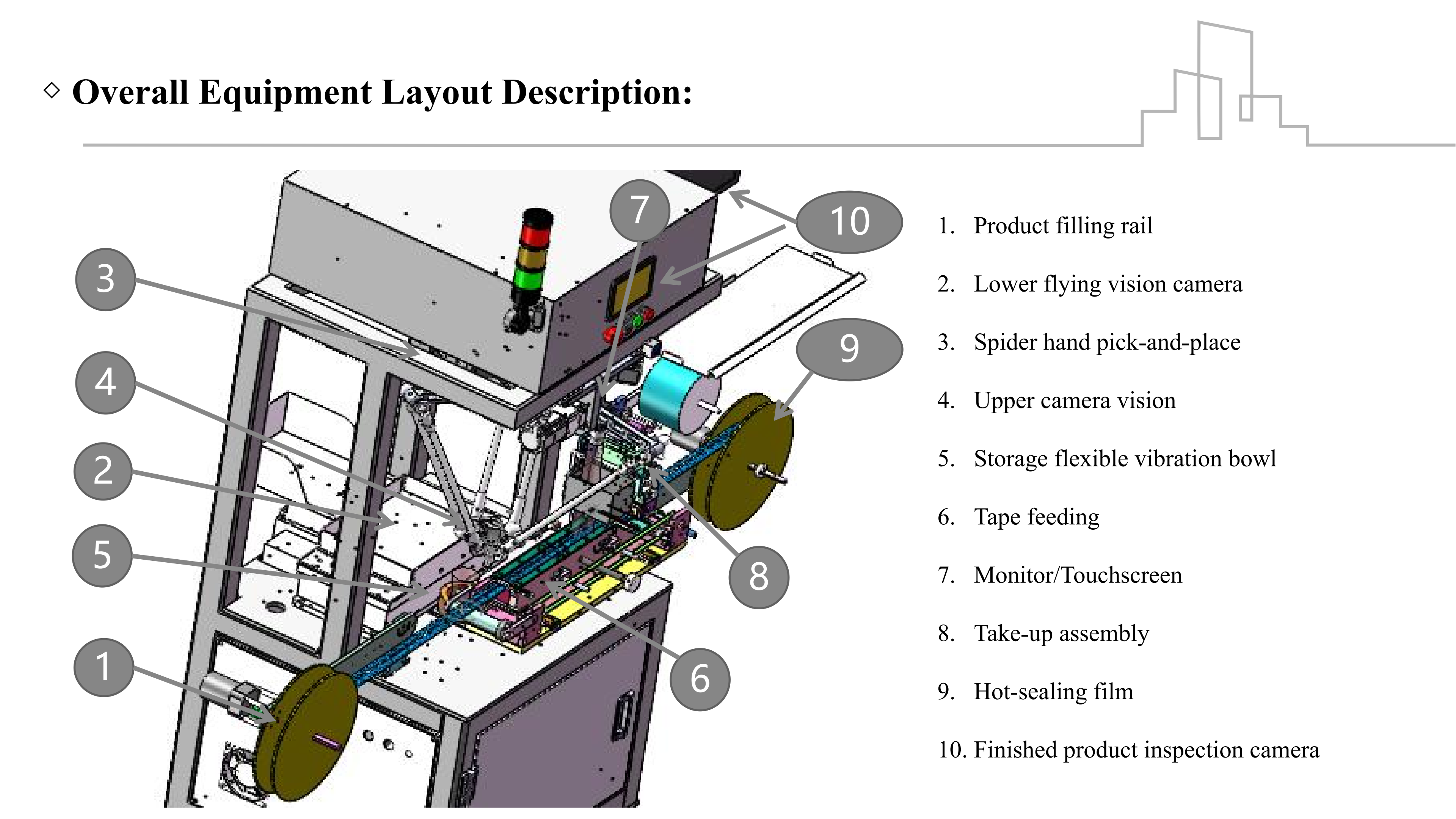

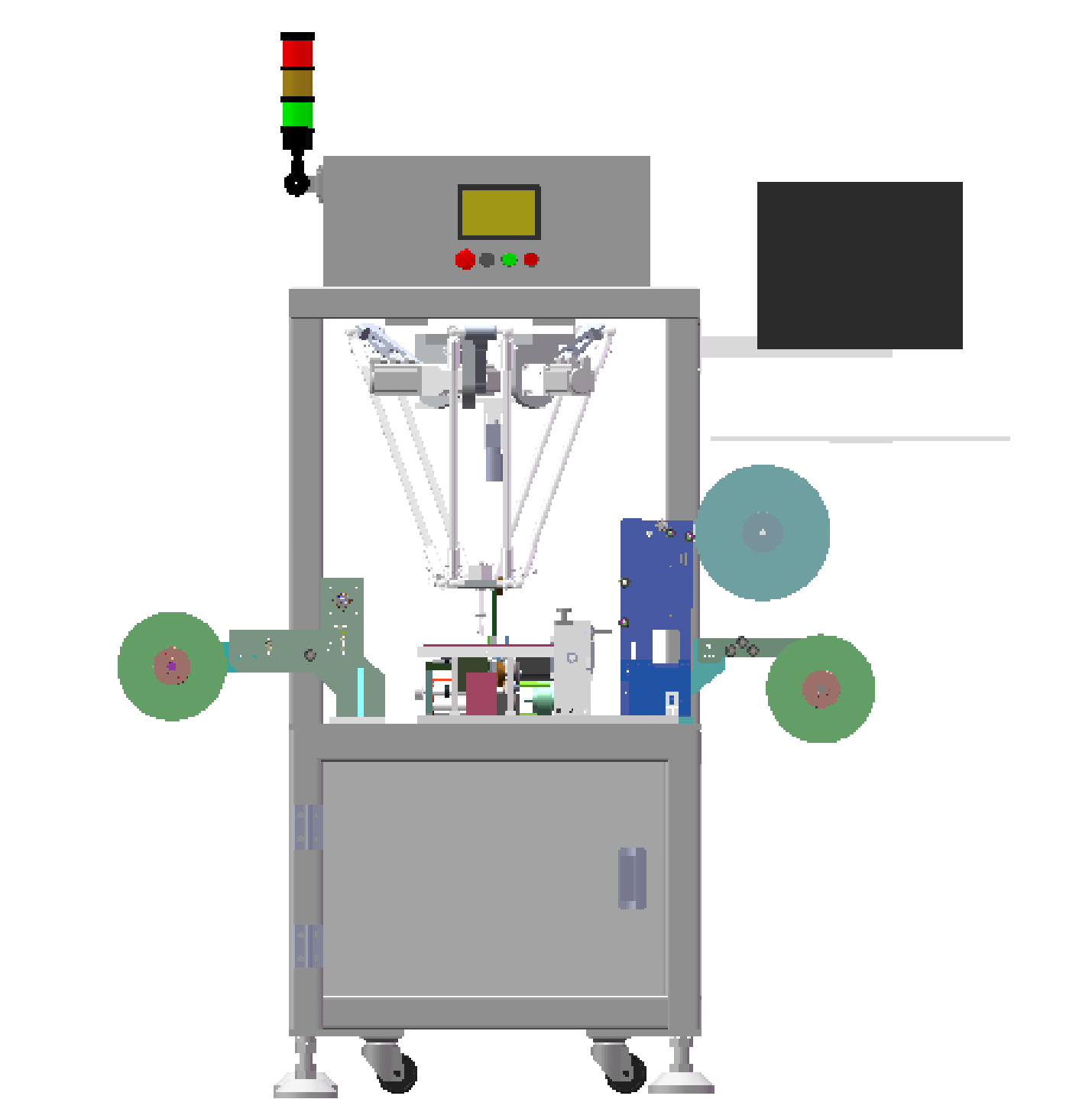

Layout

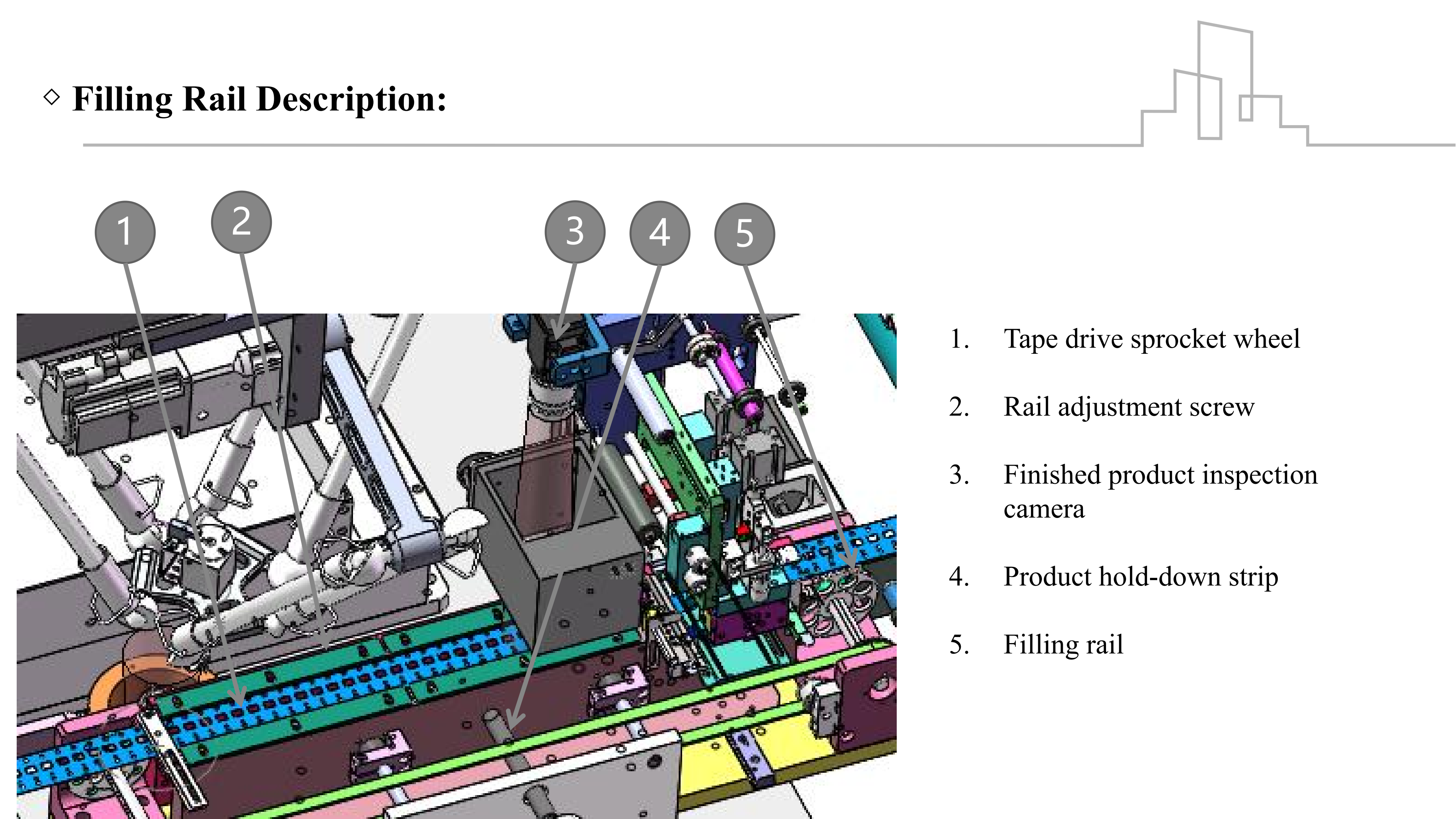

Filling Rail

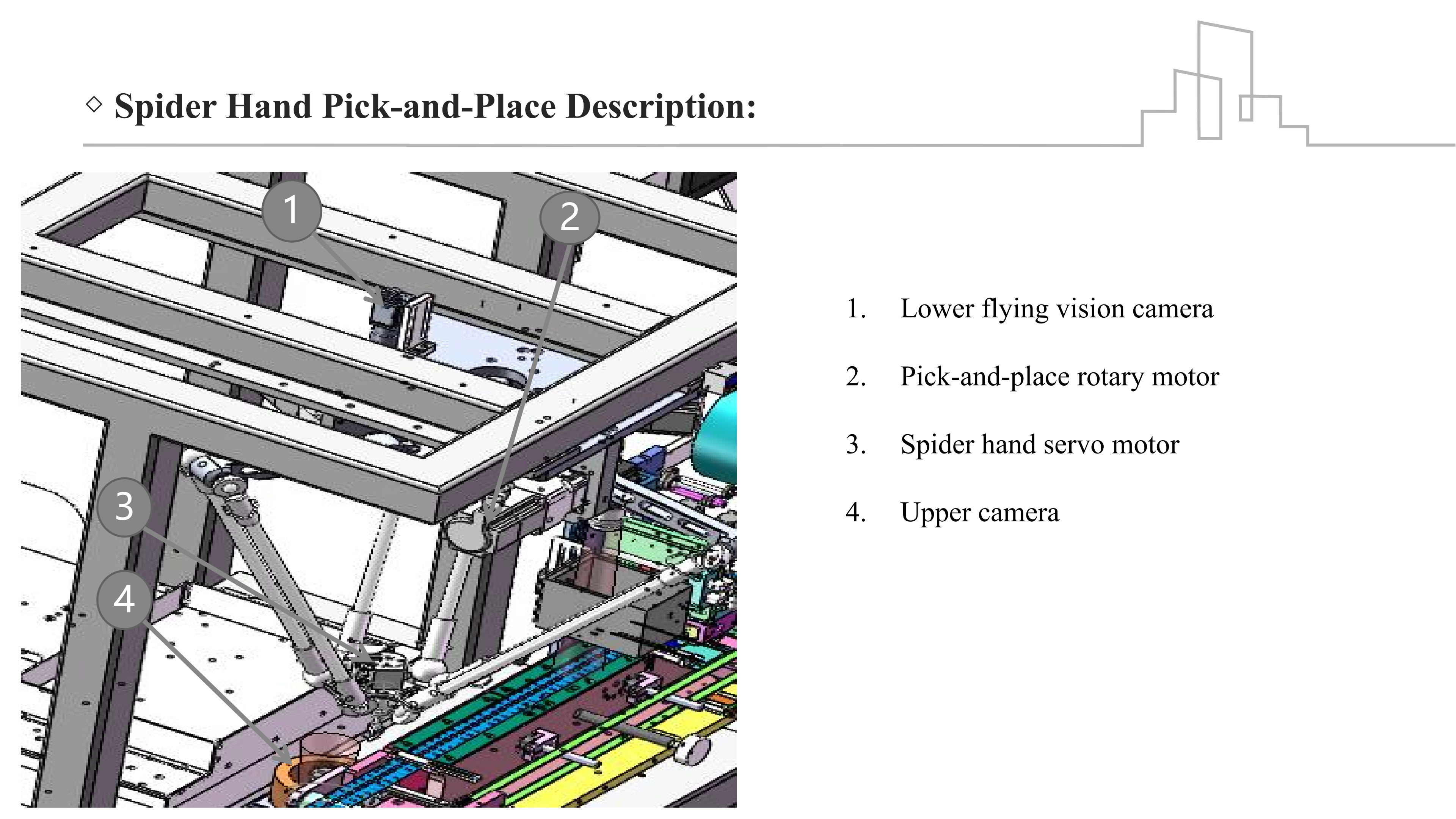

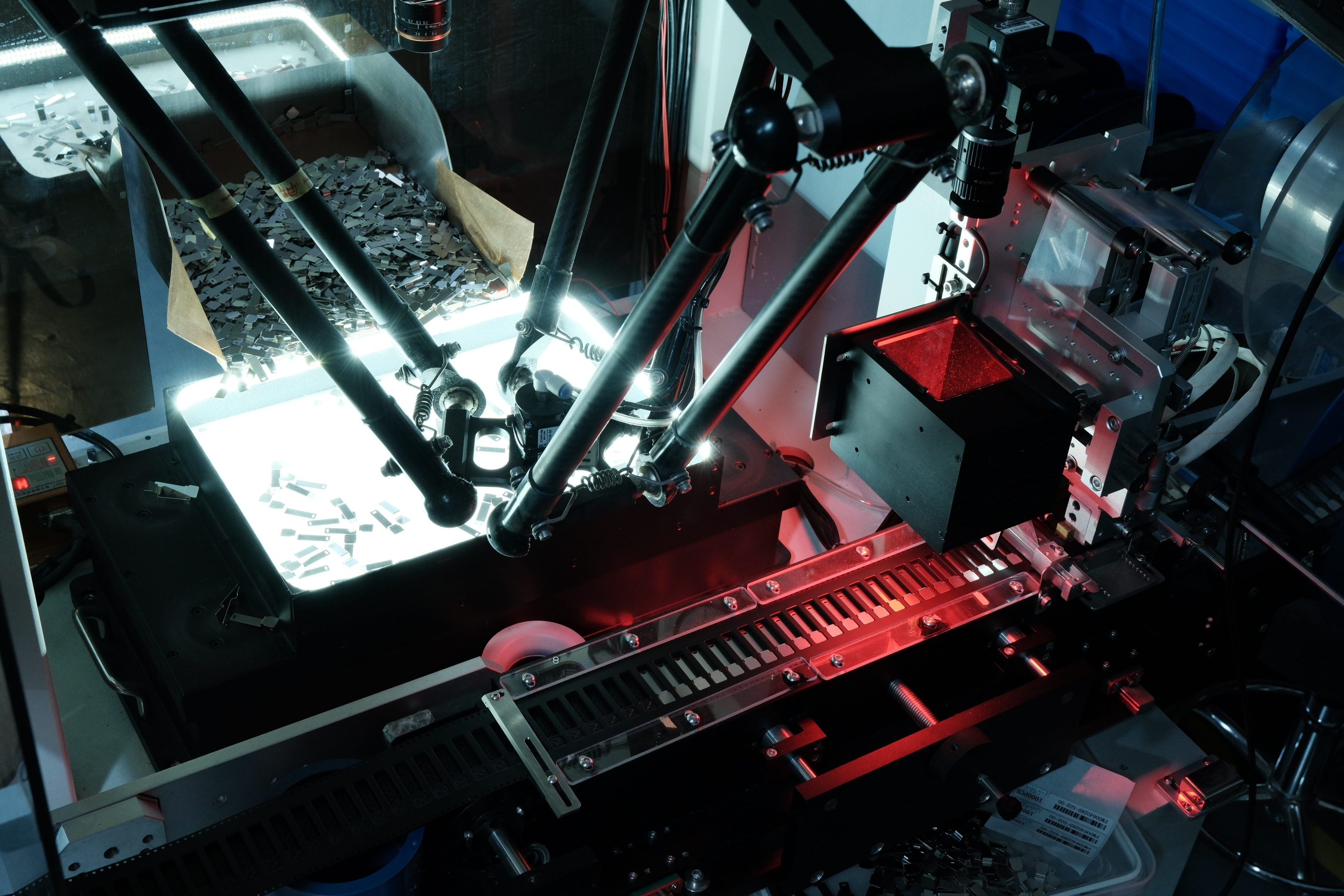

Spider Hand Pick and Place

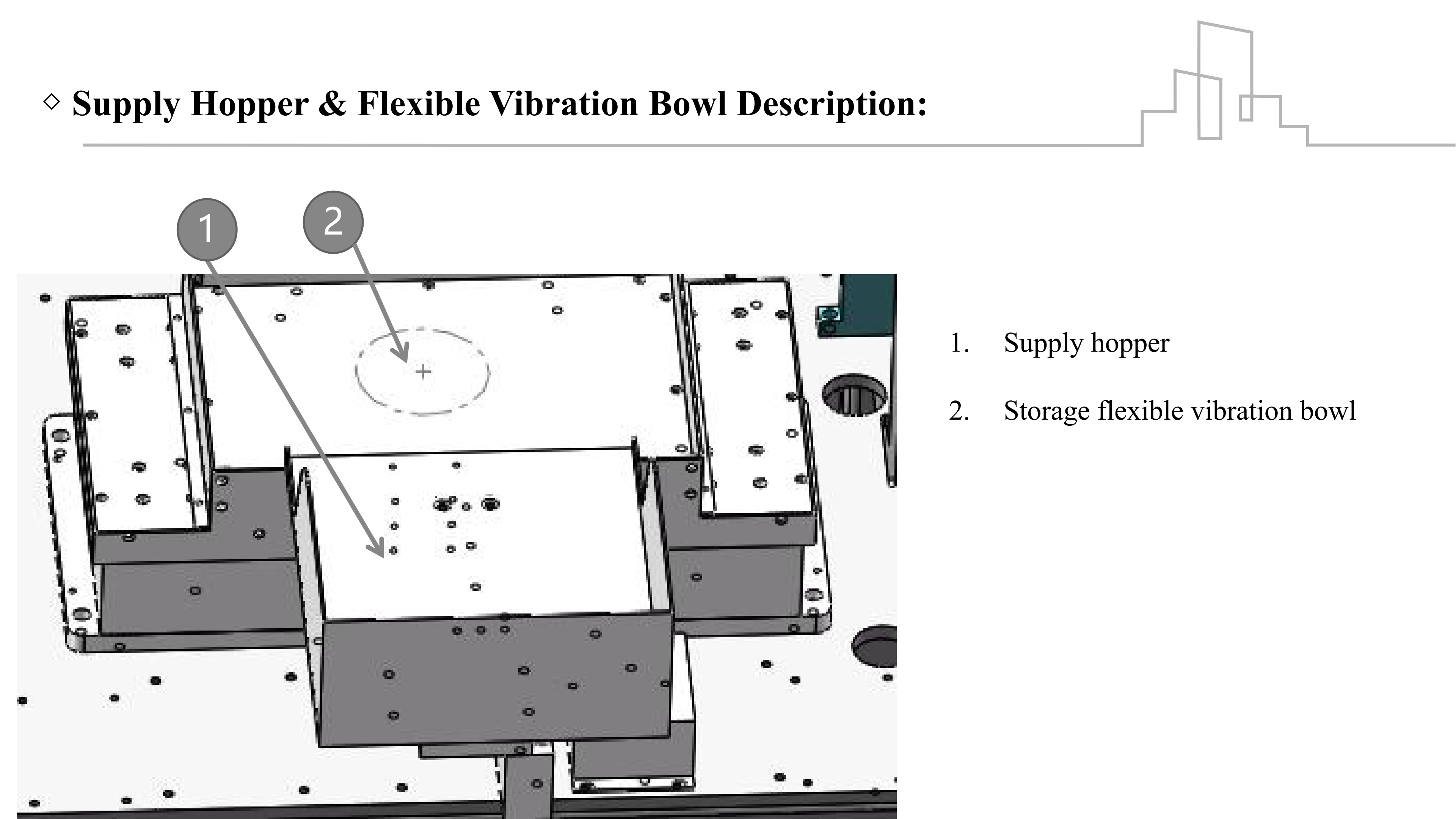

Supply Hopper and Flexible Vibration Bowl
