Elevate Your Quality Control with Automated Precision Measurement
In precision manufacturing, every micron matters. Manual measurement processes are not only time-consuming but also prone to human error, leading to inconsistencies that can affect product performance and customer satisfaction. Our Size & Flatness Measuring Machine provides a sophisticated automated solution that eliminates these challenges, delivering consistent, reliable dimensional and flatness measurements with an accuracy of ±0.05mm. This advanced system represents a significant leap in automated dimensional inspection technology, enabling manufacturers to maintain strict quality standards while optimizing production efficiency.
How Our Automated Measurement System Works
The operation of our measuring machine is designed for simplicity and reliability. The process begins when an operator places the product onto the measuring table from the right side. With a simple press of the start button, the system springs into action. Two sets of cylinders in the XY direction rise and extend to precisely position the component for measurement. This automated positioning mechanism ensures consistent alignment for every measurement cycle, eliminating variations that can occur with manual placement. Displacement sensors then perform dimensional measurements while a specialized flatness detector evaluates surface uniformity. After completing the measurements, the positioning system automatically retracts, and the results are clearly displayed on the integrated monitor. The operator simply removes the product, and the system is ready for the next measurement cycle.

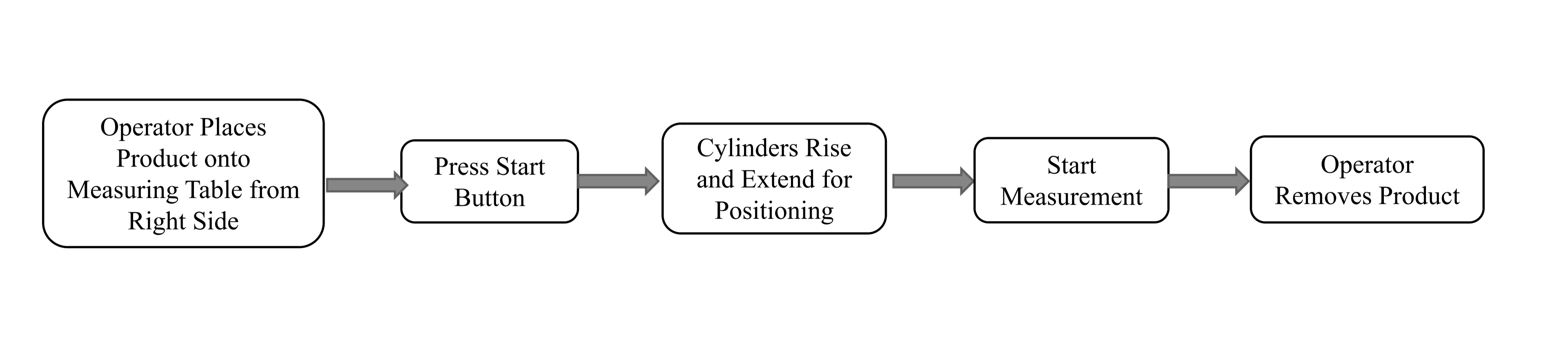

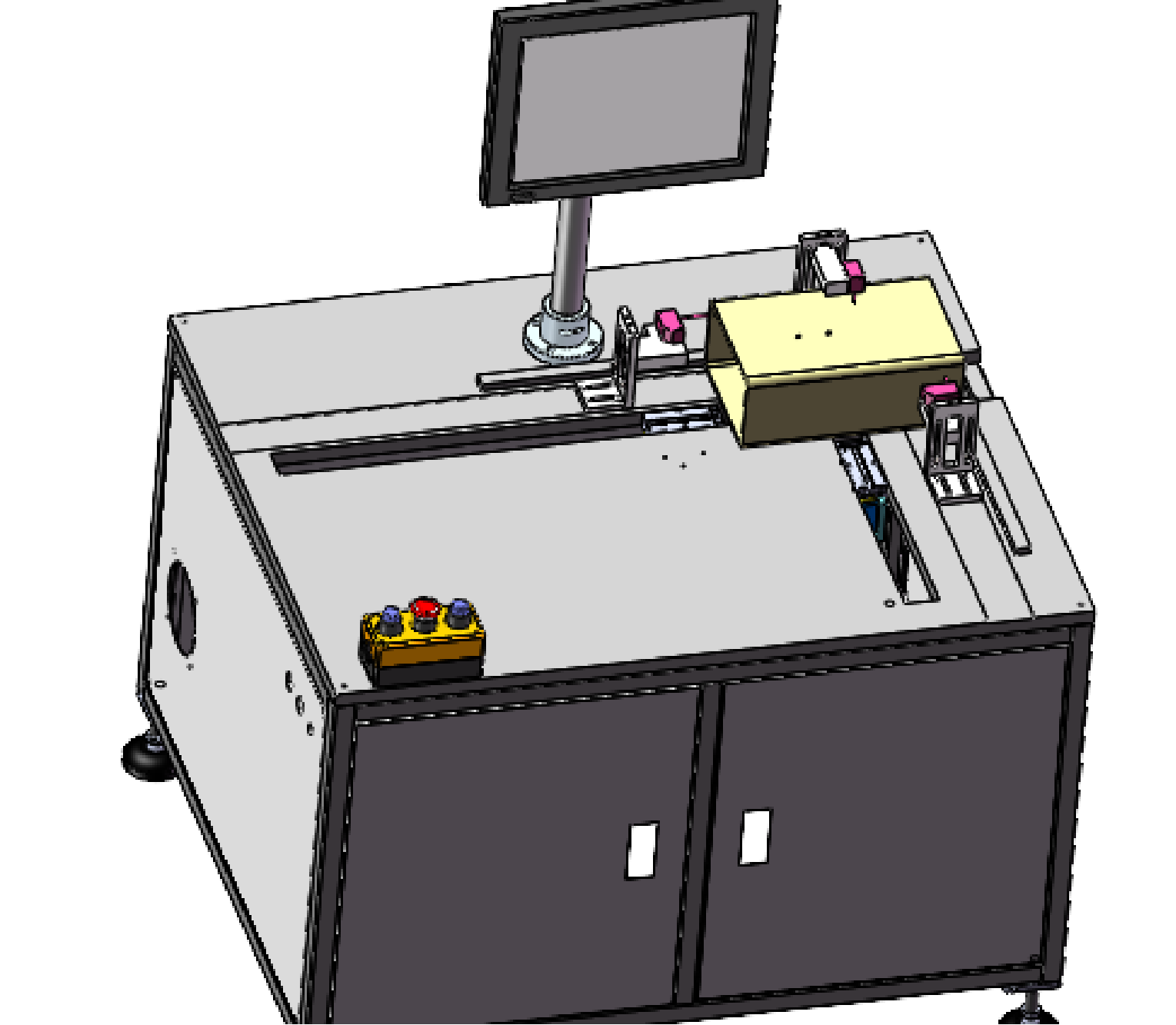

Equipment Process Flow Description Action Flow:
1. Operator places the product onto the measuring table from the right side.
2. Press the start button on the left side of the table.

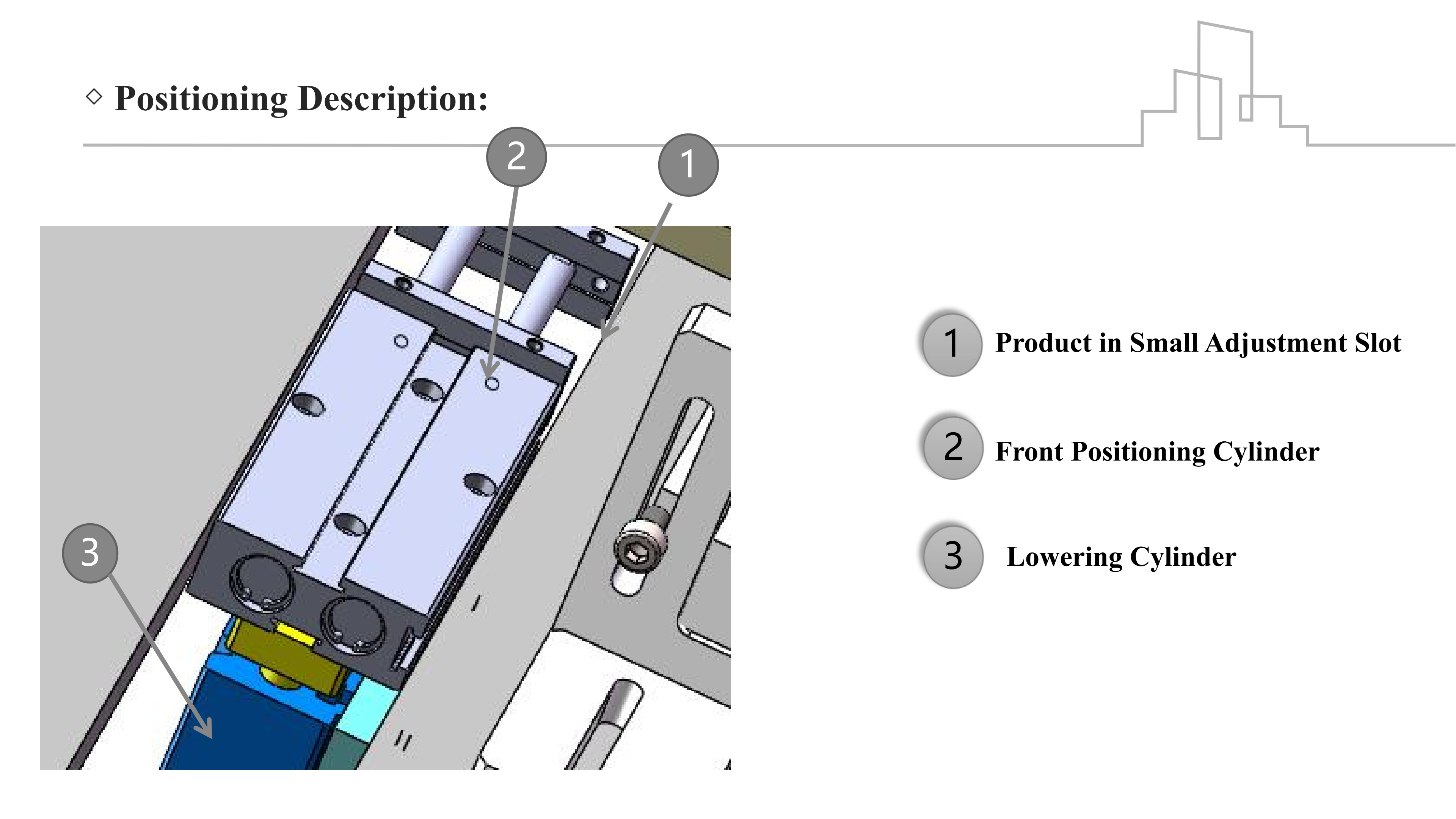

Two sets of cylinders in the XY direction rise and extend for positioning.
Flatness and length measurements begin.
After measurement, positioning automatically retracts and lowers. Data is displayed on the monitor.
3. Operator removes the product.
Advanced Measurement Technology for Uncompromising Accuracy

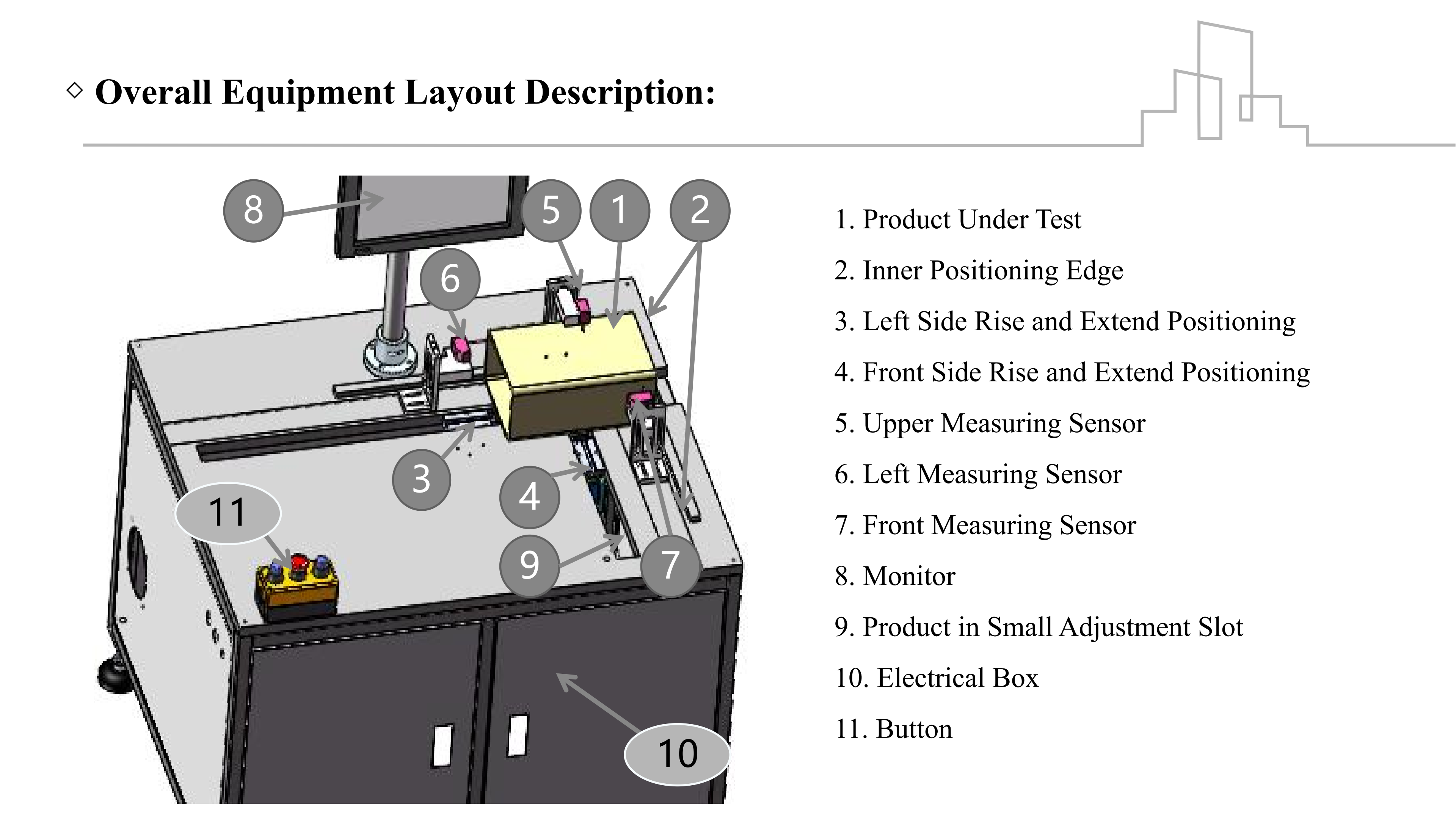

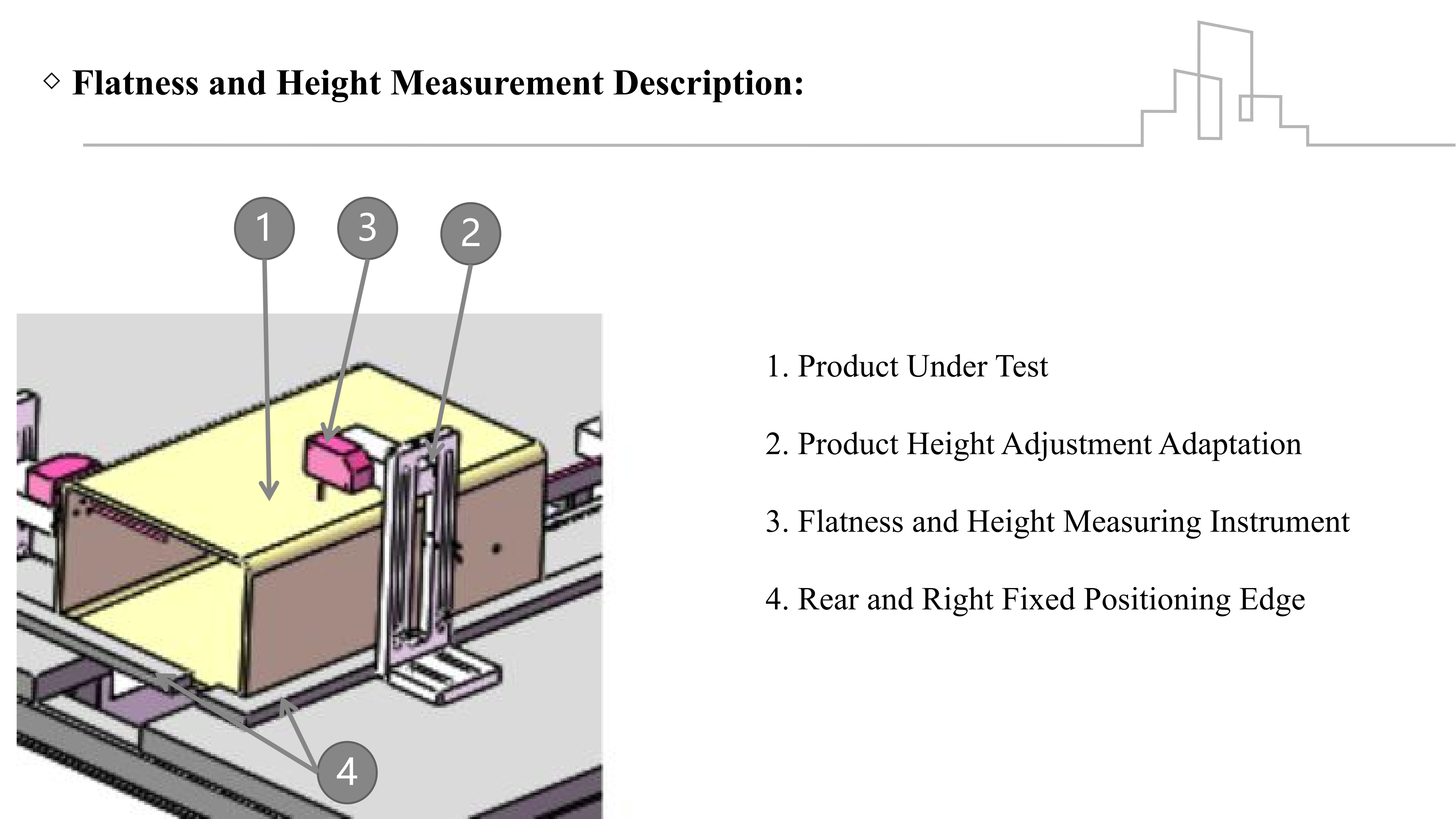

At the heart of our system lies sophisticated measurement technology that delivers exceptional precision. The machine employs multiple displacement sensors positioned strategically around the measurement area—upper, left, and front sensors work in concert to capture comprehensive dimensional data. Meanwhile, the specialized flatness measuring instrument evaluates surface variations with remarkable sensitivity. This multi-sensor measurement approach provides complete dimensional profiling, capturing not just basic measurements but also subtle variations that might indicate manufacturing issues. The system's 0.05mm accuracy represents a level of precision that significantly exceeds what can be reliably achieved through manual measurement methods.
Technical Excellence in Measurement Innovation

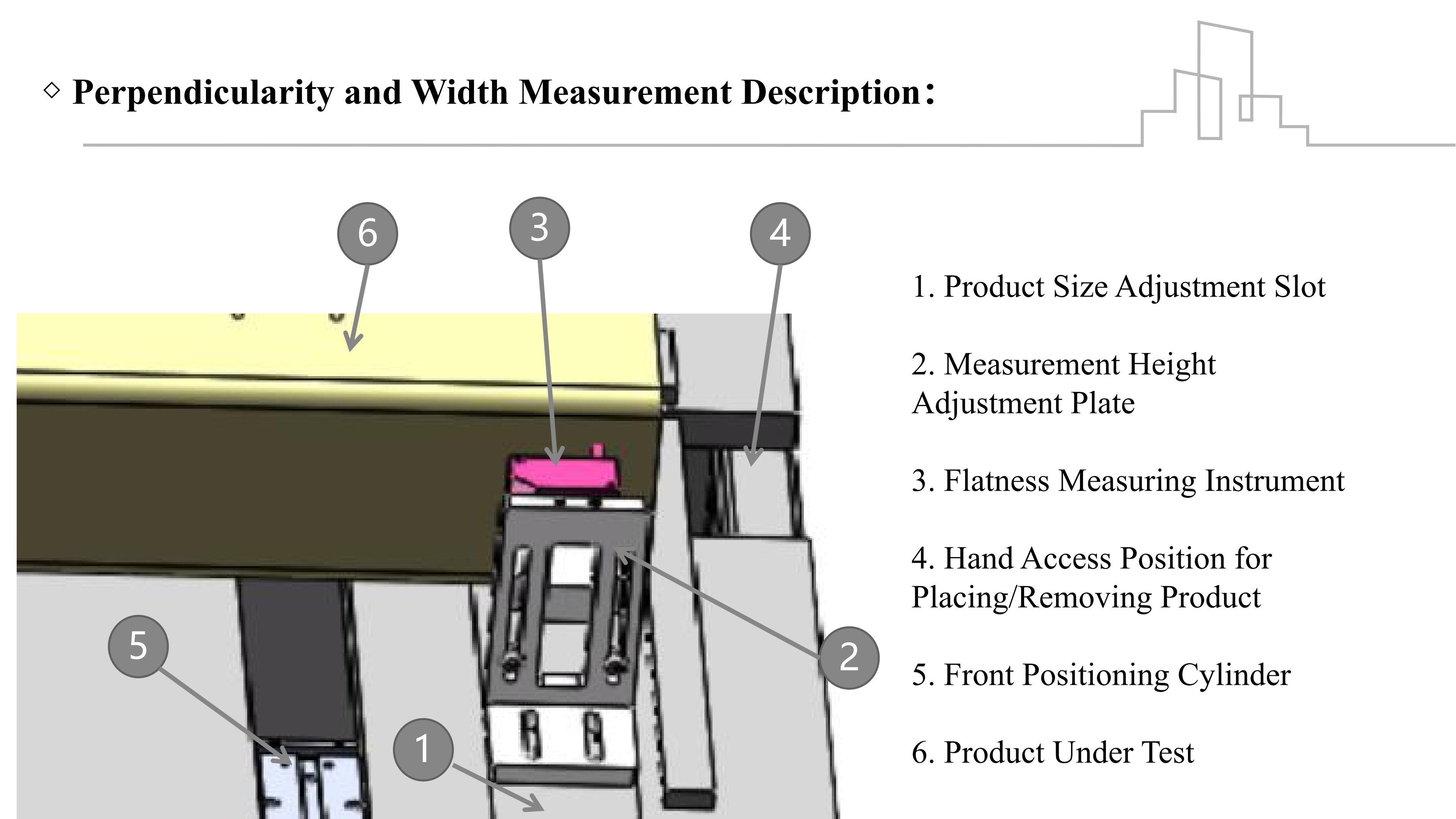

Beyond its core measurement capabilities, our system incorporates advanced features that enhance its value. The cylinder-based positioning system provides both precision and reliability, while the modular sensor arrangement allows for customization based on specific measurement requirements. The system's design facilitates easy calibration and maintenance, ensuring long-term accuracy and minimizing downtime. These technical refinements make the machine not just a measurement tool, but a comprehensive quality assurance solution for precision manufacturing.
