This automatic tape packaging machine uses a turret type rotary system with micro film reel feeding. It integrates flyer peeling, 8-station turret indexing, multi-camera inspection, overlap detection, and heat sealing into one system.

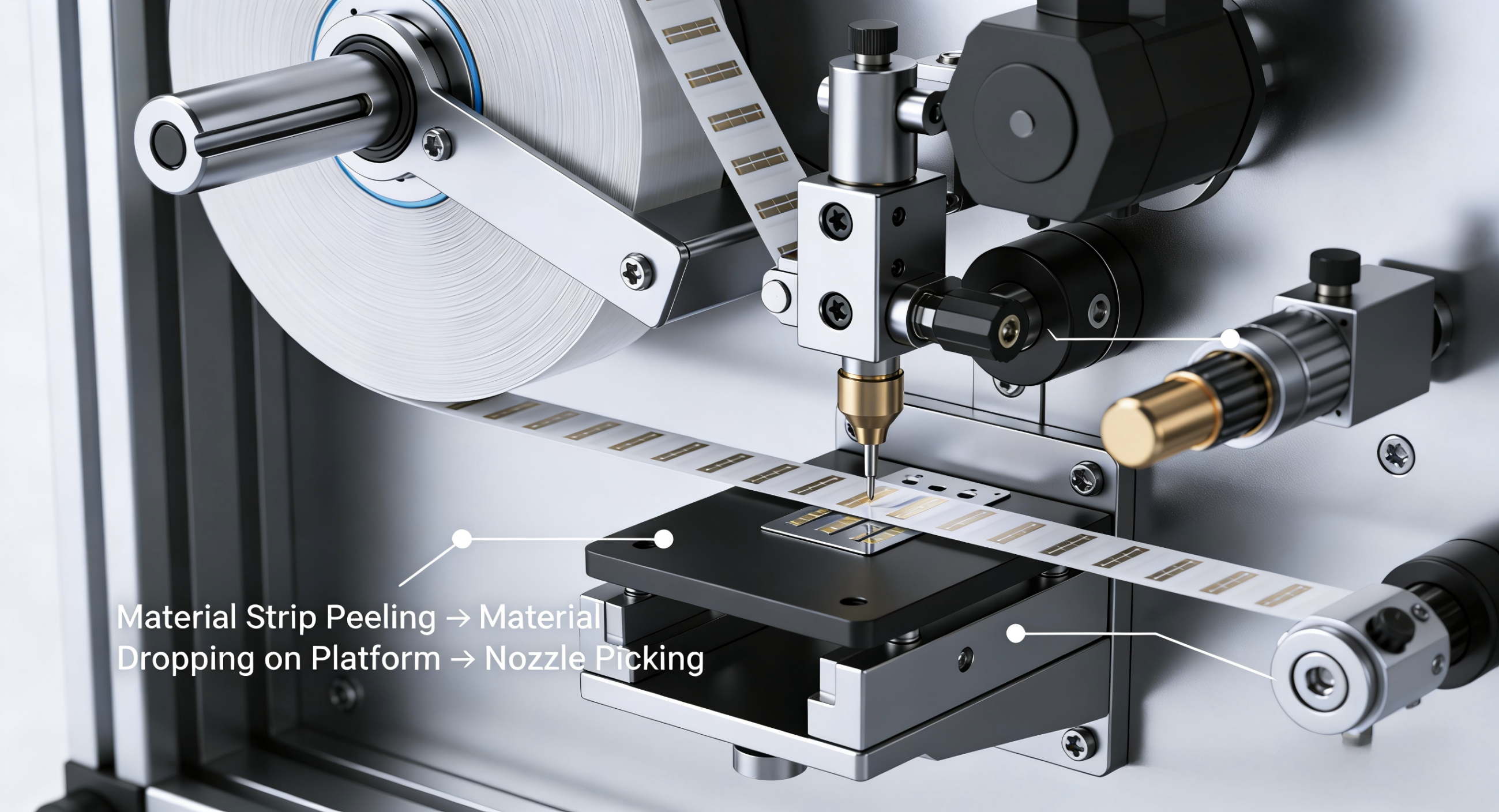

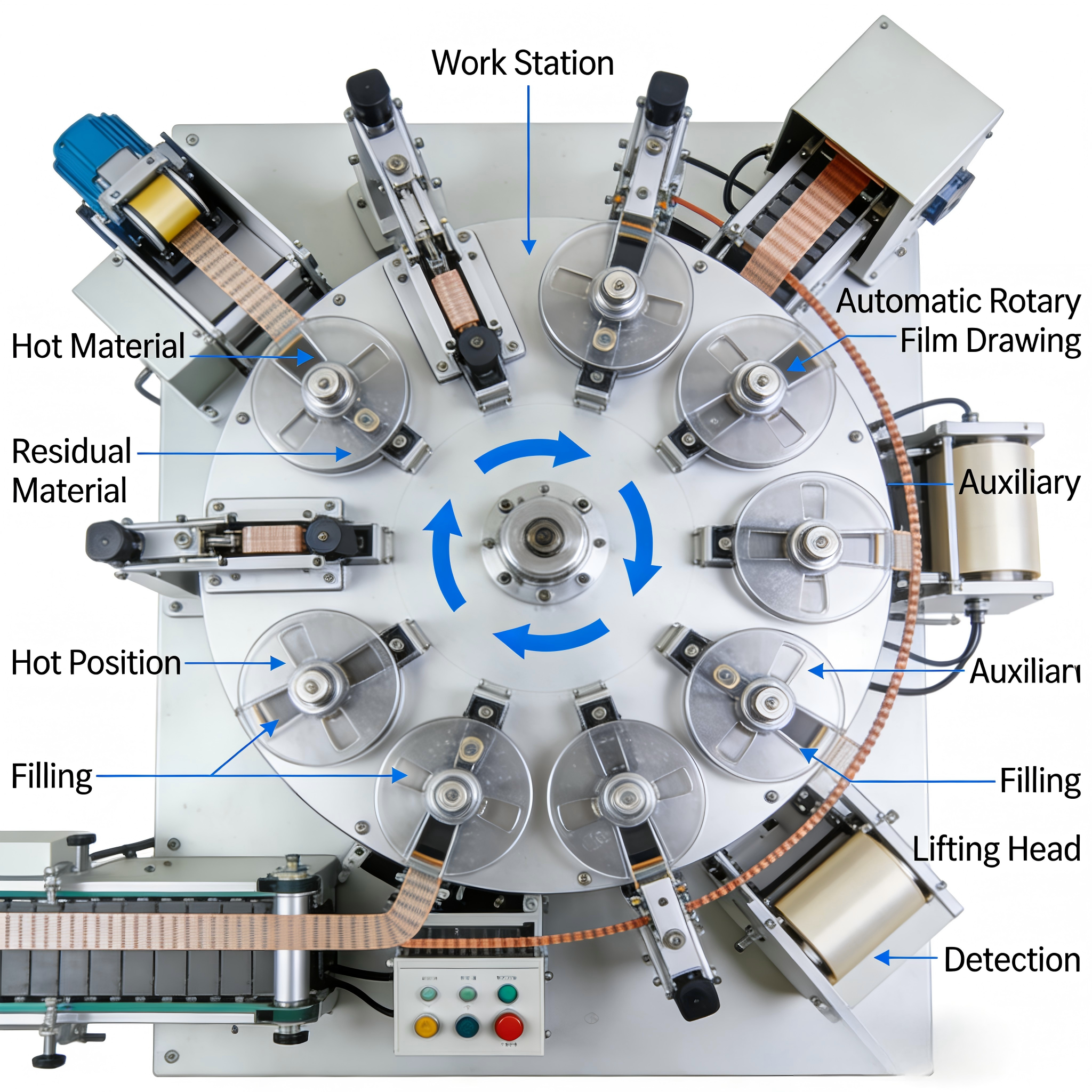

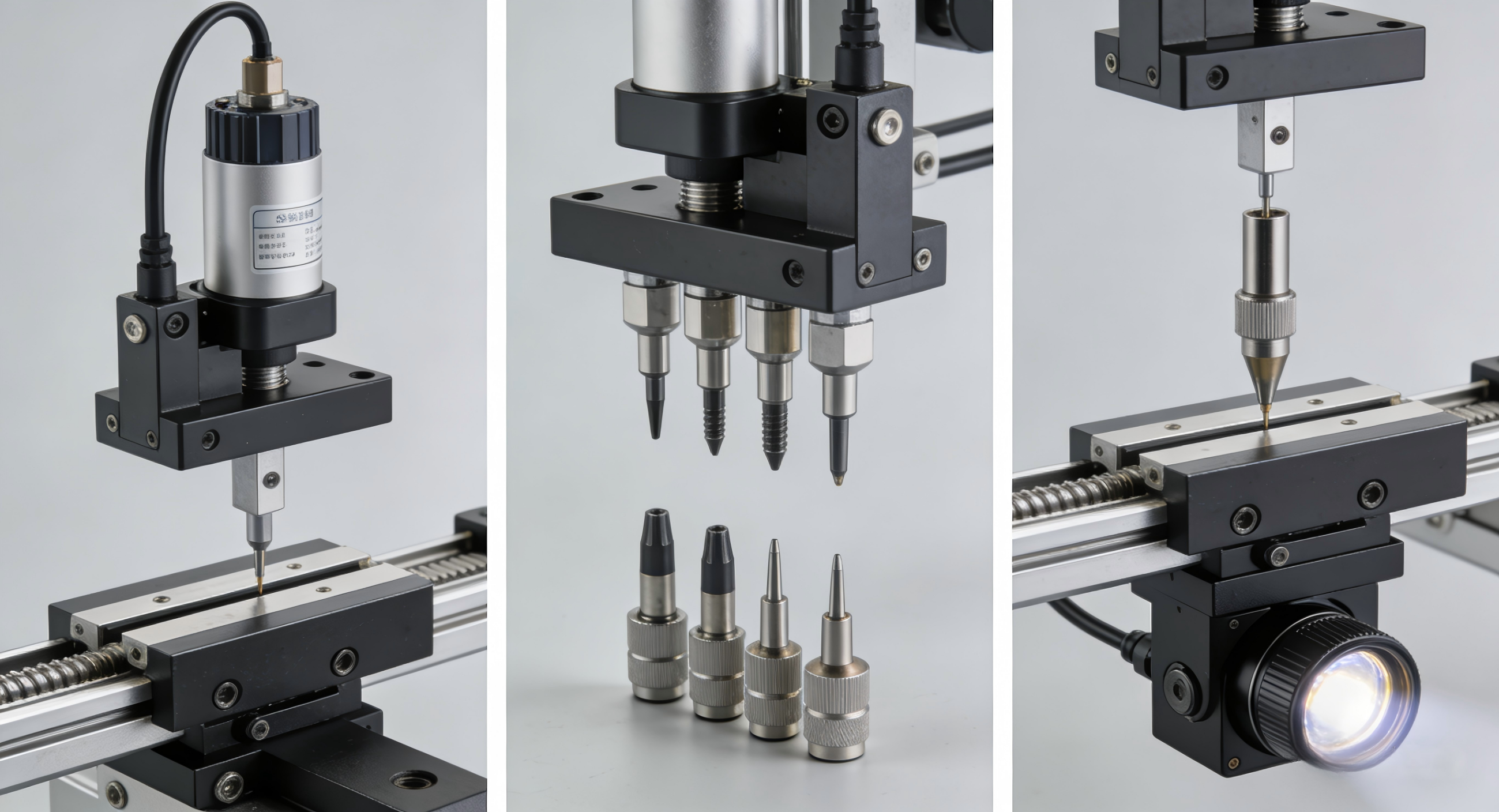

The machine is designed for micro film reel components. Parts are fed from a micro film reel through a flyer peeling mechanism onto a pickup platform. A turret with 8 stations rotates the part through positioning, bottom CCD inspection, empty pocket detection, and placement into carrier tape. Optional side camera can inspect flatness. Overlap sensor detects double parts and stops the machine. Ion fan removes static.
| Step | Process | Description |
|---|---|---|
| 1 | Micro film feeding | Reel feeds into flyer peeling mechanism |
| 2 | Part pickup | Parts peeled onto platform, picked by turret nozzle |
| 3 | Positioning | Turret rotates part to positioning station |
| 4 | Bottom CCD inspection | Camera inspects part underside |
| 5 | Empty pocket detection | Fiber sensor checks for missing parts |

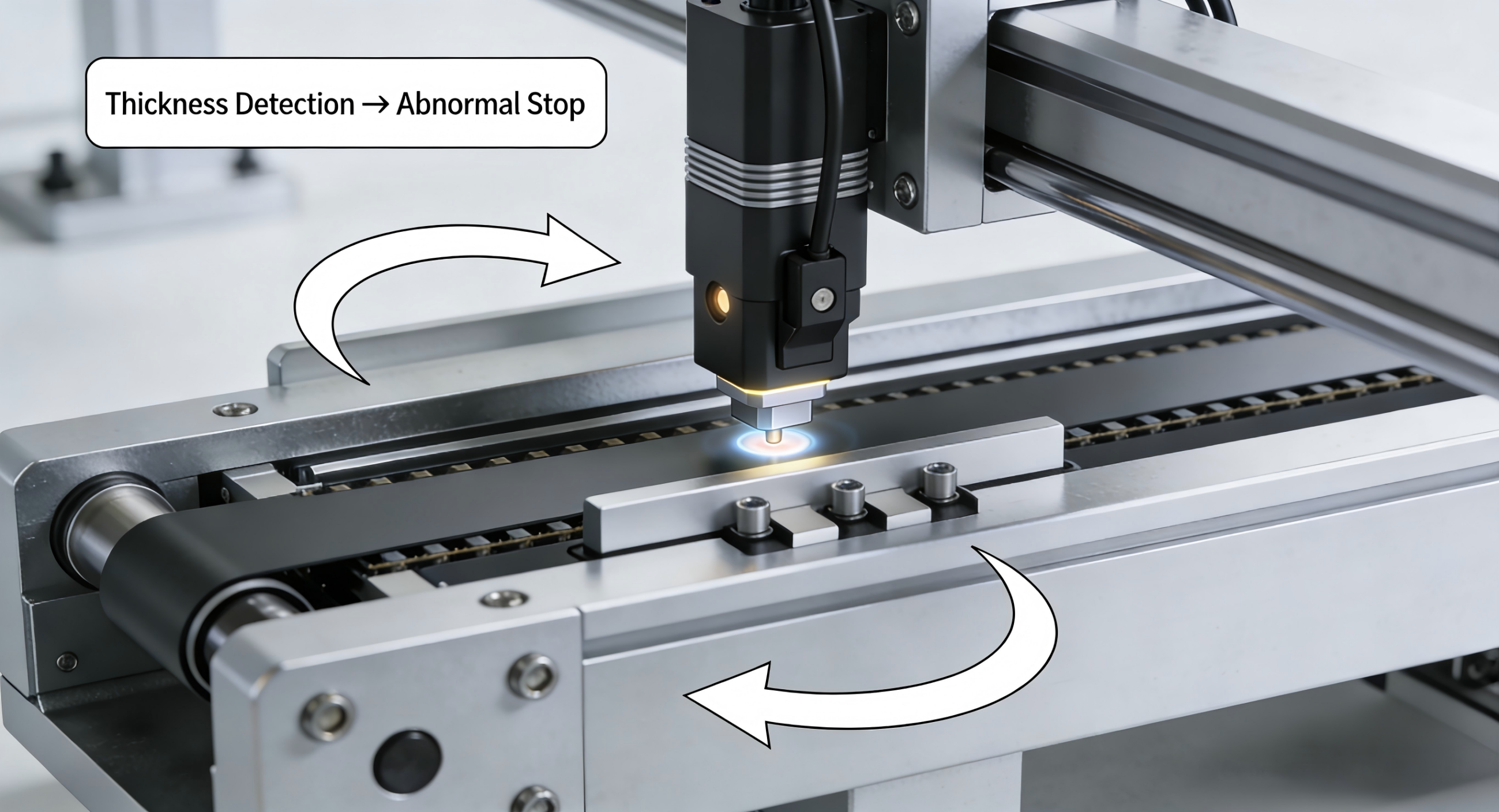

| 6 | Overlap detection | Sensor checks for double parts (stops if detected) |
| 7 | Carrier tape loading | Part placed into tape cavity |
| 8 | Heat sealing | Cover tape sealed with adjustable seal knives |
| 9 | Rewinding | Finished reel automatically wound |
| Parameter | Specification |
|---|---|
| Feeding method | Micro film reel + flyer peeling |
| Pick & place | Turret type (8 stations) |
| Part type | Micro film reel components |
| Vision system | Top camera + bottom CCD + optional side camera |
| Inspection functions | Underside inspection, empty pocket, overlap, flatness (optional) |
| Overlap detection | Sensor with停机 alarm + HMI feedback |
| Static removal | Ion fan |
| Seal knives | Adjustable (no replacement needed for changeover) |
| Machine mode | Inline + standalone switchable |
This machine is designed for micro film reel components that need precise packaging. It is ideal for:
Micro film reel components
High-precision electronics
Production lines requiring inline/standalone switching
| Benefit | Description |
|---|---|
| Rotary efficiency | 8-station turret for smooth indexing |
| Reliable feeding | Flyer peeling from micro film reel |
| Comprehensive inspection | Bottom CCD + empty pocket + overlap + optional side camera |
| Static control | Ion fan prevents static issues |
| Fast changeover | Adjustable seal knives without replacement |
| Flexible setup | Inline or standalone operation |
