Solution: Integrated Stamping and Packaging for High-Volume Production
In precision metal stamping operations, the separation between forming and packaging creates inefficiencies—additional handling, increased labor, potential for damage, and quality gaps between processes. Our Dual-Lane Punch-and-Tape Integrated Machine eliminates these disconnects by combining high-force stamping, automated part transfer, and dual-carrier tape packaging into a single, synchronized system. Designed for manufacturers of connectors, terminals, shielding covers, and precision stamped components, this solution delivers continuous production from raw material to finished, packaged reels with minimal human intervention.
How It Works: Seamless Integration from Steel Strip to Finished Reel
The system orchestrates a fully automated workflow that transforms incoming steel strip into inspected, sealed carrier tape ready for shipment or downstream assembly:

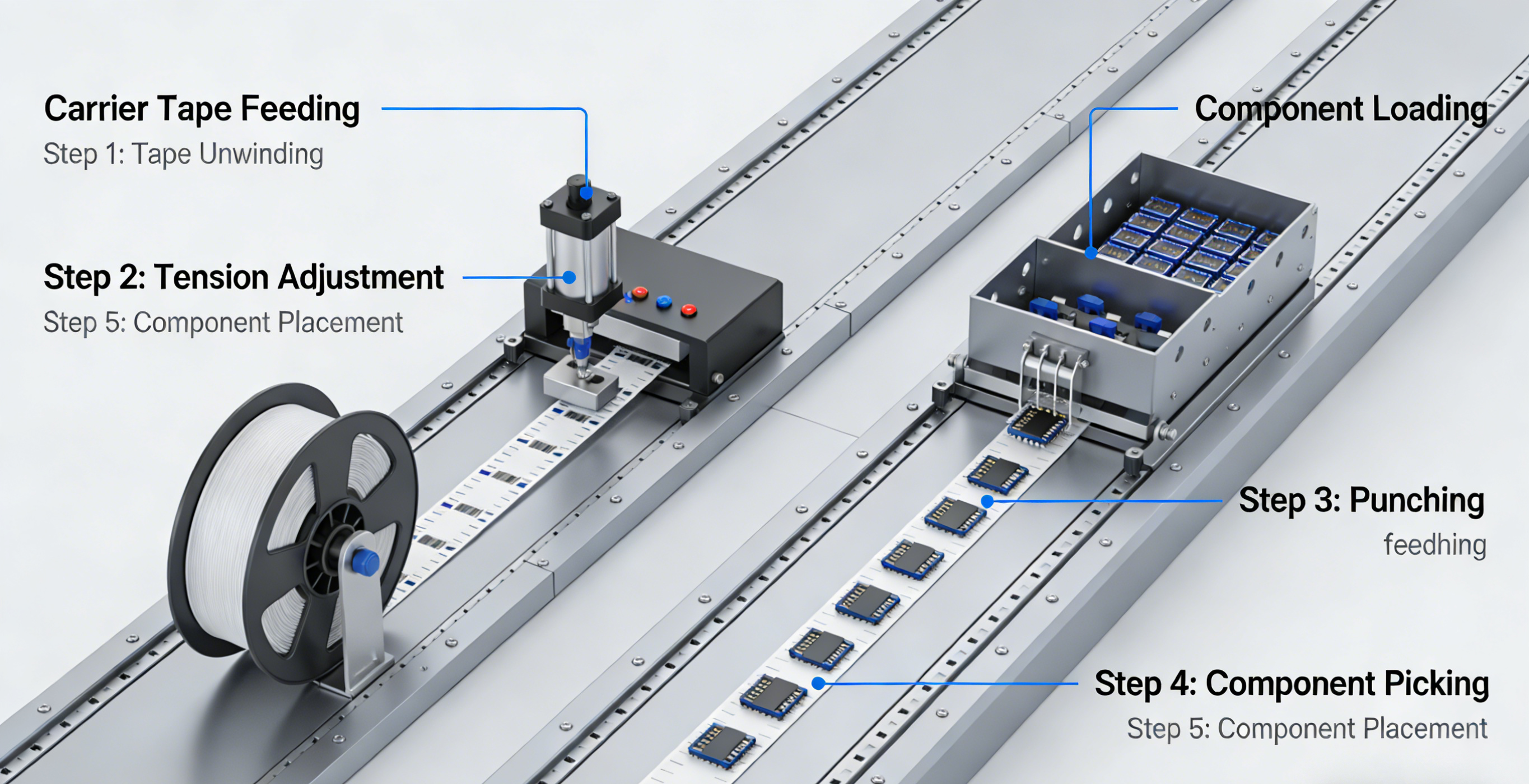

1. Material Feeding & Stamping
Raw steel strip is precisely fed by a servo-driven mechanism into the stamping die area at set step increments. The 10-ton punching press performs high-speed stamping operations at up to 3000 strokes per hour, producing precision components with consistent quality. After stamping, waste scrap is automatically cut and separated by a synchronized shear mechanism, while formed parts are directed toward the transfer zone.
2. Carrier Tape Feeding & Component Loading
Simultaneously, two empty carrier tapes are fed from separate supply mechanisms. Each tape is precisely guided through the lower die area, positioned to receive stamped components directly as they exit the punch. This direct transfer method eliminates intermediate handling and ensures exact placement alignment.
3. Multi-Stage Inspection

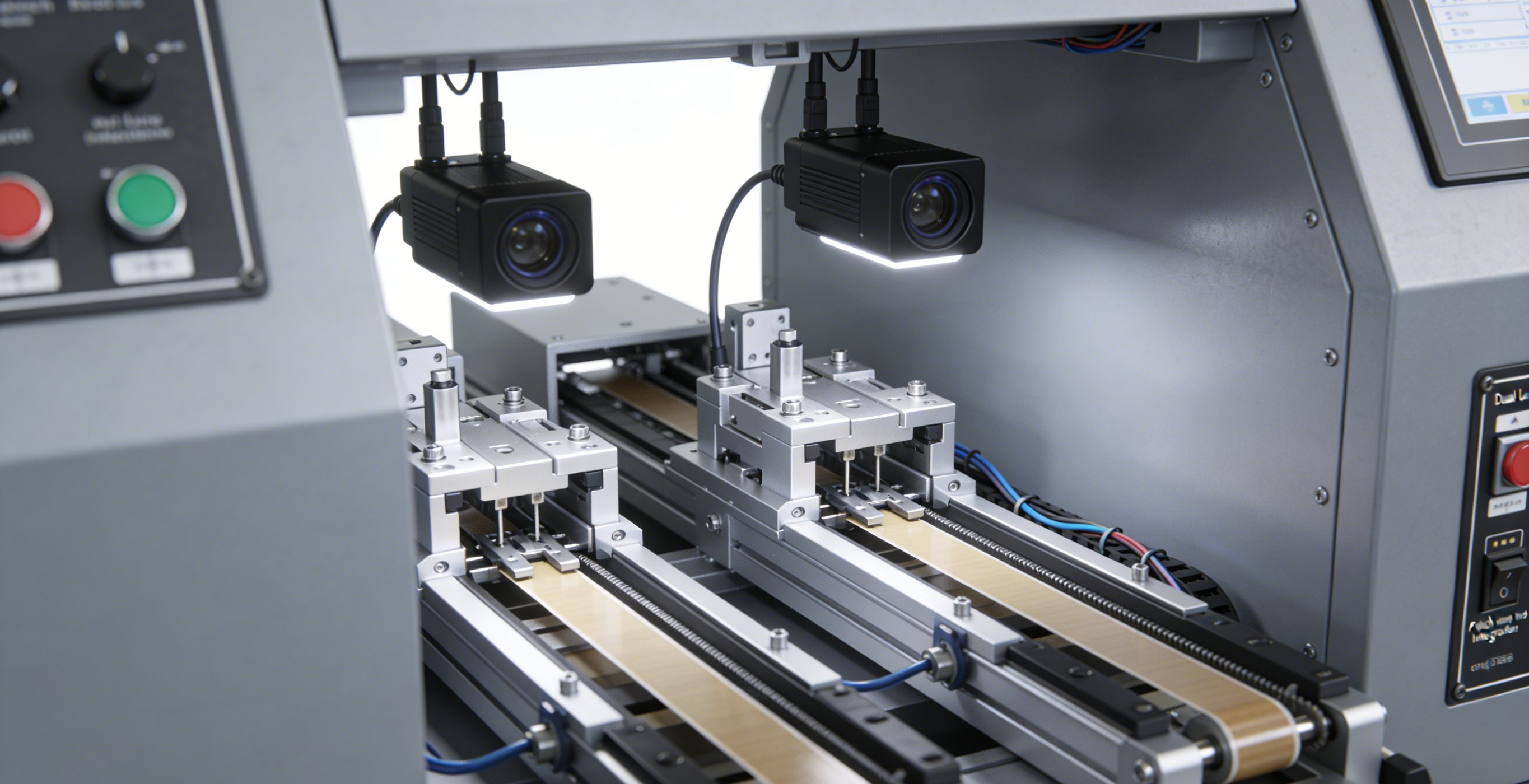

After loading, carrier tapes advance to the CCD inspection station. An overhead camera system examines each pocket for component presence, orientation, and placement accuracy. Real-time images and inspection results are displayed on the central monitor and can be transmitted to factory management systems. An integrated overlap detection sensor verifies that no pocket contains multiple components, preventing packaging defects.
4. Heat Sealing

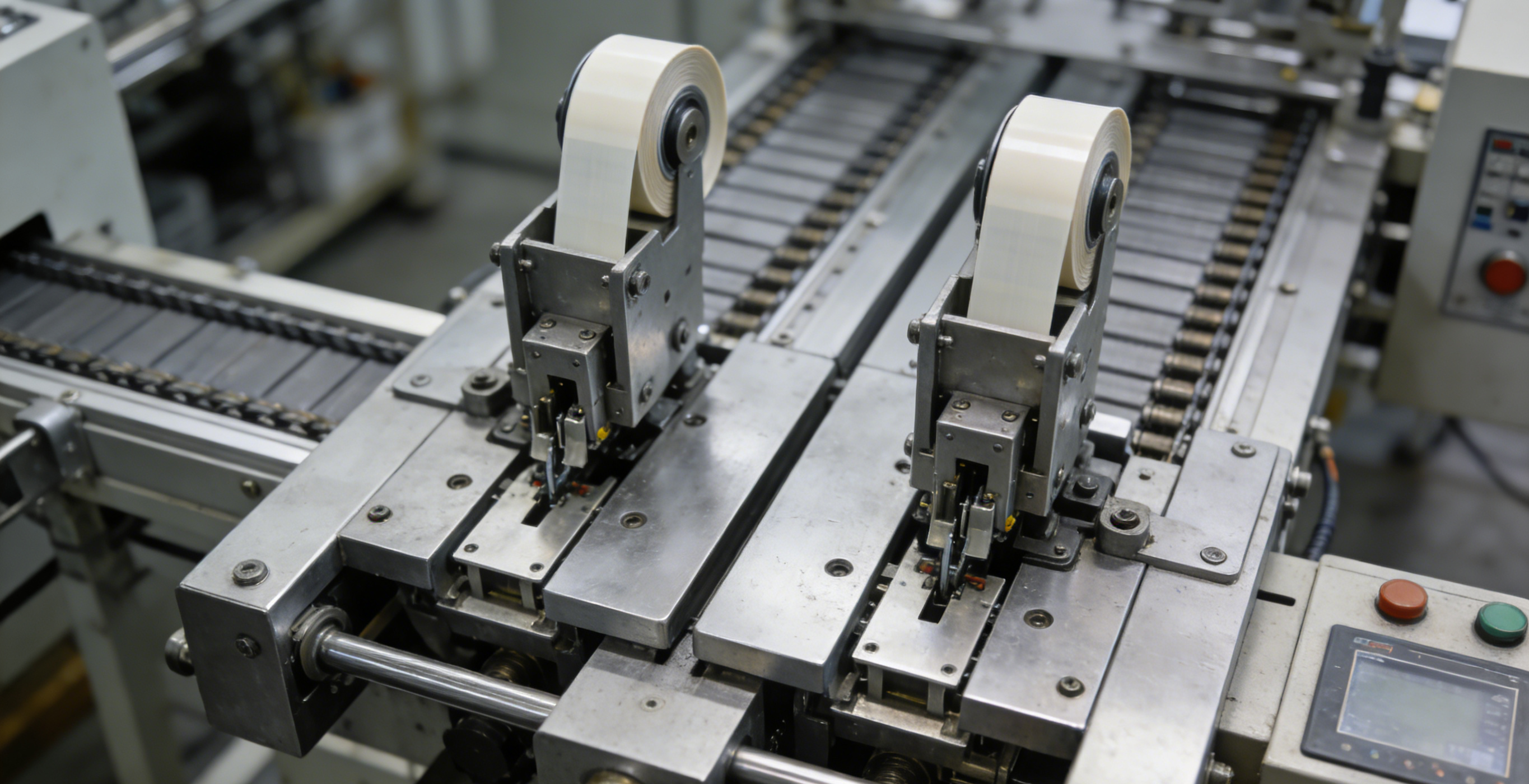

Inspected carrier tapes proceed to the heat sealing station, where precision temperature-controlled blades laminate cover tape onto the filled carrier tape. The system accommodates carrier tape widths from 8mm to 32mm, providing flexibility for different component sizes.
5. Automatic Take-Up

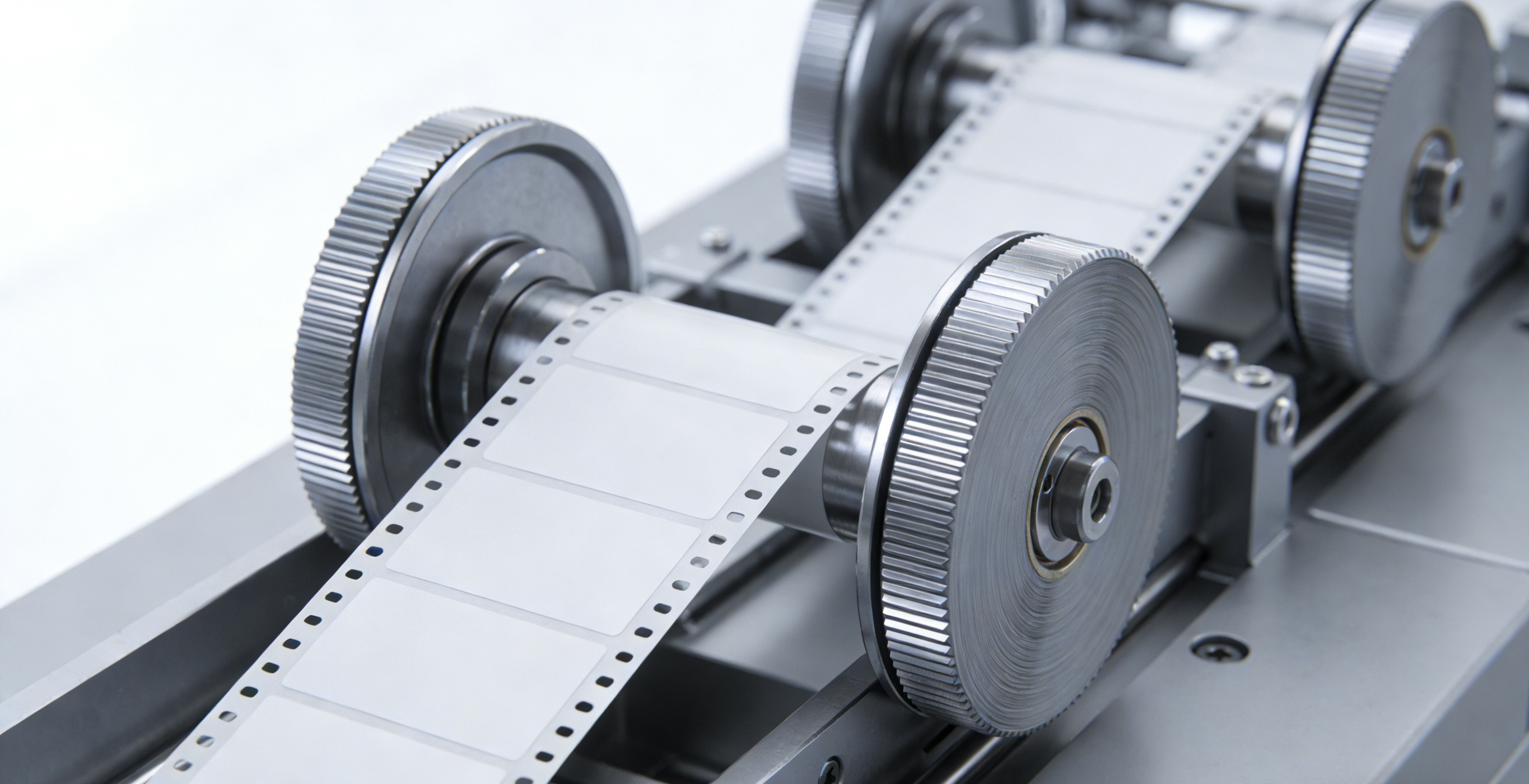

Completed, sealed carrier tapes are driven by stepper motors to individual take-up units, where they are automatically wound onto reels—ready for labeling, shipping, or SMT assembly.
Key Features & Technical Advantages
Integrated Dual-Lane Operation: Two independent carrier tape lines operate simultaneously, effectively doubling output without additional floor space.
High-Force Stamping: 10-ton punching pressure handles a wide range of materials and thicknesses with consistent quality.
High-Speed Production: Achieve 3000 strokes per hour ±10%, enabling high-volume manufacturing with rapid throughput.
Direct Part Transfer: Stamped components move directly from die to carrier tape, eliminating handling damage and ensuring precise placement.
Vision-Guided Quality Assurance: CCD camera system inspects every pocket for presence, position, and defects before sealing.
Overlap Prevention: Dedicated sensors detect and reject pockets with multiple components, ensuring packaging integrity.
Flexible Tape Compatibility: Supports carrier tape widths from 8mm to 32mm for diverse component applications.
Automatic Scrap Management: Stamp waste is continuously cut and separated, keeping the work area clean and reducing manual intervention.
Integrated Dual-Lane Operation
Independent Lane Control: Each of the two carrier tape lanes operates independently with separate feeding, inspection, and take-up mechanisms, allowing simultaneous production of different components or batch segregation within the same run.
Output Efficiency: Dual-lane design effectively doubles production throughput compared to single-lane systems without requiring additional floor space or operator intervention.
Flexible Production Scheduling: Lanes can be operated together for high-volume single-product runs or independently for mixed-model production, enabling Just-In-Time manufacturing flexibility.
High-Force Stamping (10-Ton Punching Pressure)
Material Versatility: 10-ton capacity handles a wide range of materials including copper alloys, stainless steel, brass, and phosphor bronze across varying thicknesses.
Consistent Part Quality: Servo-driven stamping mechanism ensures consistent force application throughout the stroke, reducing burr formation and maintaining dimensional stability across long production runs.
Rapid Response: High-torque servo motor enables precise control of stamping speed and depth, accommodating complex part geometries without tooling damage.
Energy Efficiency: Servo technology consumes power only during actual stamping, reducing energy costs compared to traditional flywheel-driven presses.
Applications Across Precision Manufacturing
This versatile system serves a wide range of metal stamping and packaging applications:
Electrical Connectors & Terminals: High-volume production of precision contacts with immediate carrier tape packaging.
Shielding Covers: EMI/RFI shielding components for electronics, packaged ready for SMT assembly.
Automotive Stampings: Terminals, clips, and brackets requiring strict quality and traceability.
Consumer Electronics Components: Small stamped parts for smartphones, wearables, and appliances.
Industrial Controls: Precision contacts and terminals for relays, switches, and sensors.
Why Choose Our Dual-Lane Punch-and-Tape Integrated Machine?
In today's competitive manufacturing landscape, efficiency and quality are inseparable. Our system delivers tangible advantages:
Reduced Labor Costs: One operator can manage the entire stamping and packaging process, significantly reducing labor requirements.
Eliminated Handling Damage: Components transfer directly from die to tape without intermediate handling or storage.
Improved Quality Control: Real-time vision inspection catches defects before packaging, preventing customer returns.
Higher Throughput: Dual-lane operation effectively doubles output compared to single-line systems.
Compact Footprint: Integrated design saves valuable floor space compared to separate stamping and packaging lines.
Traceability Ready: Inspection data can be logged and integrated with MES systems for complete batch traceability.
Technical Specifications at a Glance
Conclusion: Transform Your Stamping Operations with Integrated Automation
As manufacturing moves toward leaner, more efficient operations, the separation between forming and packaging becomes an unsustainable inefficiency.
Our Dual-Lane Punch-and-Tape Integrated Machine offers a complete solution—combining high-force stamping, precision inspection, and automated packaging into one seamless system.
Whether you're manufacturing connectors for automotive electronics, shielding covers for consumer devices, or precision terminals for industrial controls, this system delivers the speed, quality, and reliability required in today's competitive market.
