Square plastic components present unique assembly challenges:
| Challenge | Impact |
|---|---|
| Orientation Sensitivity | Square parts appear similar from multiple angles, making manual orientation verification error-prone |
| Precision Requirements | ±0.1mm placement accuracy demands mechanical precision beyond human capability |
| Adhesive Application | Consistent tape placement without bubbles or misalignment requires automated control |
| Handling Damage | Manual handling can scratch cosmetic surfaces or damage delicate features |
| Throughput Demands | High-volume production requires speeds manual methods cannot match |
Our system addresses each of these challenges through intelligent automation and precision engineering.

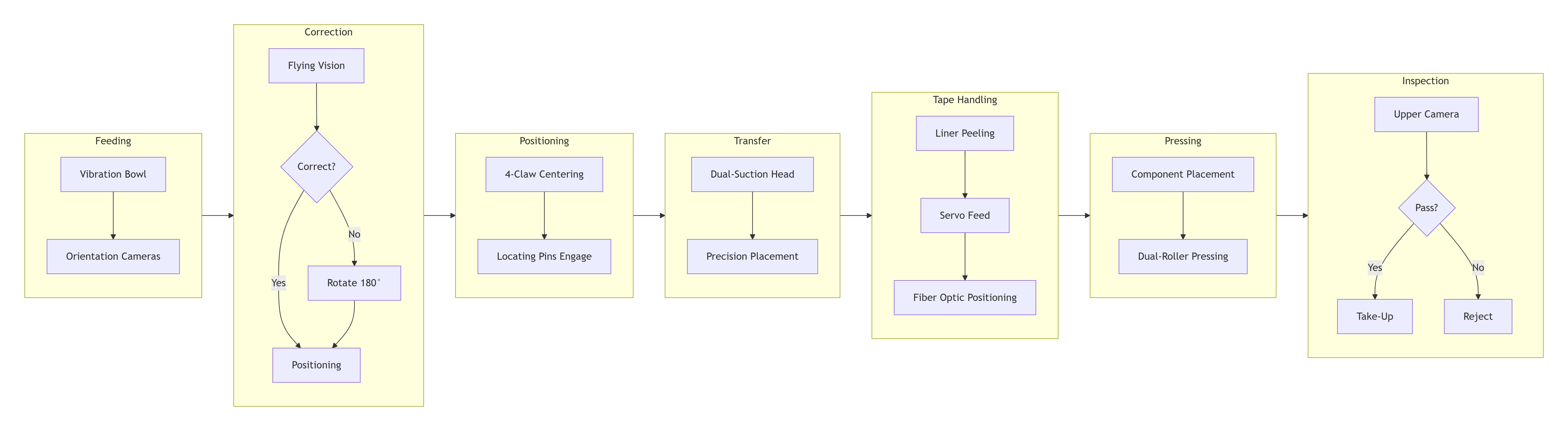

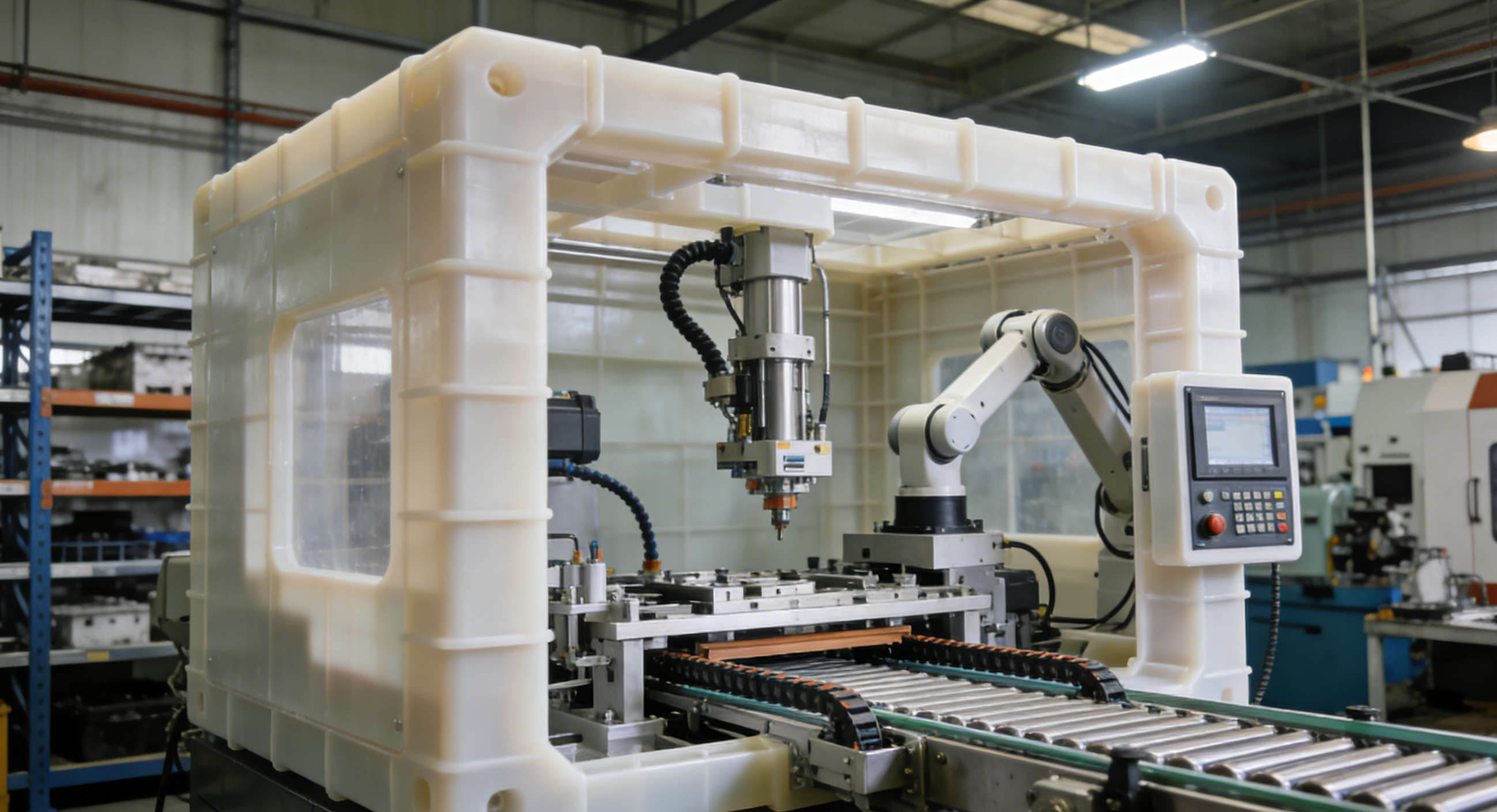

The system executes a carefully choreographed sequence that transforms loose components into finished, tape-applied assemblies:

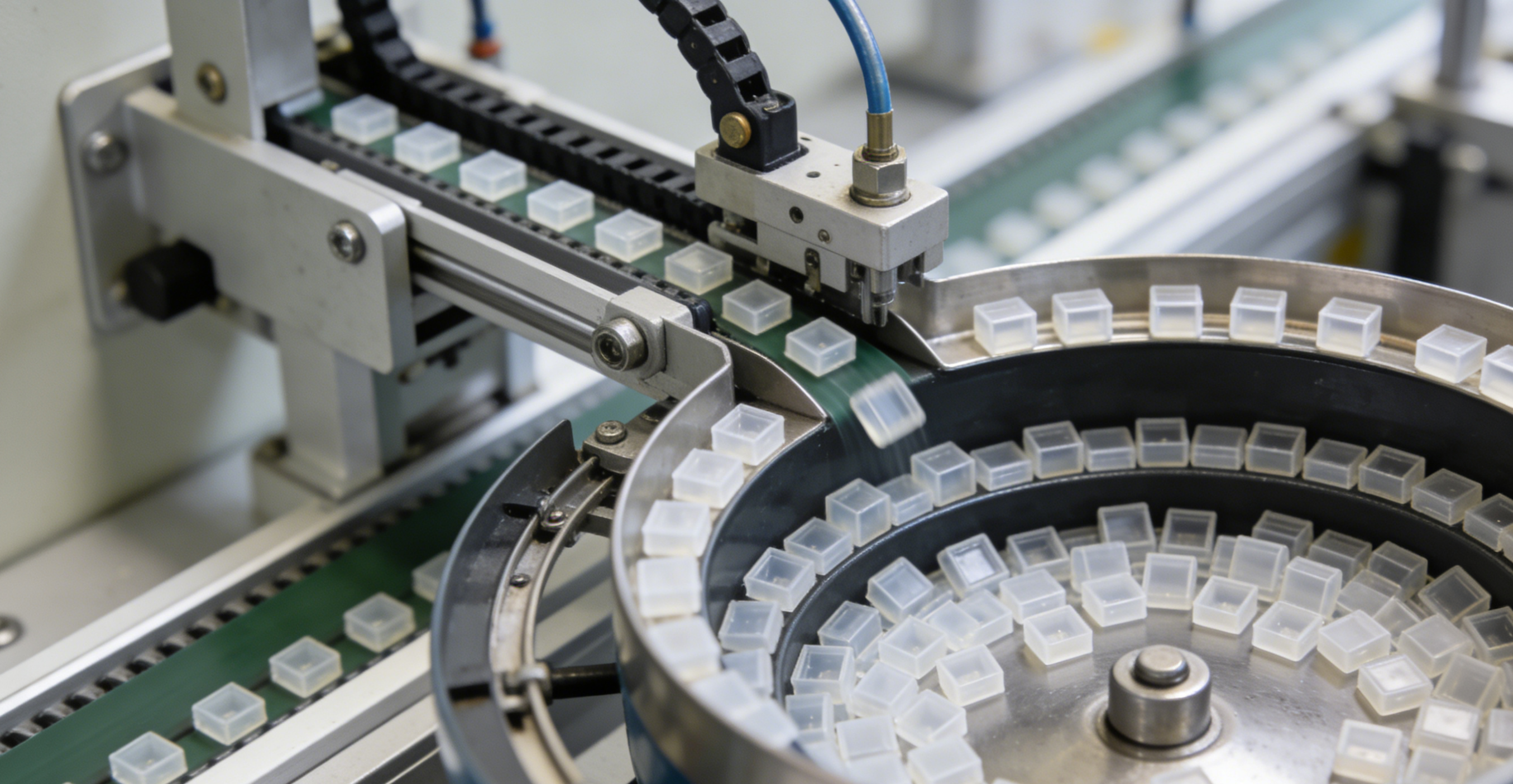

Square components are loaded into a precision-engineered vibration bowl equipped with integrated recognition cameras. As parts travel along the linear track, the system:
Identifies Orientation: Front and rear recognition cameras analyze each component's position
Detects Reversed Parts: Components oriented incorrectly are flagged for correction
Maintains Consistent Flow: Continuous vibration feeding ensures steady supply without jams
As components reach the pick-up position, a lower flying vision camera performs real-time orientation verification:
If a component is correctly oriented, it proceeds directly to positioning
If reversed, the suction plate rotation motor rotates the part 180 degrees before transfer
This real-time correction eliminates the need for manual sorting or secondary operations

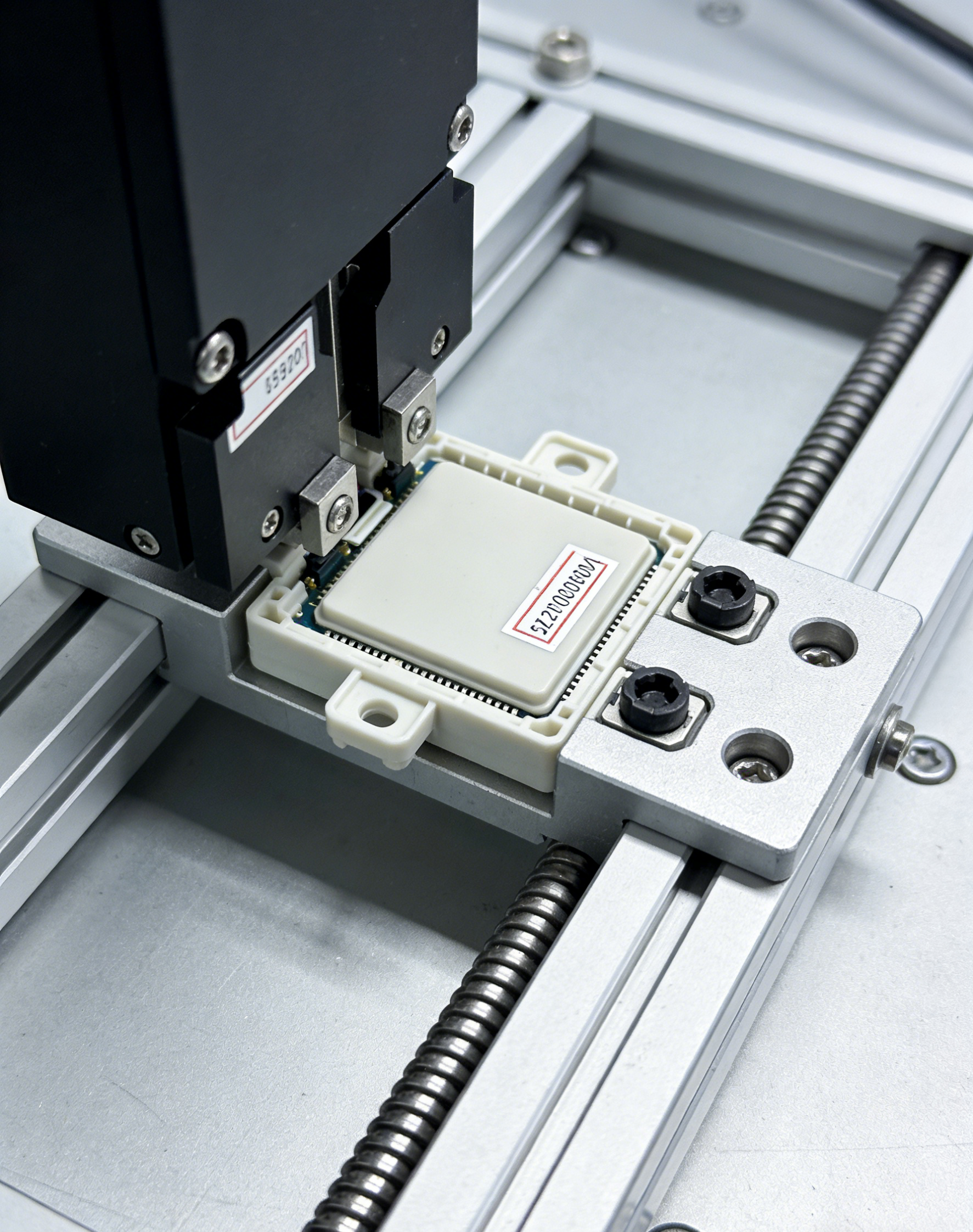

The feeding manipulator transfers each component to a 4-claw positioning mechanism—the heart of the system's accuracy:

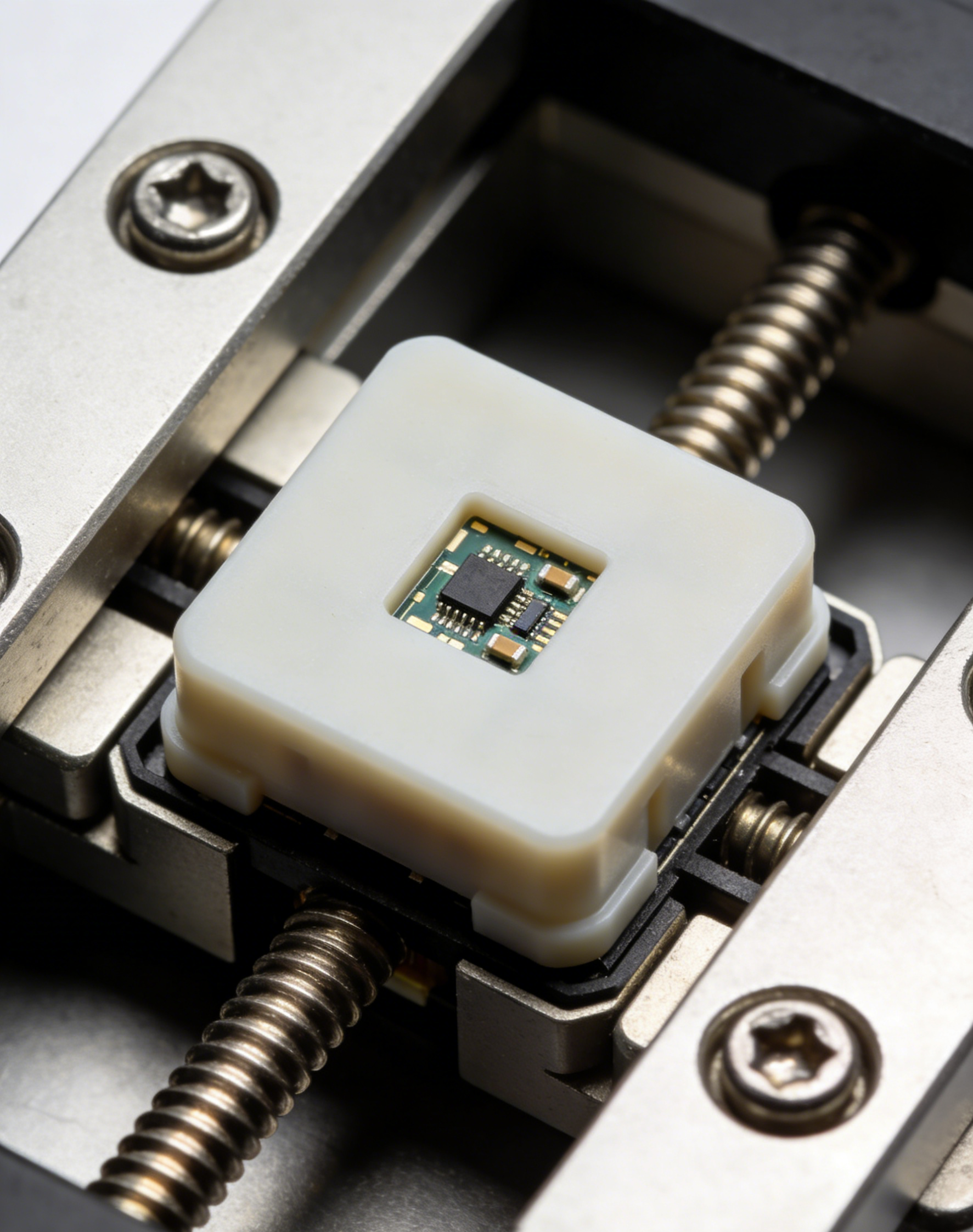

Centering Alignment: Four independently actuated claws center the component with micron-level precision
Locating Pin Integration: Positioning pins on the suction head insert into the component's locating holes
Zero-Deflection Holding: Once positioned, the component is held securely without movement during transfer
The manipulator executes a coordinated transfer sequence:
Left Suction Head retrieves the positioned component
Right Suction Head simultaneously presses down, maintaining process speed
Positioning Pins engage with track locating holes at the placement position
Precision Release: Component is released only after full engagement is verified
Concurrent with component handling, the adhesive tape system prepares the placement surface:
Release Liner Peeling: Rollers cleanly separate the protective liner from the adhesive tape
Liner Take-Up: Waste liner is automatically wound onto a dedicated take-up mechanism
Servo-Driven Tape Feed: Precision servo motor advances tape to the exact placement position

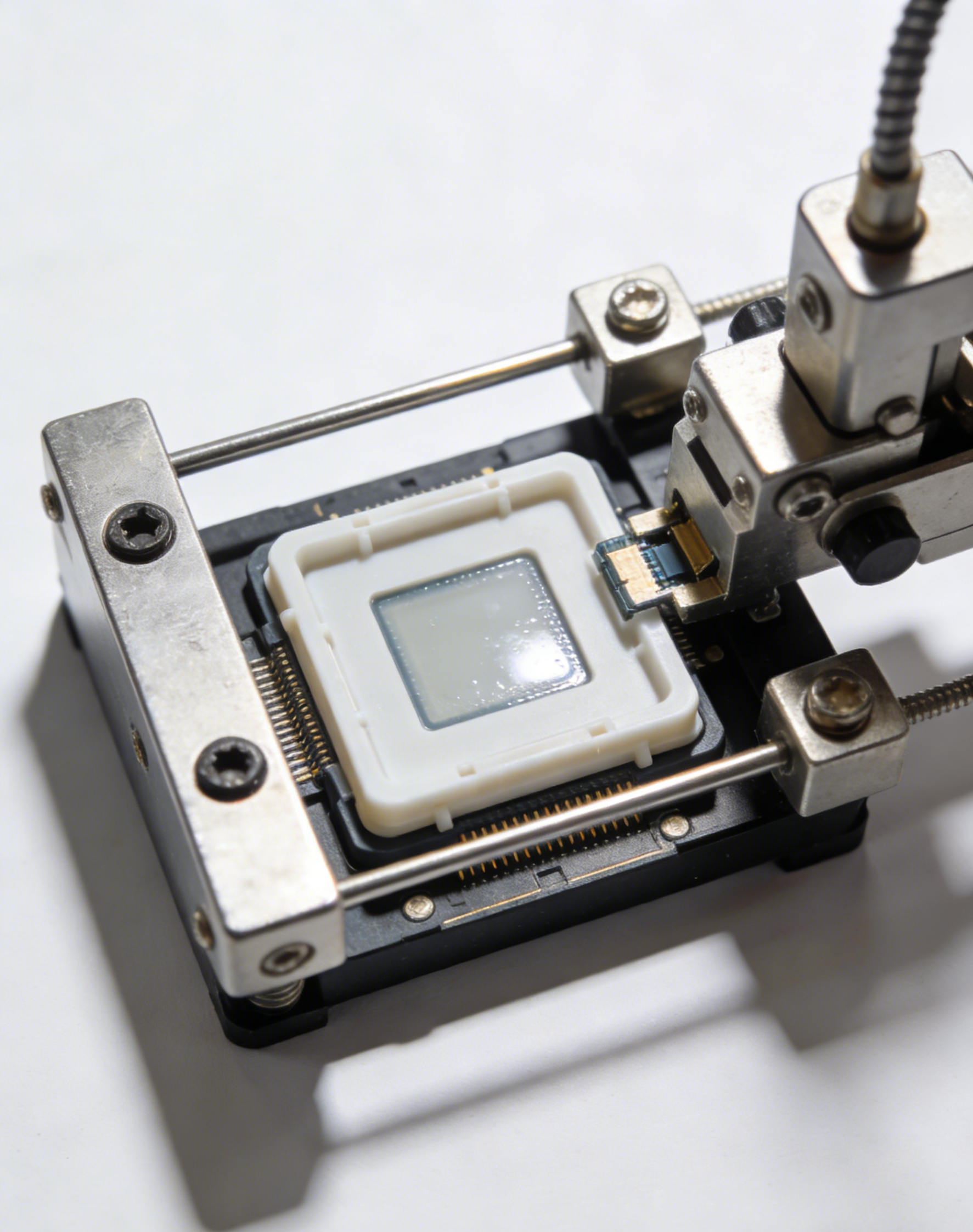

Fiber Optic Positioning: Sensors detect tape arrival and stop feed with ±0.1mm accuracy
With both component and tape precisely positioned:
The component is placed onto the adhesive tape at the designated location
Upper and Lower Rubber Rollers apply controlled pressure to ensure complete adhesion
Progressive Rolling eliminates air bubbles and ensures uniform contact across the entire interface
Before proceeding to take-up, each assembled product passes beneath an upper camera that verifies:
Component presence and correct placement
Adhesive coverage and seal integrity
Final assembly quality

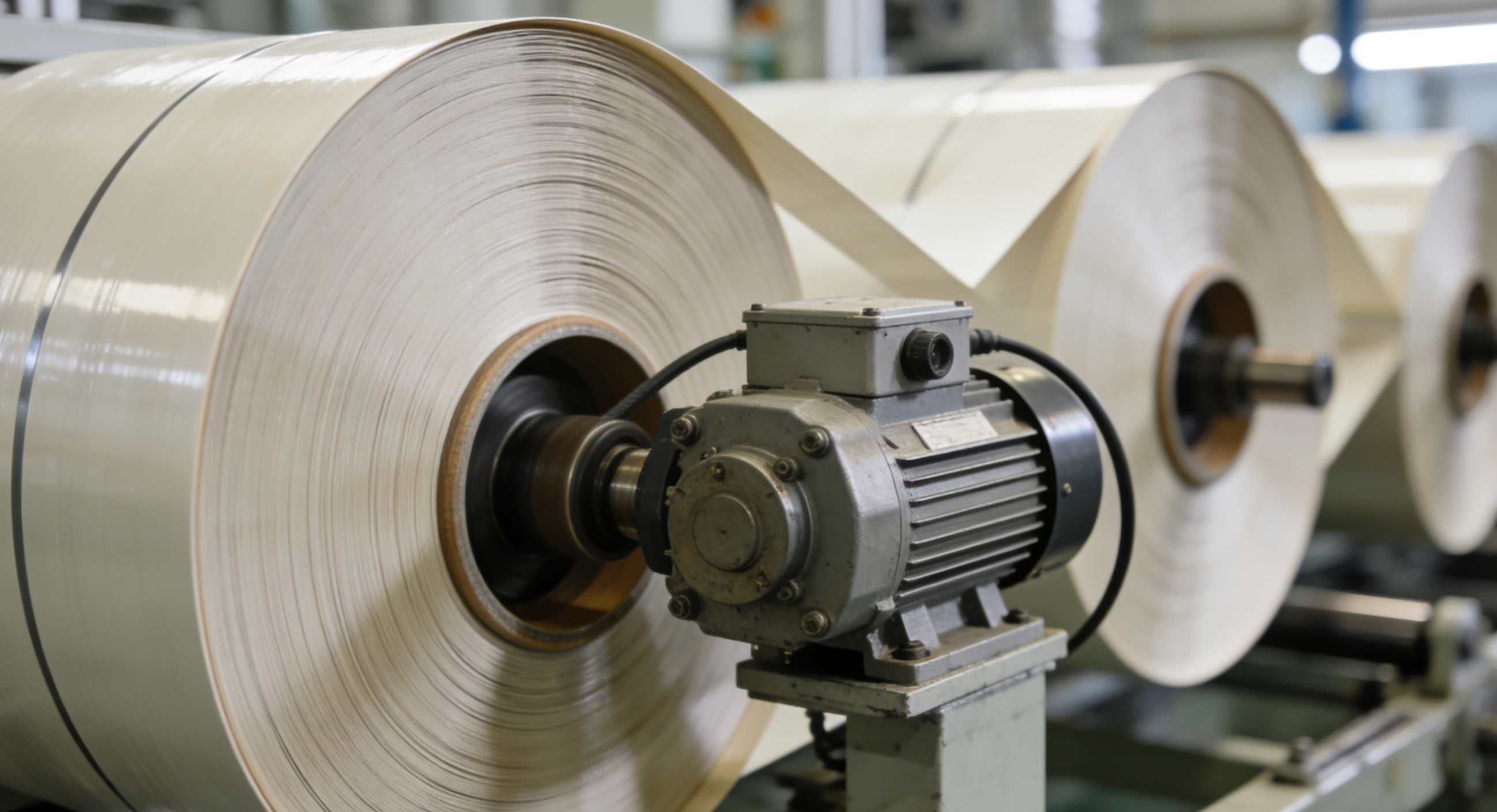

Completed assemblies advance to the take-up station, where a variable-speed motor winds finished products onto reels—ready for packaging or downstream processing.
| Camera | Function | Benefit |
|---|---|---|
| Lower Flying Vision | Real-time orientation detection and correction | Eliminates reversed parts without slowing production |
| Upper Inspection Camera | Final assembly verification | Ensures only quality products reach packaging |
Four Independent Actuators: Centering accuracy maintained regardless of component size variations
Locating Pin Integration: Mechanical engagement ensures zero positional drift
Repeatable Accuracy: Consistent ±0.1mm placement across millions of cycles
Recognition Cameras: Detect part orientation at multiple points
Rotary Correction: Reversed parts rotated 180 degrees automatically
Zero Manual Sorting: Eliminates labor-intensive orientation verification
| Motion Axis | Drive Type | Advantage |
|---|---|---|
| Pick-and-Place Manipulator | Servo Motor | Smooth, programmable motion profiles |
| Rotary Positioning | Servo Motor | Precise angle control for orientation |
| Adhesive Tape Feed | Servo Motor | Accurate tape positioning without overshoot |
| Take-Up | Variable Speed Motor | Adjustable tension for different materials |
Release Liner Peeling: Clean separation without adhesive transfer
Dual-Roller Pressing: Upper and lower rollers ensure complete adhesion
Fiber Optic Positioning: High-speed detection of tape position
Adjustable Pressure: Fine-tuned roller pressure for different adhesive types
Universal Design: Adjustable fixtures accommodate multiple component geometries
Quick Changeover: Tool-less adjustments minimize downtime between product runs
Wide Size Range: Handles various square component dimensions within the 4-claw range
This versatile assembly solution serves diverse manufacturing sectors:
| Industry | Application Examples |
|---|---|
| Consumer Electronics | Device housings, button panels, battery covers |
| Automotive | Interior trim components, control panel elements, sensor housings |
| Medical Devices | Diagnostic equipment casings, disposable component assemblies |
| Industrial Controls | Enclosure components, interface panels, terminal covers |
| Telecommunications | Connector housings, equipment enclosures, mounting brackets |
| Advantage | Impact |
|---|---|
| High-Speed Operation | 2300 ±10% UPH meets high-volume production demands |
| Sub-Millimeter Accuracy | ±0.1mm placement ensures perfect fit in final assemblies |
| Zero Reversed Parts | Vision-guided orientation correction eliminates assembly errors |
| Consistent Quality | Automated inspection verifies every assembly before packaging |
| Reduced Labor Costs | One operator can manage multiple machines |
| Quick ROI | Increased throughput and reduced scrap deliver fast payback |
| Item | Specification |
|---|---|
| Production Speed | 2300 ±10% pieces/hour |
| Placement Accuracy | ±0.1mm |
| Feeding System | Vibration bowl with front/rear recognition cameras |
| Vision System | Lower flying vision camera + upper inspection camera |
| Positioning Mechanism | 4-claw centering with locating pins |
| Drive System | Servo motors for manipulator, rotation, tape feed |
| Tape Handling | Release liner peeling, dual-roller pressing, fiber optic positioning |
| Take-Up | Variable speed motor with adjustable tension |
| Power Supply | AC 220V 50Hz |
| Control Interface | Integrated touchscreen display |
| Footprint | Compact layout (refer to diagram) |
As production volumes increase and quality standards tighten, manual assembly methods become unsustainable. Our Fully Automatic Square Plastic Injection Part Assembly Machine offers a complete solution—combining high-speed operation, vision-guided precision, and automated quality verification into one integrated system.
Whether you're assembling components for consumer electronics, automotive interiors, medical devices, or industrial controls, this system delivers the reliability, accuracy, and throughput needed to compete in today's demanding markets.
