Micro Film Feeder Type Automatic Tape Packaging Machine for Flat Stamped Parts

Solution: Micro Film Type Automatic Tape Packaging Machine for Flat Stamped Parts

In the manufacturing of flat stamped components—such as connectors, shielding covers, contacts, and precision metal parts—packaging quality directly impacts downstream SMT assembly efficiency and product reliability. Traditional manual or semi-automated packaging methods struggle to keep pace with high-volume production while maintaining consistent placement accuracy and defect detection. Our Fully Automatic Micro Film Feeding Taping Machine delivers a complete solution, combining high-speed servo-driven operation, precision vision inspection, and flexible micro-adhesive film feeding into one integrated system designed for the most demanding production environments.

Zero-Defect Packaging for Automated Assembly

Today's electronics manufacturers demand zero-defect components delivered in precisely packaged reels that feed directly into high-speed SMT lines. Any deviation—a missing part, an incorrectly oriented component, a contaminated surface, or a poorly sealed pocket—can halt an entire production line, causing costly downtime and delayed shipments. Meeting these demands requires packaging equipment that matches the precision and reliability of the stamping presses that produce the components.

Manual Packaging Inefficiencies in High-Volume Production

Despite advancements in upstream stamping and forming technologies, many manufacturers continue to rely on manual or semi-automated packaging methods that introduce significant risks and inefficiencies:

• Inconsistent Placement Accuracy: Human operators cannot maintain the ±0.1mm placement accuracy required for high-speed SMT pick-and-place equipment, leading to feeder jams and production interruptions at customer sites.

• Fatigue-Related Errors: As production shifts progress, operator fatigue leads to increased rates of missing components, reversed orientations, and undetected defects.

How It Works: Seamless Automation from Feeding to Finished Reel

The system orchestrates a fully automated workflow that transforms incoming flat components into inspected, sealed carrier tape ready for SMT assembly:

Key Features & Technical Advantages

• High-Speed Operation: Achieve packaging speeds from 5,000 to 14,000 PCS per hour, depending on component geometry, enabling scalable production without quality compromise.

• Multi-Row Compatibility: Supports up to four rows of stamped parts simultaneously, maximizing throughput for high-volume applications.

• Wide Component Range: Handles parts from 1×1mm to 10×44mm with thicknesses from 0.05mm to 0.5mm, accommodating diverse product families.

• Flexible Carrier Tape Support: Compatible with 12mm to 56mm carrier tape widths, providing versatility for different component sizes and industry standards.

• Precision Vision Inspection: Keyence 500W high-speed monochrome cameras with CV-5501 controller deliver micron-level inspection accuracy for dimensional and surface quality verification.

• Fully Servo-Controlled: All critical motions—feeding, pick-and-place, tape advance, and sealing—are servo-driven for smooth, repeatable, and maintenance-friendly operation.

• User-Friendly Operation: Intuitive HMI with external touchscreen enables quick learning, easy debugging, and simplified changeovers between products.

• Compact Footprint: With dimensions of 1760×800×1730mm and 450KG weight, the machine integrates efficiently into existing production layouts.

Vision System Capabilities – Detailed

The Keyence CV-5501 vision system with 500W high-speed monochrome cameras provides:

Applications Across Precision Manufacturing

This versatile taping solution serves a wide range of industries and applications:

• Consumer Electronics: Shielding covers, connector contacts, battery contacts, and EMI/RFI components

• Automotive Electronics: Terminals, sensor components, fuse elements, and stamped contacts

• Medical Devices: Small stamped components for diagnostic equipment and disposables

• Industrial Controls: Relay contacts, switch components, and precision terminals

• Telecommunications: Connector pins, shielding parts, and grounding contacts

Why Choose Our Micro-Adhesive Film Feeding Taping Machine?

In today's competitive manufacturing environment, packaging efficiency directly impacts profitability and customer satisfaction. Our system delivers tangible advantages:

• Reduced Labor Costs: Full automation eliminates manual placement and inspection, significantly reducing operator requirements.

• Consistent Quality: Vision-guided placement and inspection ensure every component meets specifications before sealing.

• Higher Throughput: Speeds up to 14,000 PCS/hour enable rapid production without sacrificing accuracy.

• Flexible Production: Quick-change tooling and wide format range accommodate diverse product families with minimal downtime.

• Lower Scrap Rates: Real-time defect detection prevents packaging of non-conforming components.

• Traceability Ready: Inspection data can be exported for SPC analysis and batch traceability.

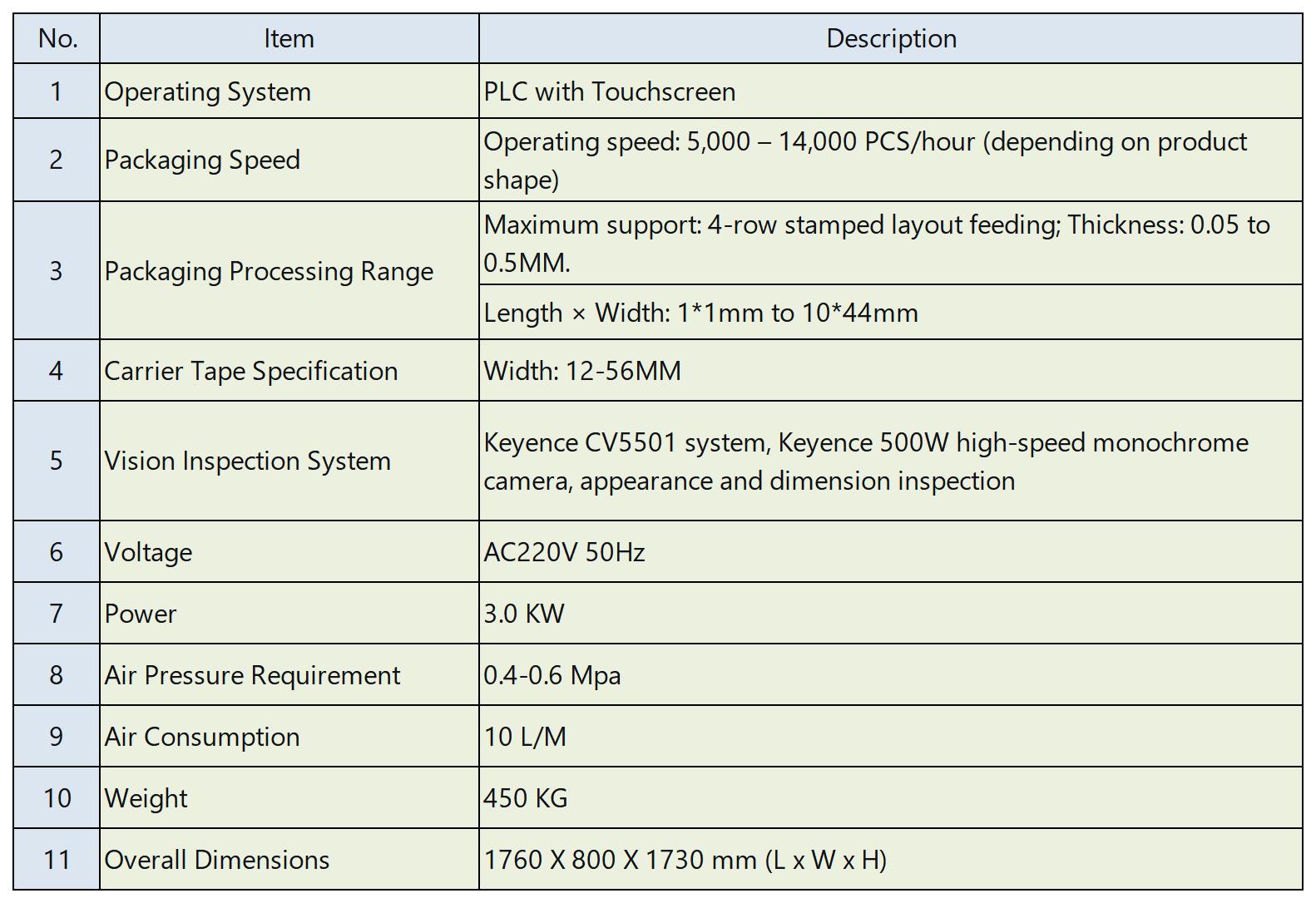

Technical Specifications

Conclusion: Elevate Your Flat Component Packaging with Intelligent Automation

As production volumes increase and quality standards tighten, investing in advanced packaging automation becomes essential. Our Fully Automatic Micro-Adhesive Film Feeding Taping Machine offers a future-ready solution that combines speed, precision, and flexibility—enabling manufacturers to meet demanding schedules while maintaining impeccable quality. Whether you're packaging small stamped contacts for automotive electronics or shielding covers for consumer devices, this system provides the reliability and performance needed to excel.
