Vibration Feeder Type Automatic Tape Packaging Machine for L-Shaped Nickel Strips

Solution: Vibration Feeder Type Automatic Tape Packaging Machine for L-shaped Nickel Strips

This automatic tape packaging machine uses a vibration feeder to handle loose L-shaped nickel strips. It integrates feeding, PPU pick-and-place, CCD inspection, and heat sealing into one compact system.

Vibration Feeder Type Automatic Tape Packaging Machine for L-Shaped Nickel Strips

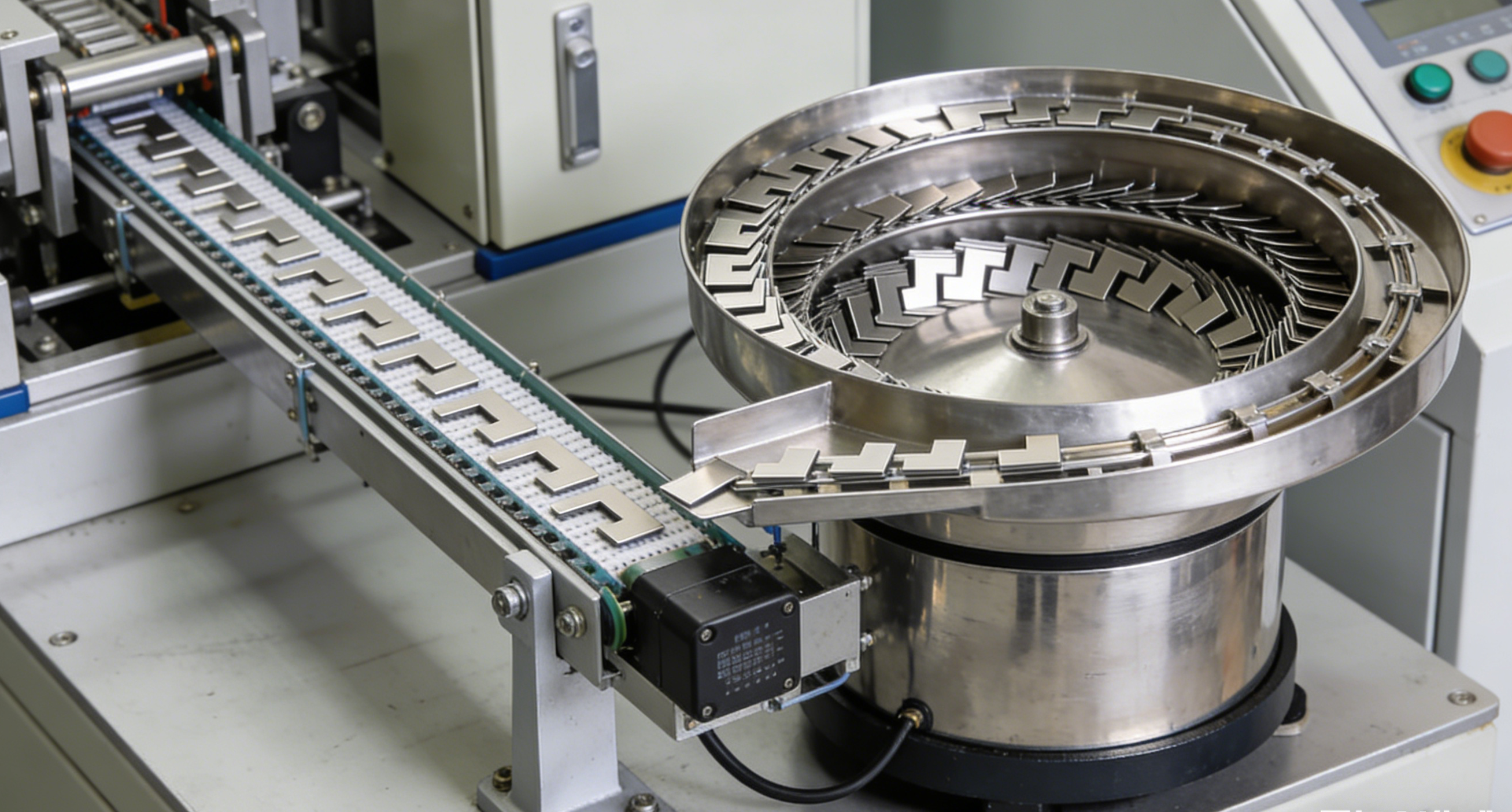

The machine is designed for high-volume production of L-shaped nickel parts. Loose parts are loaded into the steel vibration bowl, then picked and placed by a PPU mechanism.

Two vision cameras inspect each part for reverse orientation, empty pockets, and double nickel strips.

Qualified parts are sealed into carrier tape and wound onto reels.

Application

This machine is specifically designed for L-shaped nickel strips. It is ideal for:

• Battery protection board components

• Nickel strip packaging for electronics

• High-volume SMT feeding applications

How It Works

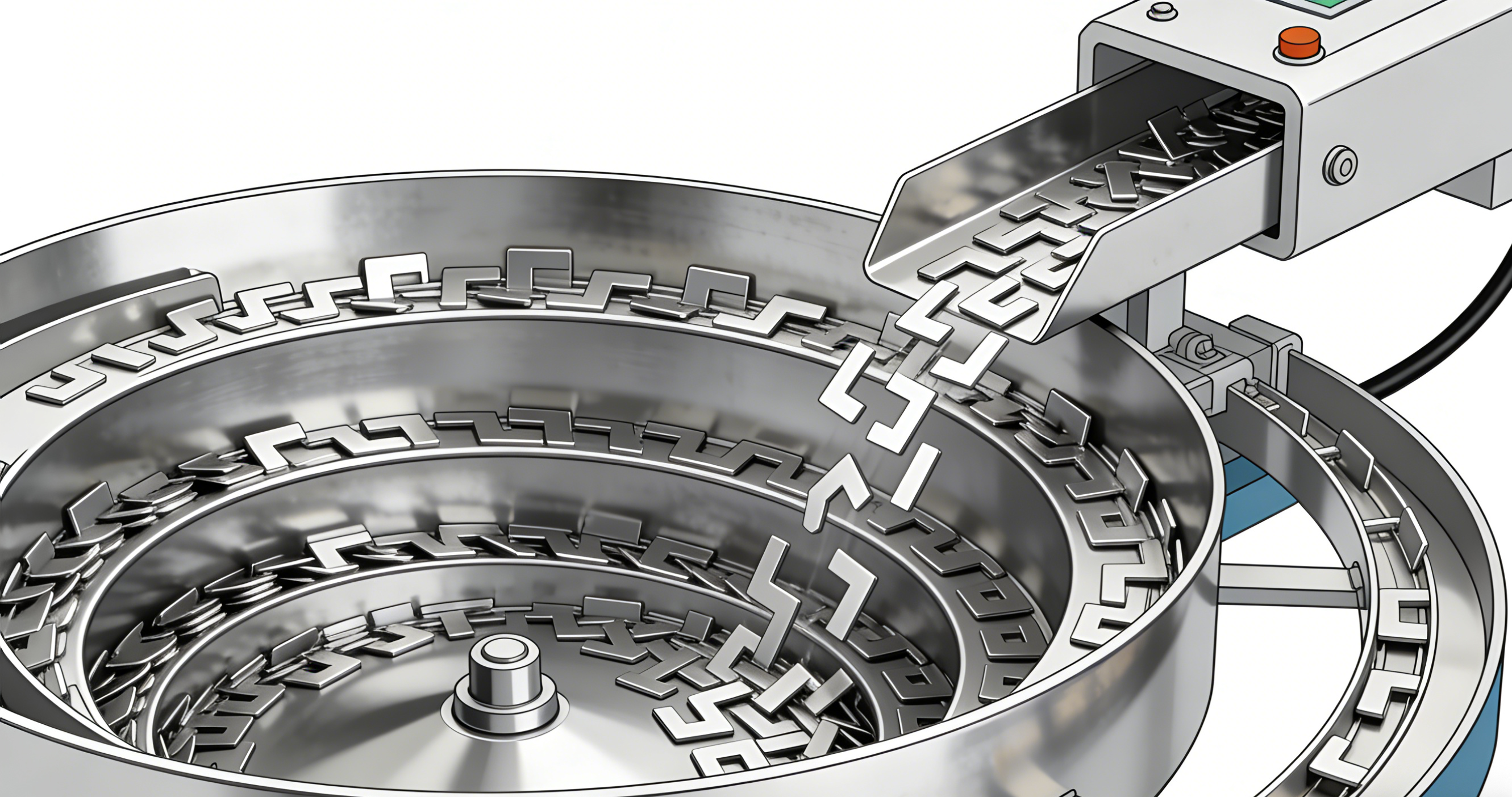

Vibration feeding

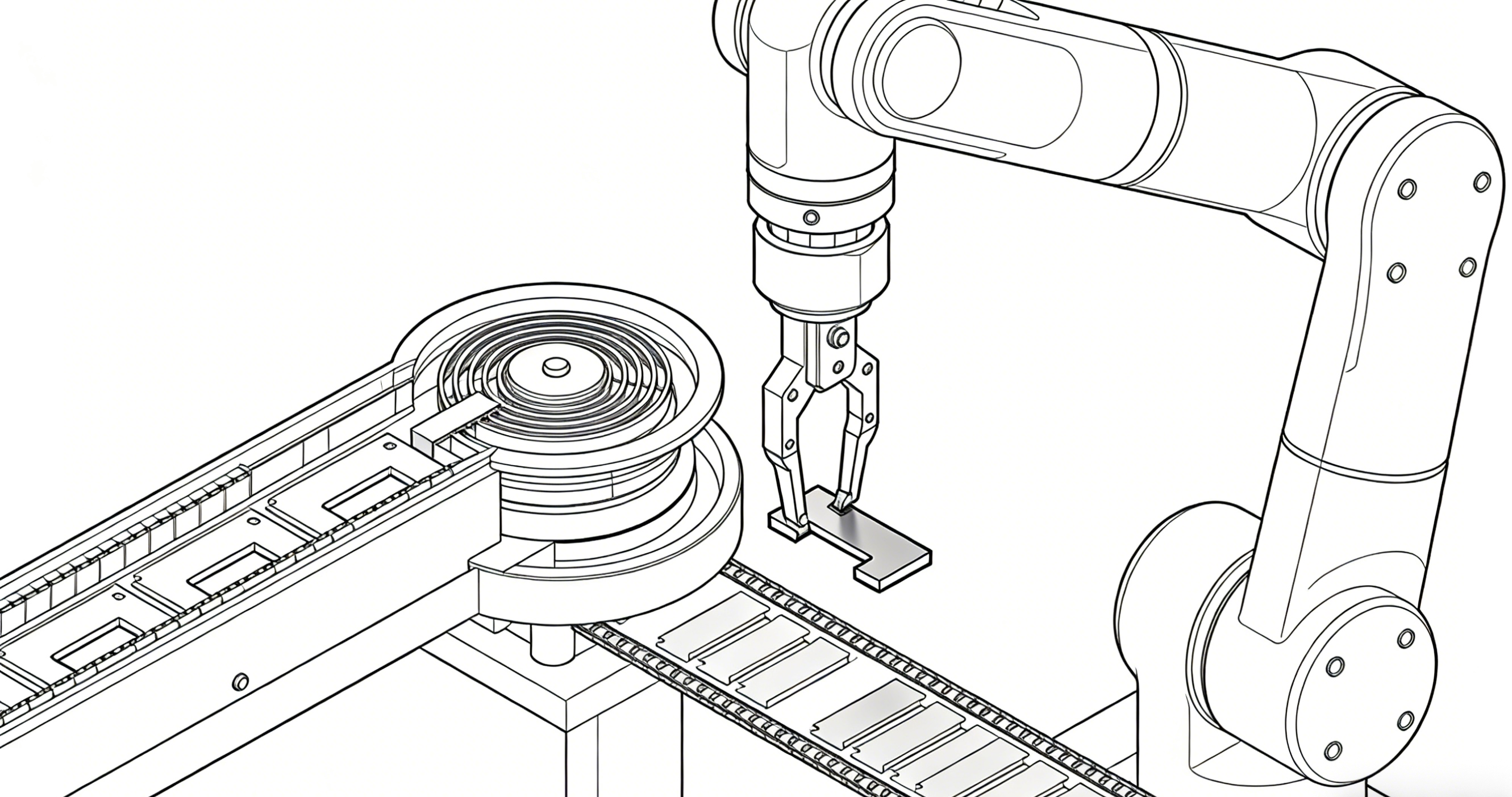

PPU pick & place

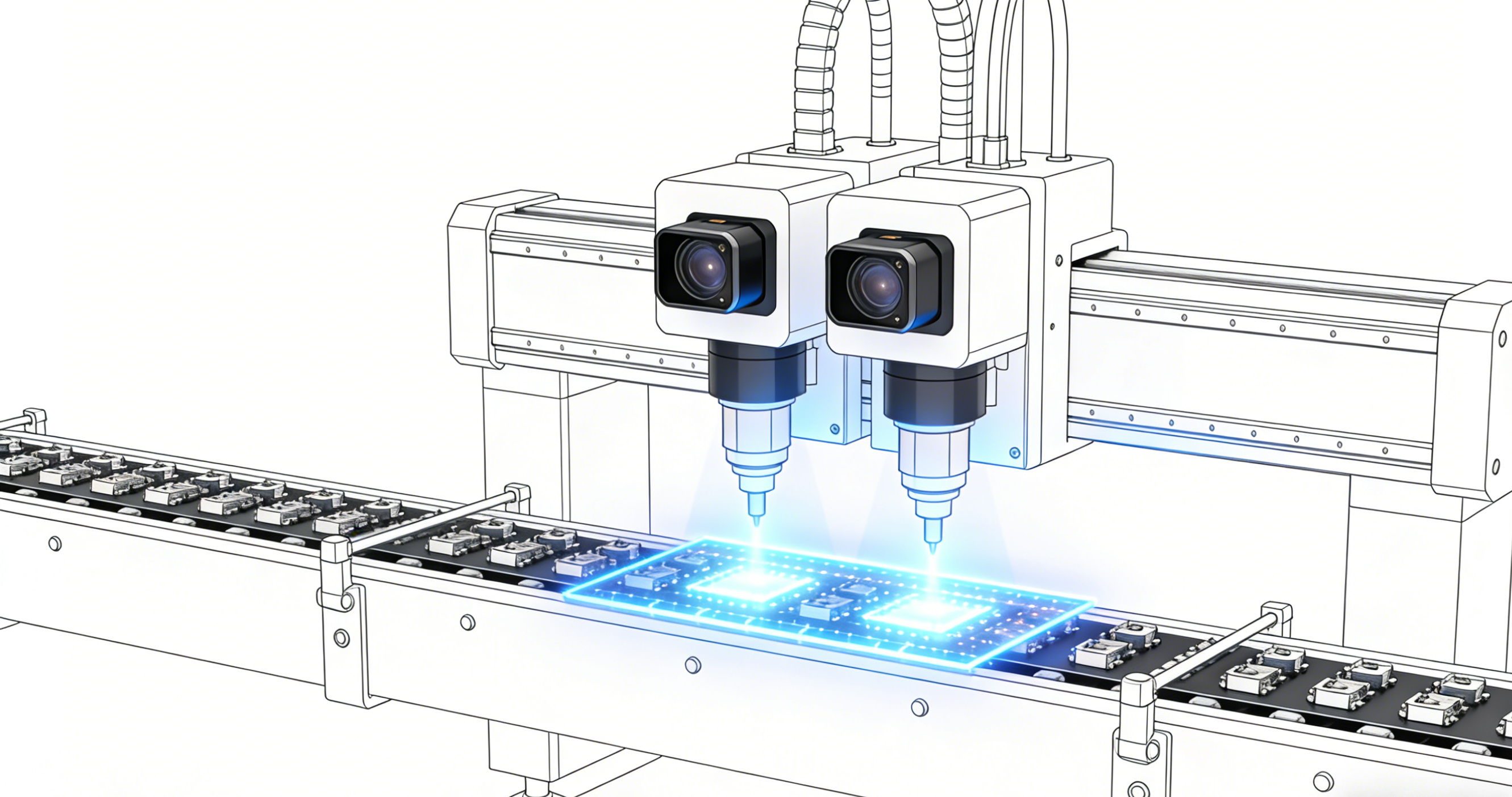

CCD inspection

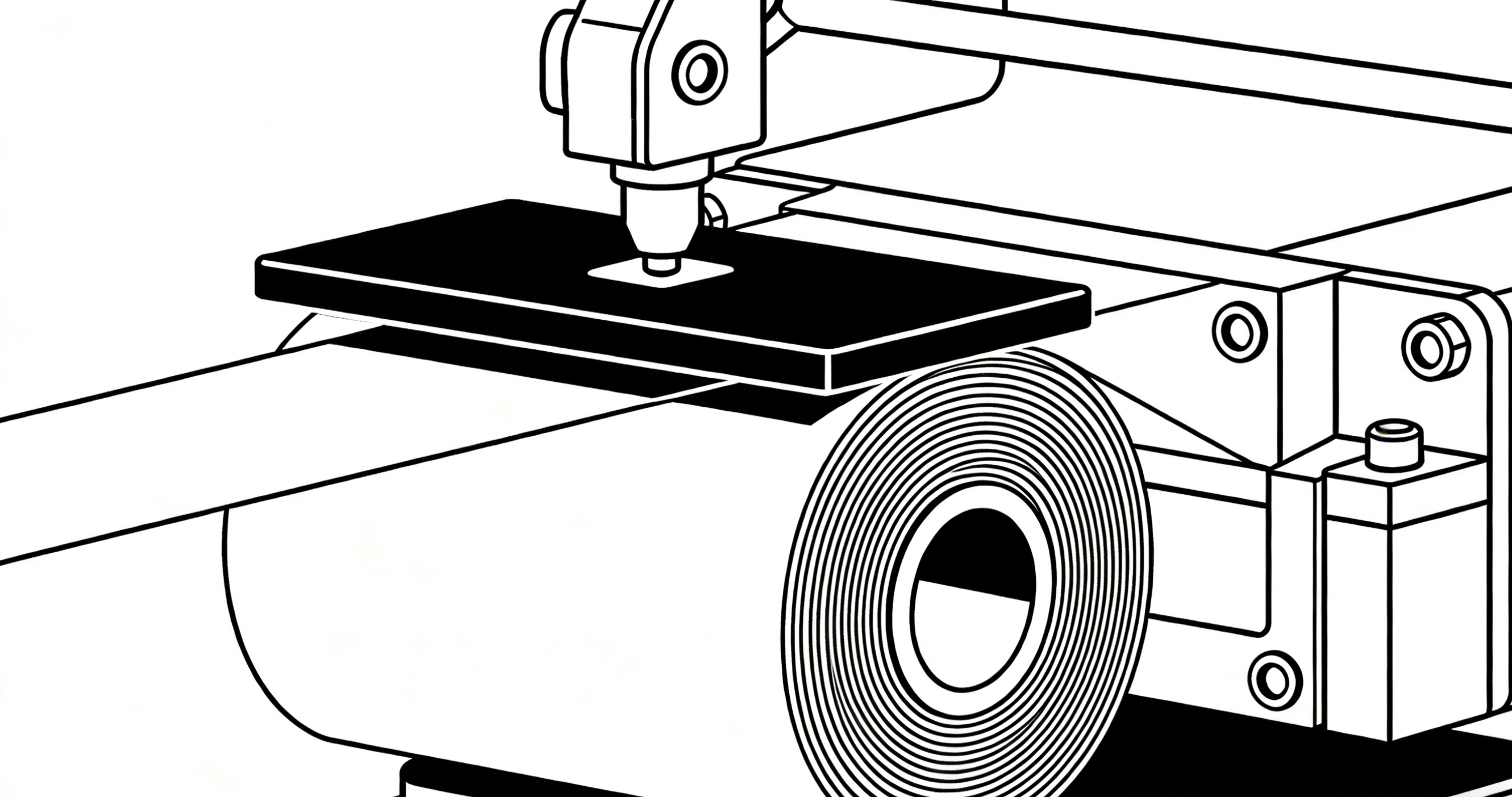

Heat sealing

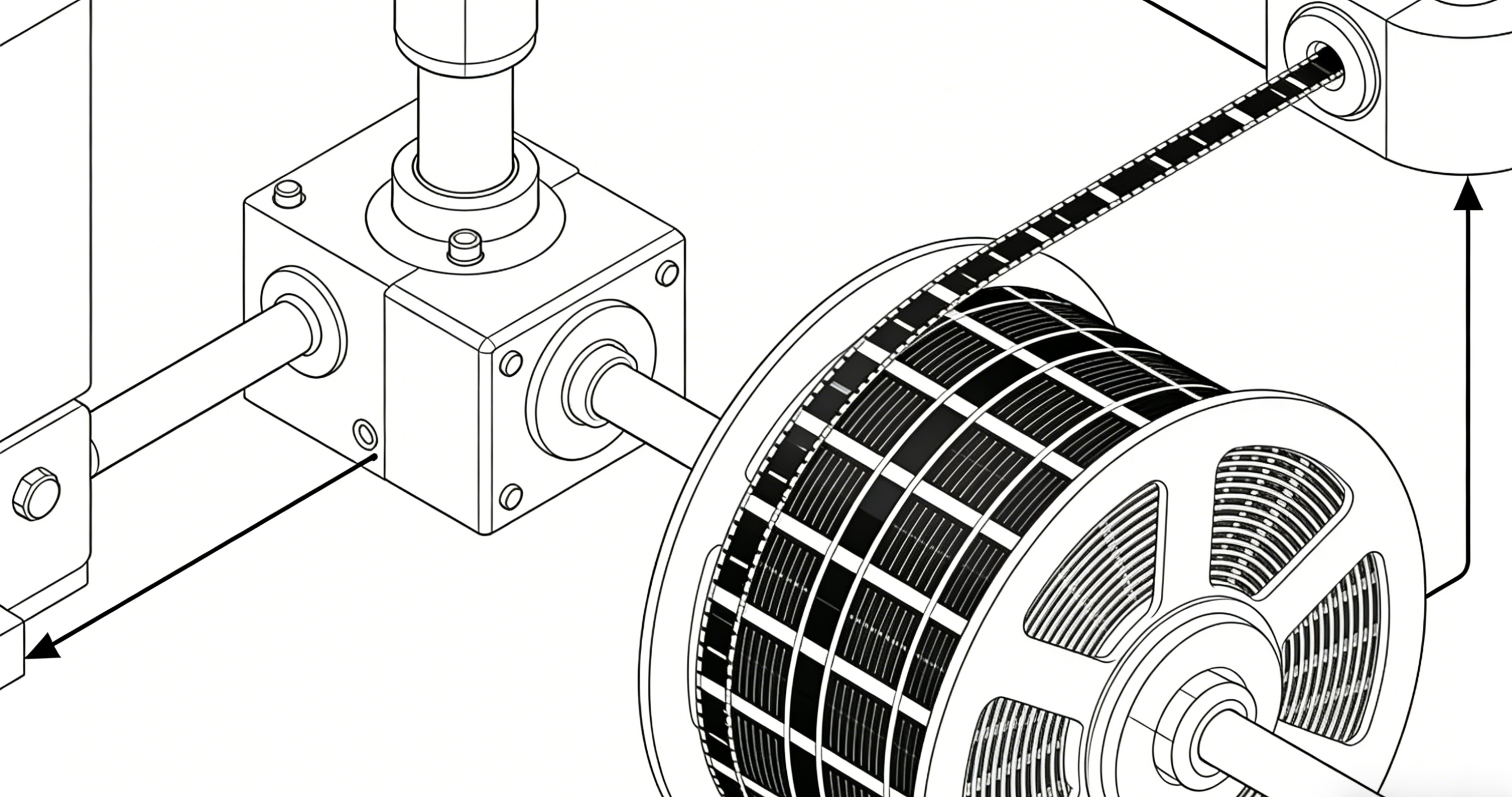

Rewinding

Technical Specifications

Inspection Capability

The machine uses a combination of front light and side light to detect double nickel strips. Two CCD cameras check for:

• Reverse detection – part orientation

• Empty pocket detection – missing parts

• Double part detection – two nickel strips in one pocket

Key Features

• PPU pick-and-place mechanism – stable and precise

• Dual camera inspection – ensures product quality

• User-friendly HMI – easy operation and quick setup

• Compact design – saves floor space (1200×750×1700mm)

• Steel vibration bowl – durable for long-term use
