Introduction: A New Standard in Automated Assembly for Plastic Components
In the fast-evolving world of manufacturing, precision, speed, and consistency are non-negotiable. Manual or semi-automated assembly processes often fall short in meeting today’s demands for high-volume, defect-free production. Enter the Fully Automated Plastic Injection Molding Part Assembly Machine—a next-generation solution engineered to seamlessly integrate adhesive tape application with precise part placement. Designed for manufacturers of electronic housings, automotive interiors, consumer device components, and medical plastic parts, this system combines advanced vision technology, intelligent feeding, and servo-driven accuracy to deliver reliable, repeatable, and efficient assembly performance.
How It Works: An Integrated Workflow for Flawless Assembly
Our assembly machine orchestrates a smooth, fully automated process that begins with part feeding and ends with finished, inspected assemblies. Plastic components are loaded into a high-performance vibration bowl equipped with front and rear recognition cameras to ensure correct orientation. A pick-and-place manipulator, guided by a lower flying vision camera, retrieves each part and rotates it as needed. The component is then transferred to a 4-claw positioning mechanism for precise alignment before being placed onto an adhesive-backed carrier tape.

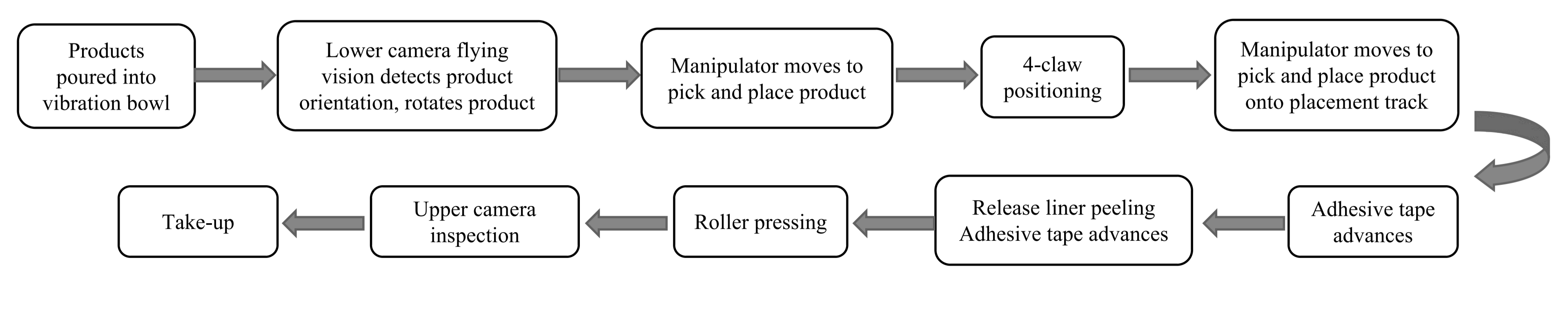

Equipment Process Flow Description:
Square products are poured into the vibration bowl. The linear vibration mechanism conveys them to the feeding track. The feeding manipulator suctions and lifts the product, moving it for feeding. The lower flying vision camera identifies the product's orientation. If the product is reversed, the rotation motor on the suction plate rotates it 180 degrees.
The feeding manipulator moves the product to a 4-claw positioning mechanism for alignment. The manipulator then shifts left. The left suction plate picks up the product, while the right suction plate presses down. Positioning pins on the suction head insert into the product's locating holes, allowing it to suction the positioned product. The feeding manipulator shifts right to place the product onto the placement track. Positioning pins on the suction head insert into the track's locating holes before releasing the product.
The release liner is fed via rollers, peeled off, and wound onto the release liner take-up mechanism.
Adhesive tape is driven forward by servo motor-driven rollers. Upper and lower rubber rollers press the two edges of the tape, rolling it forward to the assembly position. A fiber optic sensor on the track detects when the tape is fed into position and stops the feeding. After assembly, the product proceeds to a flattening mechanism where upper and lower rubber rollers press and roll it forward.
The product reaches the take-up mechanism and is wound up by the take-up motor.
Key Features & Technical Advantages
High-Speed Operation: Achieve assembly rates of up to 2300 ±10% pieces per hour, enabling scalable production without compromising precision.
Sub-Millimeter Accuracy: With placement accuracy of ±0.1mm, this machine is ideal for applications requiring tight tolerances and consistent product alignment.
Advanced Vision Guidance: Cameras positioned above and below the assembly track provide real-time monitoring, correction, and quality assurance.
Flexible Compatibility: Designed as a universal assembly platform, the machine can be adapted for various product types through adjustable fixtures and modular tooling.
Servo-Controlled Motion: All critical movements—including pick-and-place, tape feeding, and roller pressing—are driven by servo motors for smooth, repeatable, and energy-efficient operation.
Applications Across Industries
This versatile assembly solution is well-suited for a wide range of plastic component applications, including:
Consumer Electronics: Assembly of device housings, button panels, and interior structural parts.
Automotive Interiors: Precise placement of trim pieces, control panel components, and sensor housings.
Medical Devices: Sterile, repeatable assembly of disposable plastic components and diagnostic parts.
Industrial Components: Automated tape-and-part assembly for connectors, enclosures, and mechanical assemblies.
Why Choose Our Automated Assembly Solution?
Manufacturers today face increasing pressure to reduce labor costs, improve throughput, and maintain stringent quality standards. Our Fully Automated Plastic Injection Molding Part Assembly Machine addresses these challenges head-on by offering:
Reduced Manual Labor: Minimize operator dependency and lower labor costs through full automation.
Enhanced Quality Control: Built-in vision inspection ensures every assembled part meets specification before leaving the line.
Quick Changeover: Modular design allows for fast adaptation to new product designs, reducing downtime between runs.
Data-Driven Insights: Optional connectivity enables production monitoring, traceability, and process optimization.
Description

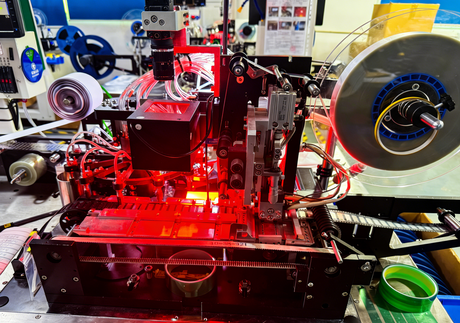

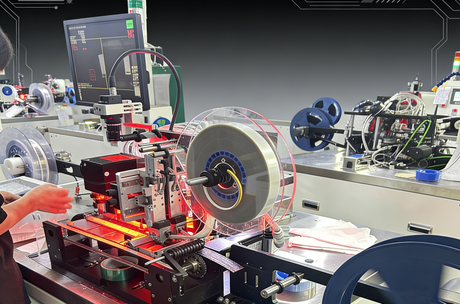

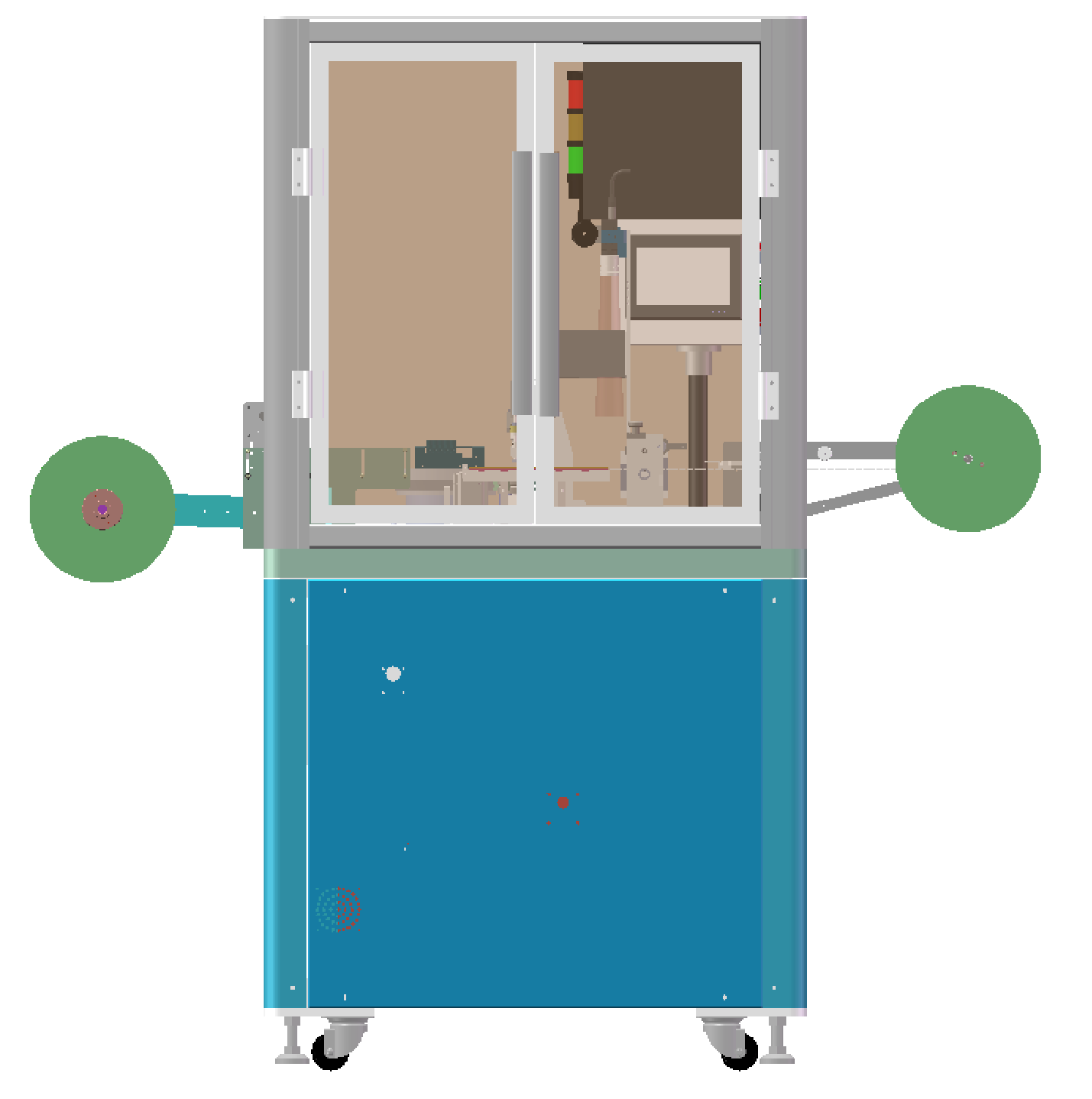

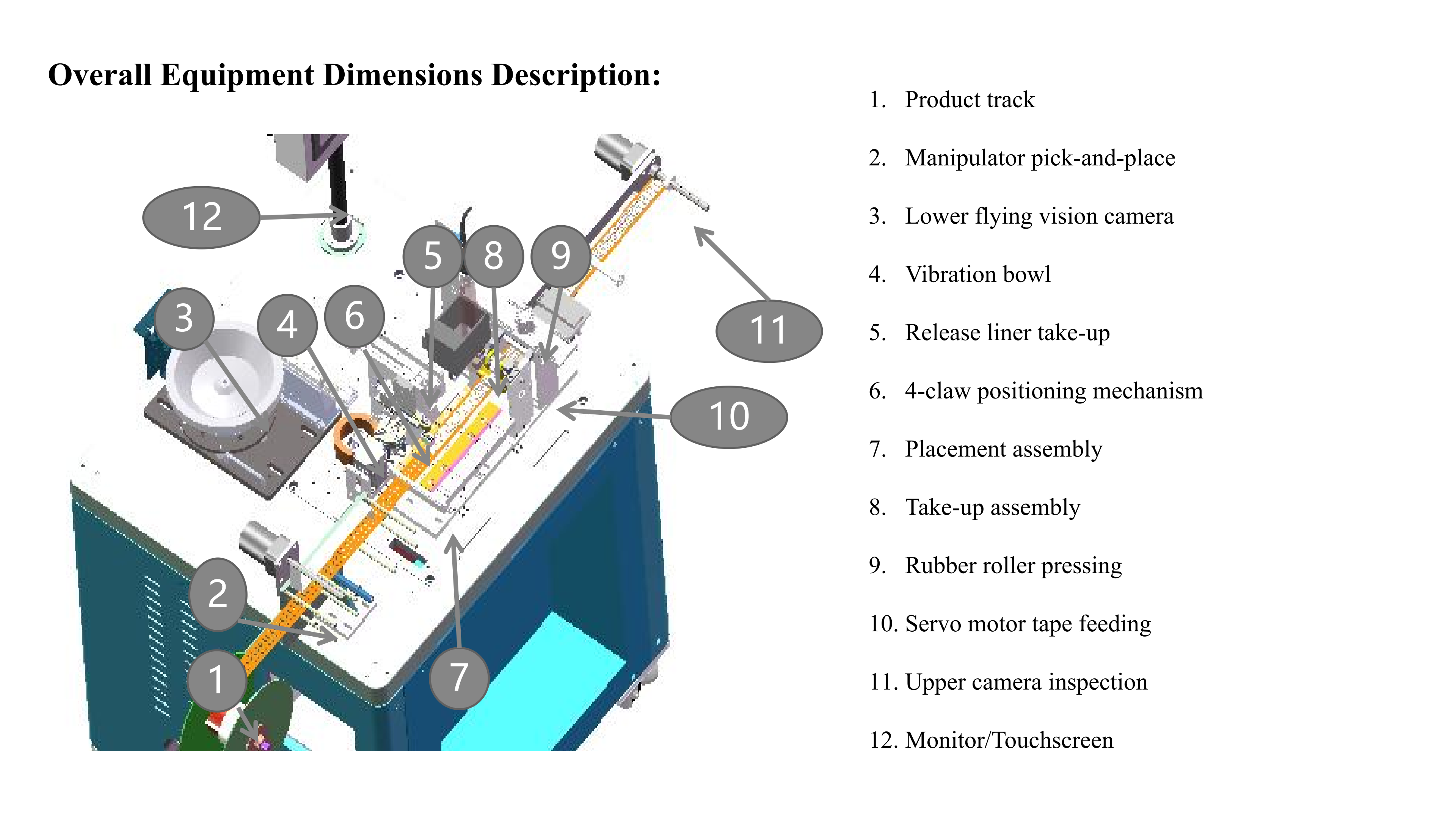

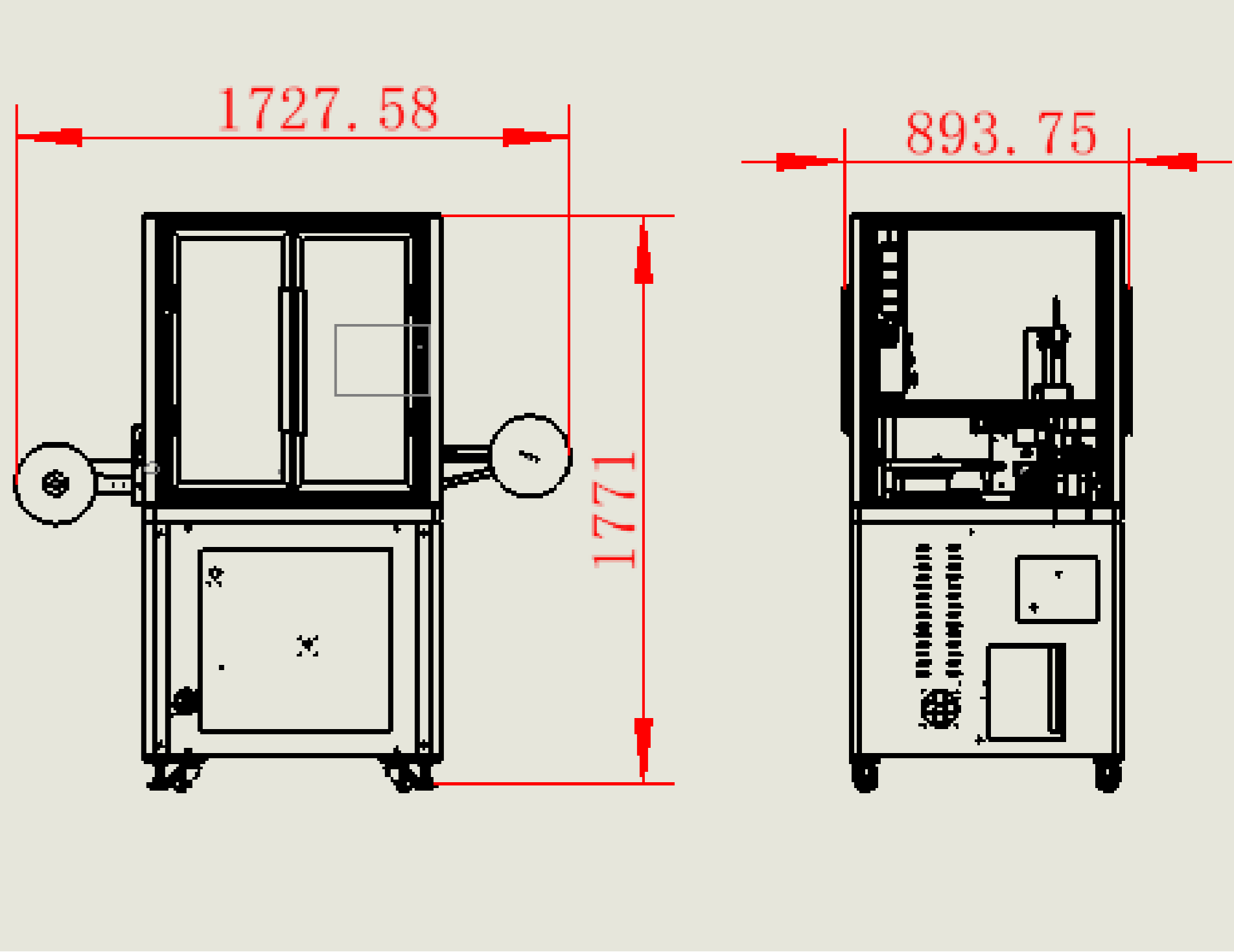

Overtall Equipment Dimension

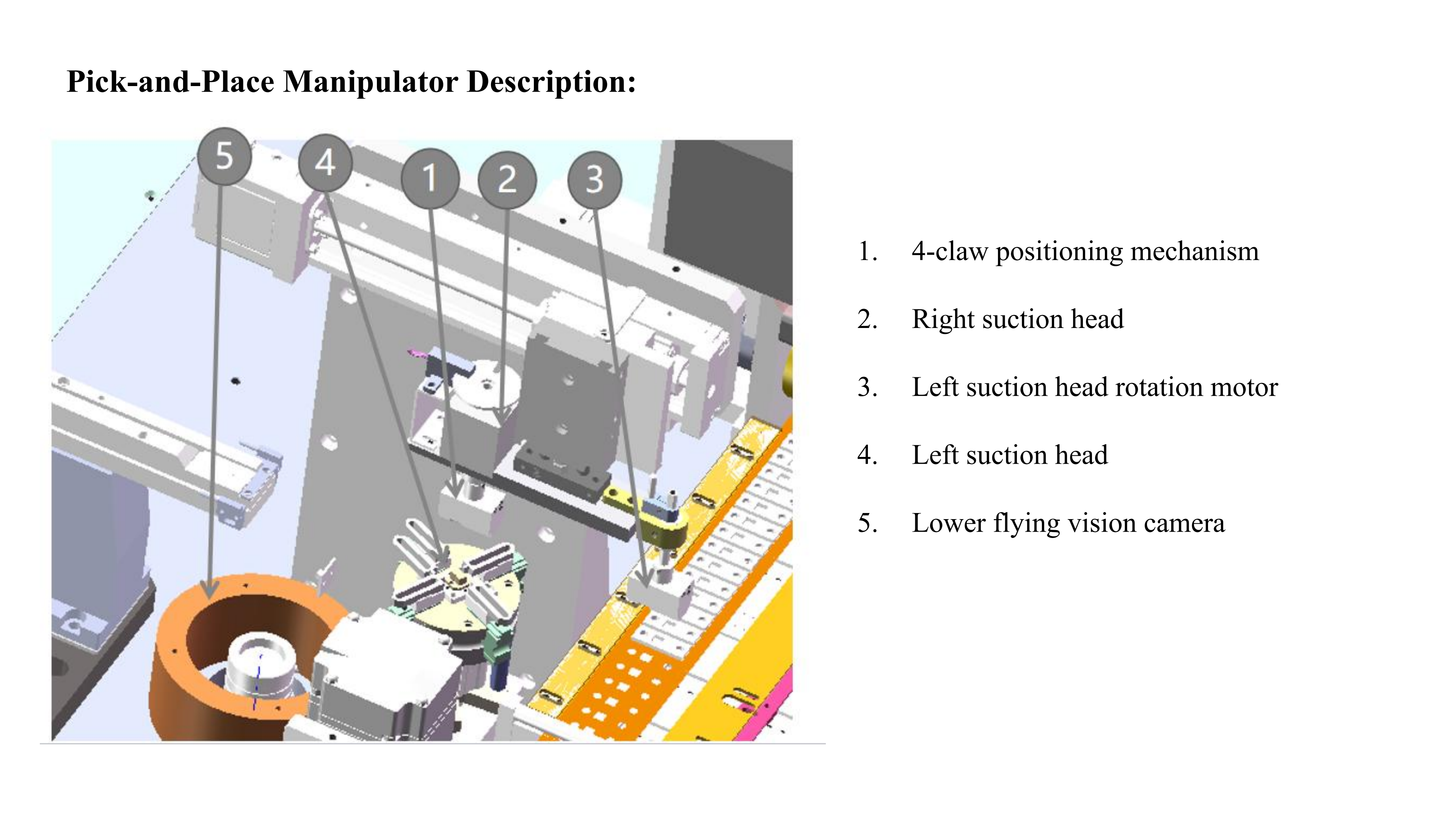

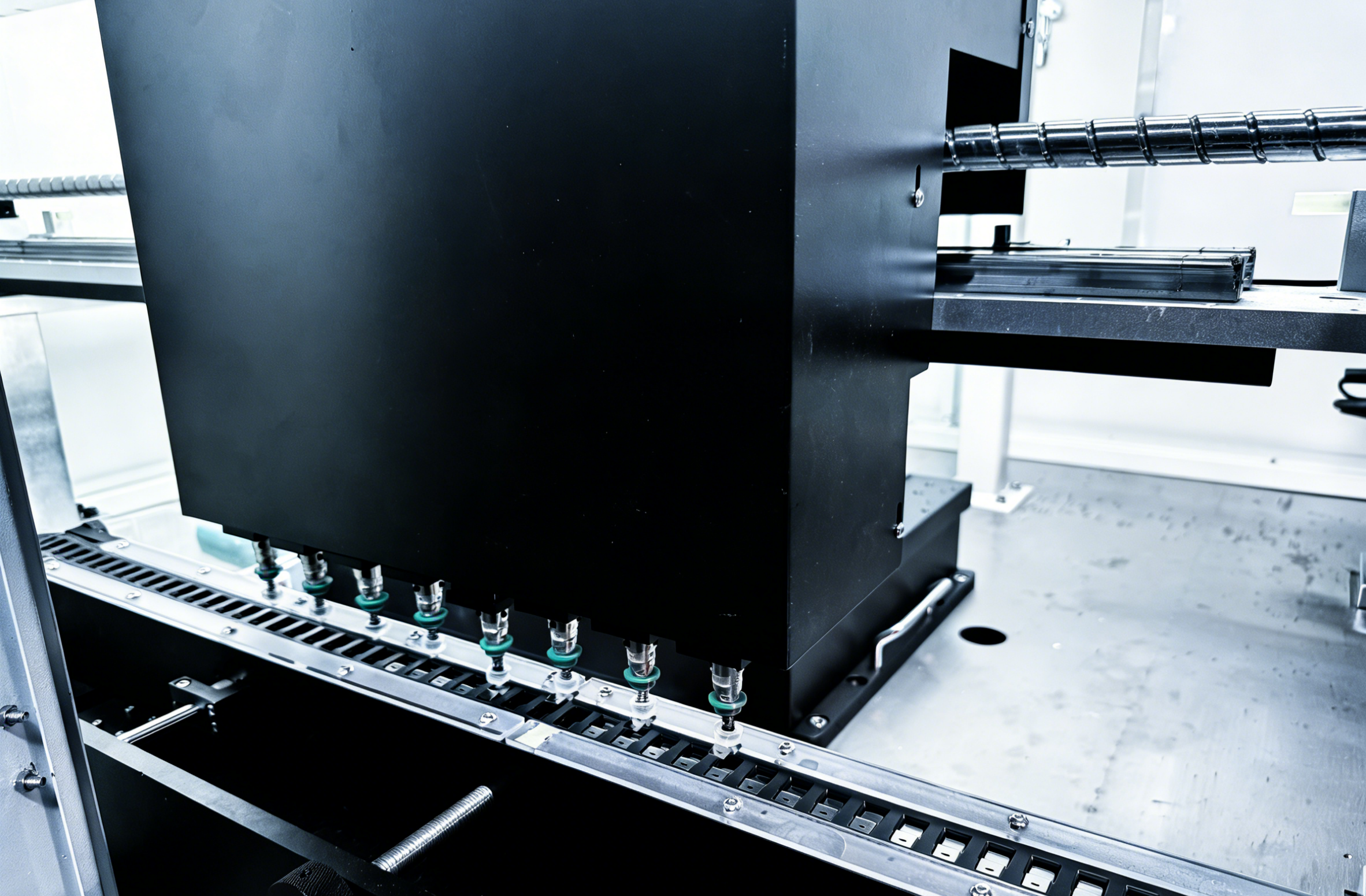

Pick & Place Manipulator

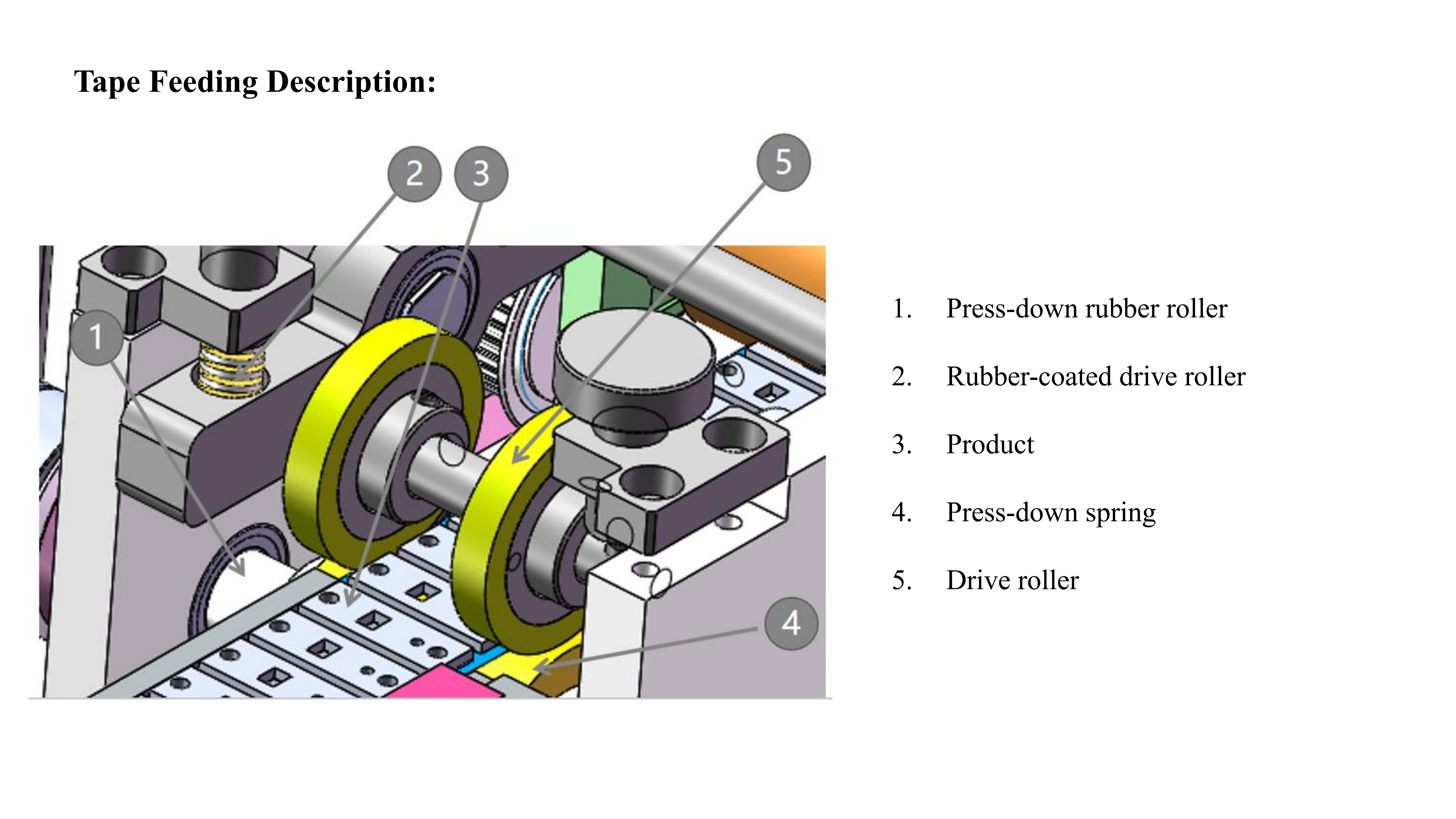

Tape Feeding

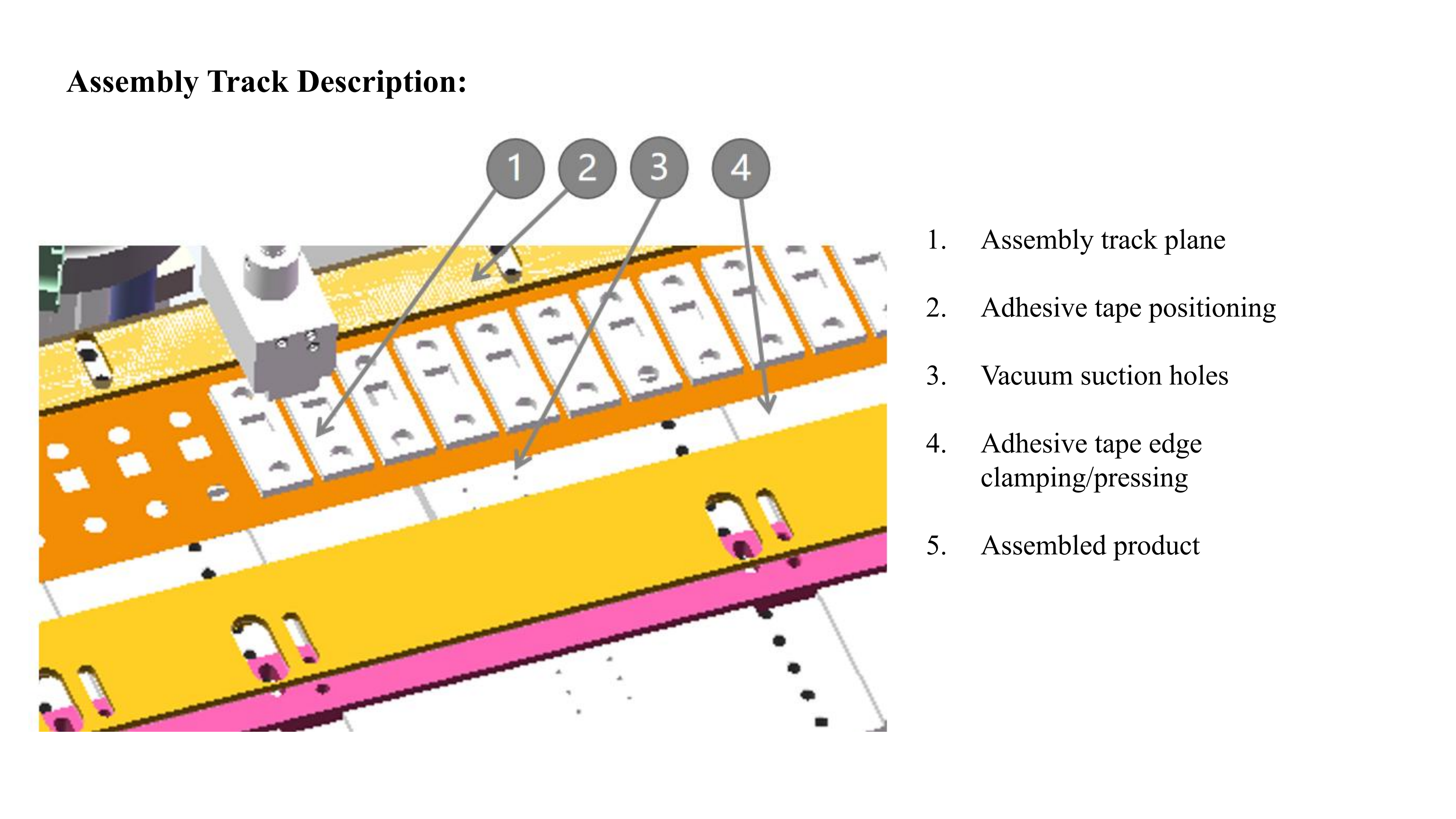

Assembly Track

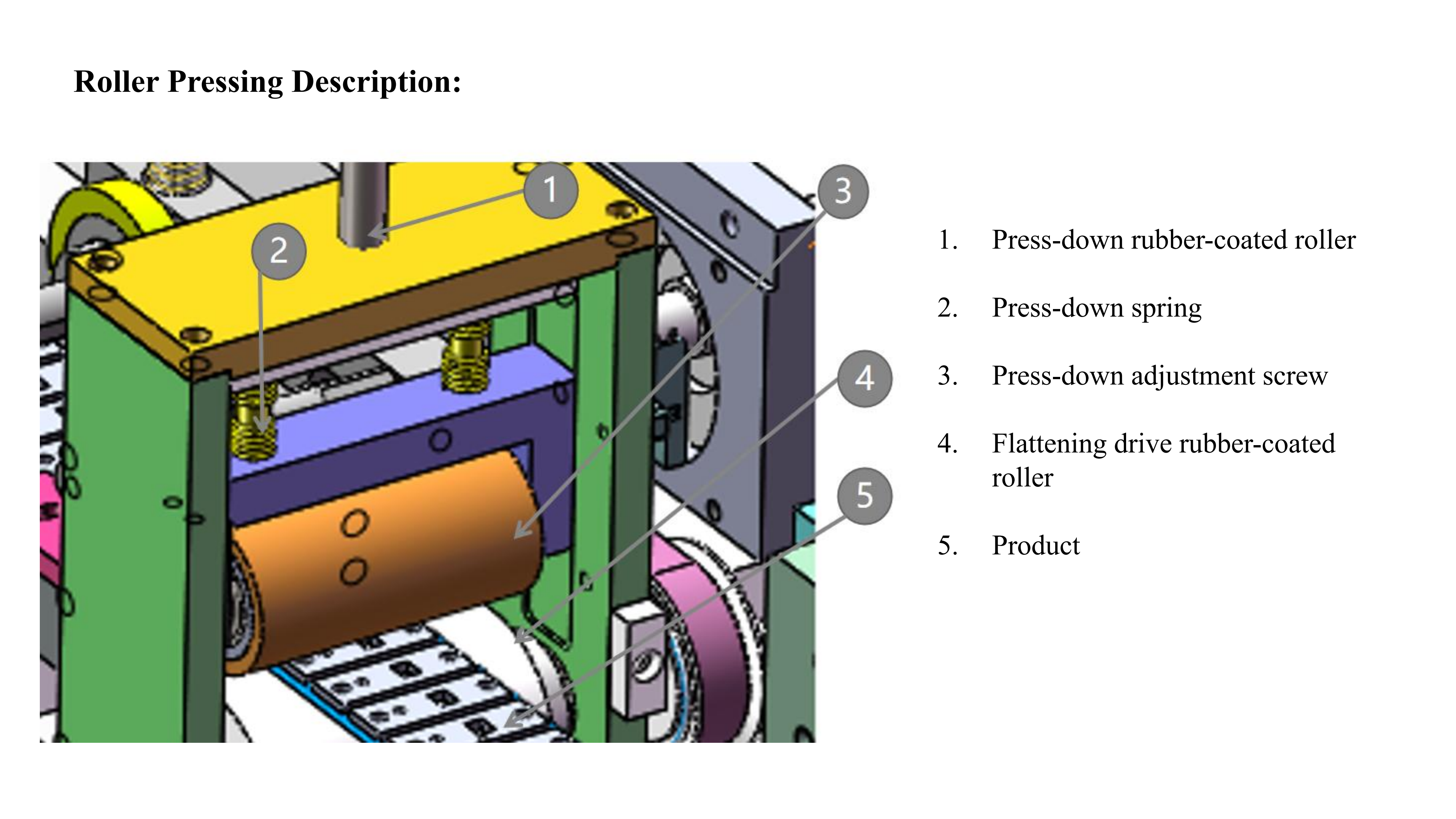

Roller Pressing

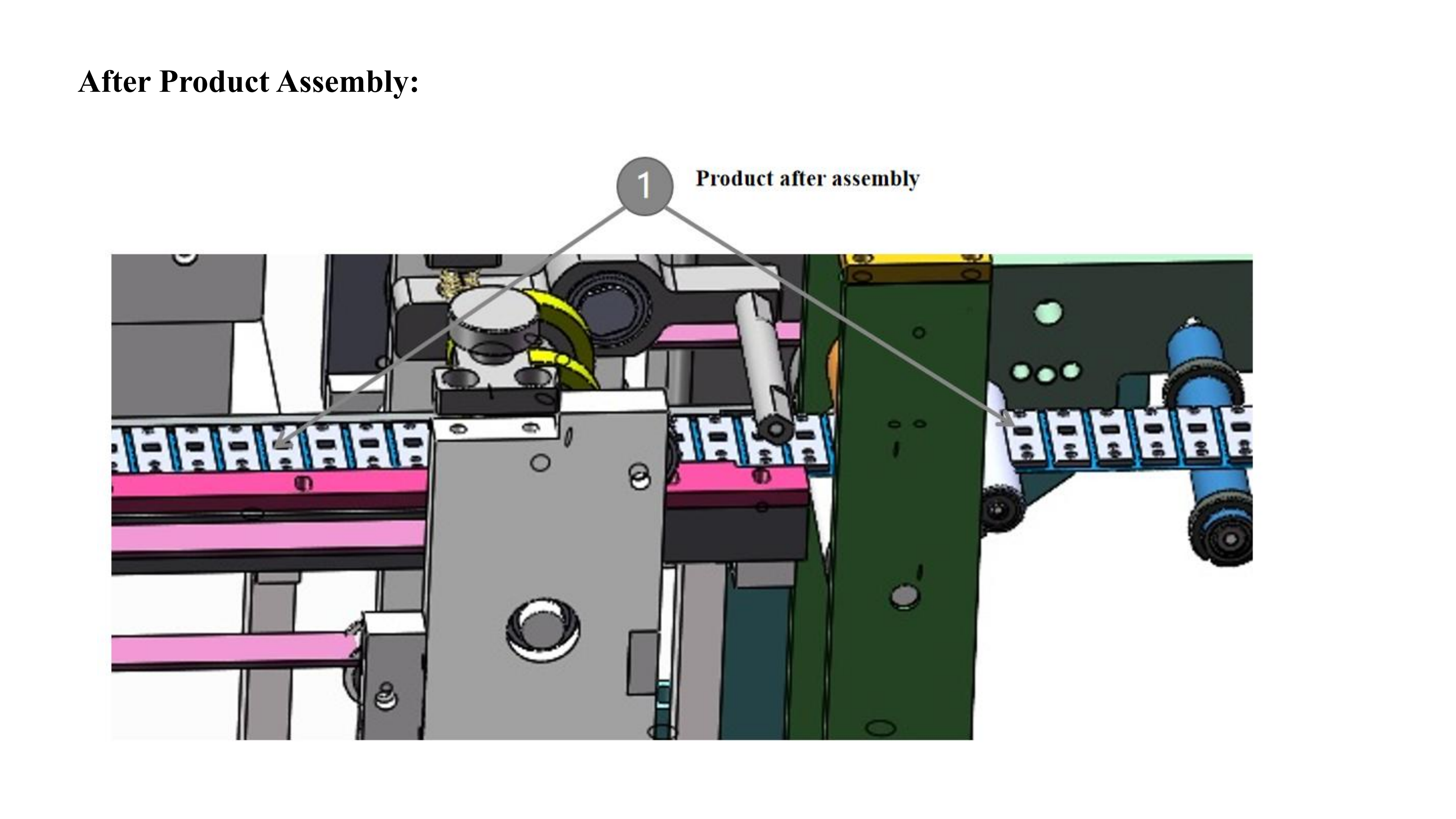

After Product Assembly
Conclusion: Elevate Your Assembly Process with Intelligent Automation
As manufacturing continues to advance toward smarter, more connected systems, investing in automated assembly technology is no longer optional—it’s essential. Our Fully Automated Plastic Injection Molding Part Assembly Machine provides a future-ready solution that enhances productivity, ensures consistency, and supports scalable growth. Whether you’re assembling small plastic components for consumer devices or precision parts for automotive applications, this system offers the reliability and performance needed to stay competitive.
Ready to transform your assembly line?
Contact our engineering team today to schedule a demonstration, discuss your specific requirements, or receive a tailored proposal. Let us help you build a smarter, faster, and more efficient production process.
