High-Speed Vision Inspection Machine with Dual Top Cameras – 20,000 PCS/Hour Quality Control Solution

Solution: Redefining High-Speed Visual Inspection for Volume Production

In today's fast-paced electronics manufacturing environment, inspection speed must keep pace with production speed—without compromising accuracy. As component densities increase and cycle times shrink, traditional inspection methods become bottlenecks that limit throughput and delay time-to-market. Our High-Speed Vision Inspection Machine with Dual Top Cameras addresses this challenge head-on, delivering inspection rates exceeding 20,000 components per hour while maintaining the precision and reliability required for zero-defect quality programs. Engineered for manufacturers of SMD components, connectors, terminals, and precision stamped parts, this system represents the convergence of high-speed automation and advanced machine vision technology.

The Critical Role of Inspection in Modern Electronics Manufacturing

In the precision-driven world of electronics manufacturing, the adage "quality cannot be inspected into a product" tells only part of the story. While robust process control remains the foundation of manufacturing excellence, comprehensive final inspection serves as the indispensable safety net that ensures only conforming products reach customers. For manufacturers of surface-mount components, connectors, terminals, and precision stamped parts, the inspection station represents the last opportunity to identify and remove defects before they become customer problems—with all the associated costs of returns, rework, reputation damage, and lost business.

The stakes could not be higher. A single defective component that escapes detection can halt an entire SMT assembly line, causing thousands of dollars in downtime while technicians struggle to identify the source of placement failures or soldering defects. In automotive electronics, a defective terminal can compromise critical safety systems. In medical devices, component quality directly impacts patient outcomes. In consumer electronics, visible defects erode brand reputation and customer loyalty.

The Technology Gap: Why Traditional Systems Fall Short

1. Processing Power Limitations
Traditional vision controllers lack the processing throughput to analyze high-resolution images at production-line speeds. As component densities increase and feature sizes shrink, the amount of data required for reliable inspection grows exponentially. Without dedicated processing acceleration, systems must either reduce resolution (missing subtle defects) or slow down (creating bottlenecks).

2. Camera Technology Constraints
Standard industrial cameras often use rolling shutters that capture images line by line. When components are moving at high speed, this scanning process introduces distortion—features appear stretched or compressed, making accurate measurement impossible. Global shutter cameras eliminate this distortion but require more sophisticated synchronization and processing.

3. Lighting Inconsistencies
High-speed inspection demands consistent, powerful illumination that can freeze motion without creating hot spots or shadows. Traditional lighting systems often struggle to provide adequate intensity at the precise moment of image capture, resulting in inconsistent image quality that compromises inspection reliability.

The Challenge: Inspection as a Production Bottleneck

In high-volume manufacturing, every millisecond counts. When production lines operate at speeds exceeding 20,000 components per hour, inspection systems must match that pace—or faster—to avoid becoming the limiting factor in overall equipment effectiveness (OEE). Traditional vision systems often struggle to achieve these speeds while maintaining adequate resolution for reliable defect detection. The result is either slowed production or compromised inspection quality, both unacceptable in competitive markets where customers demand perfect quality and rapid delivery.

Our solution eliminates this trade-off by combining Keyence's most advanced vision technology with optimized lighting, precision mechanics, and intelligent software to deliver inspection performance that keeps pace with the fastest production lines.

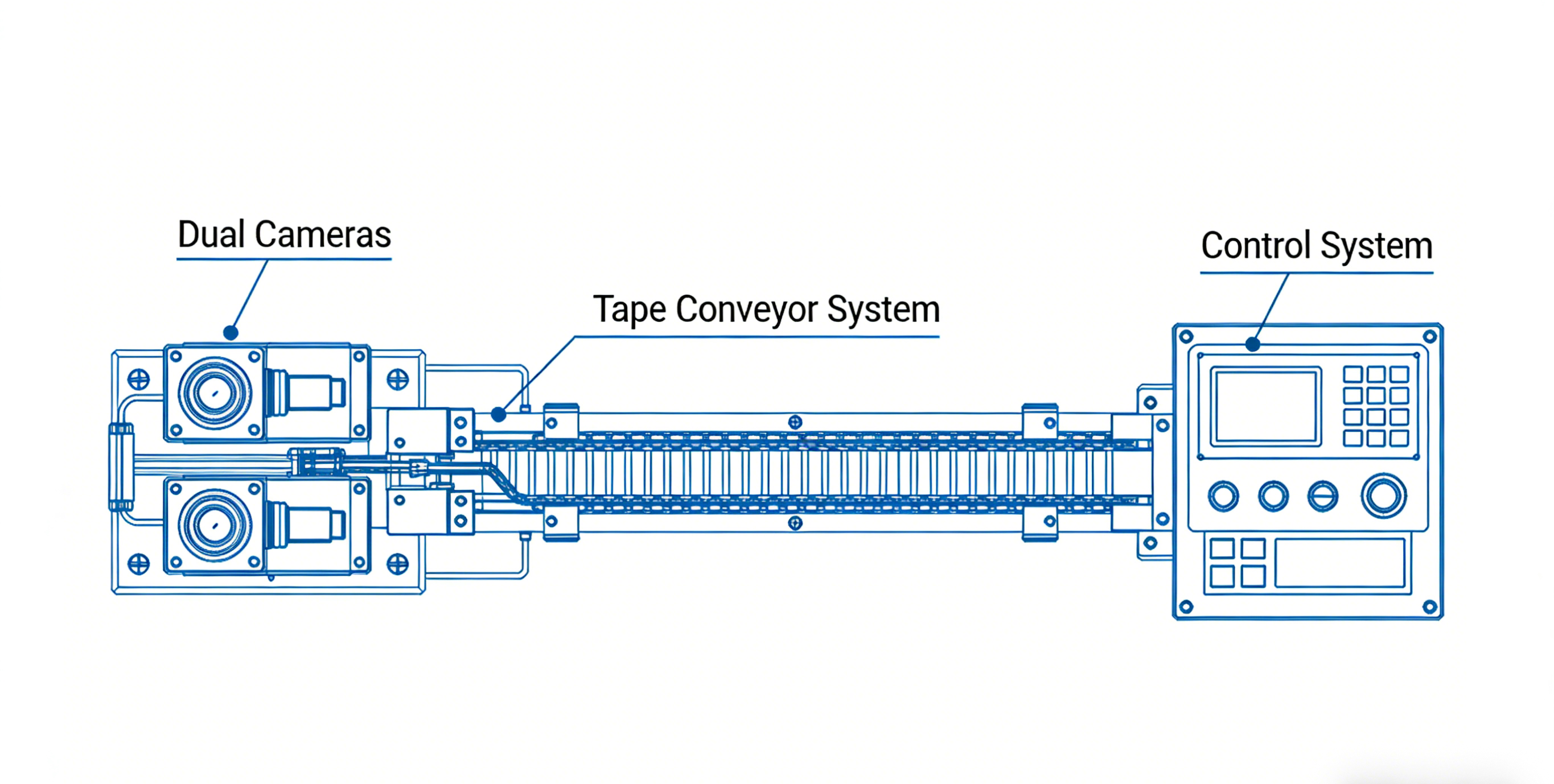

How It Works: High-Speed Inspection with Dual Camera Coverage

The Keyence CV-X170F vision controller, heart of the system, processes these images in real-time using proprietary algorithms optimized for speed and accuracy. Within milliseconds, the controller:

• Analyzes component presence and orientation

• Verifies dimensional compliance against programmed tolerances

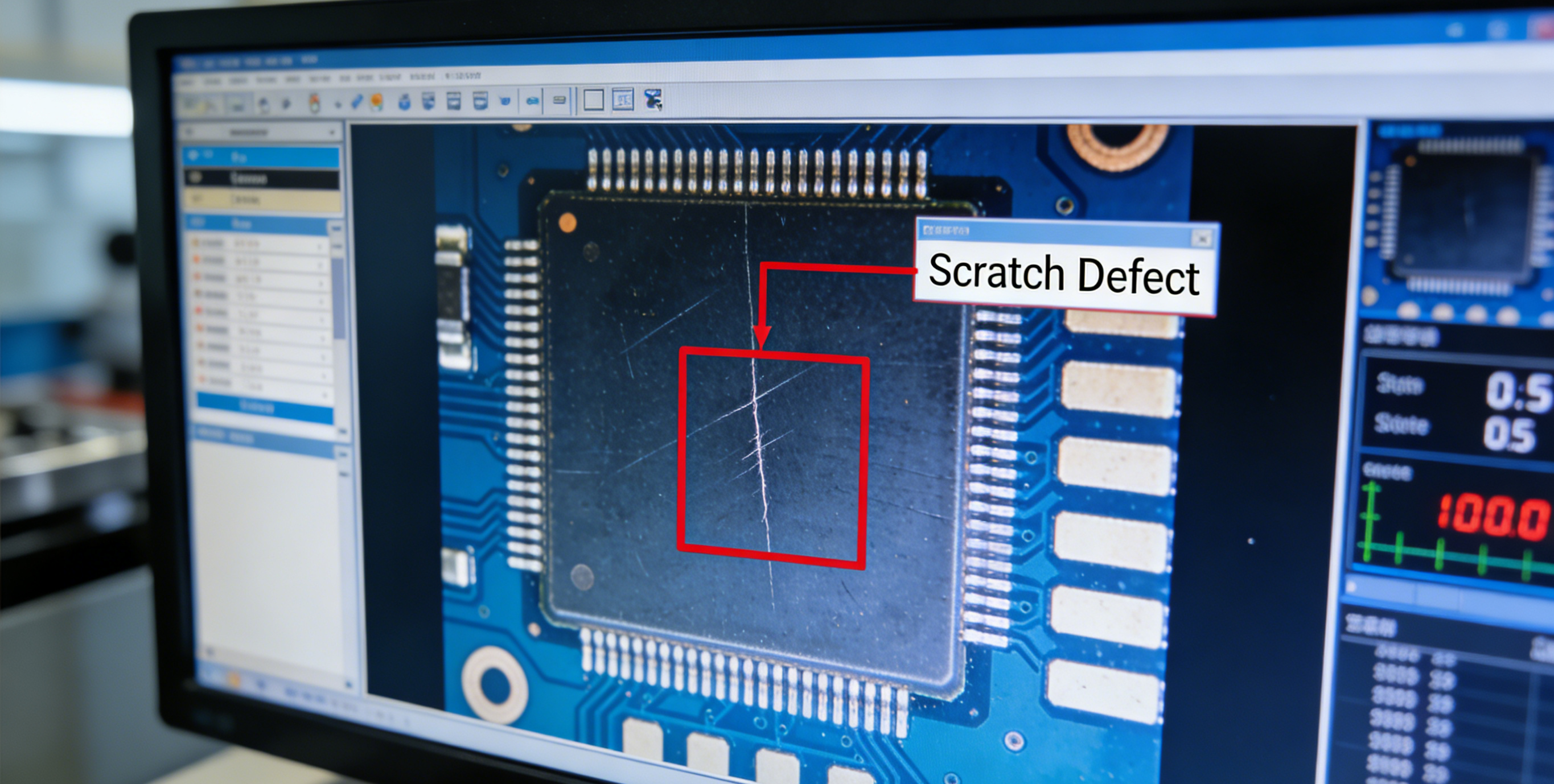

• Detects surface defects including scratches, stains, and contamination

• Confirms feature integrity and completeness

• Compares results against acceptance criteria

Key Features & Technical Advantages

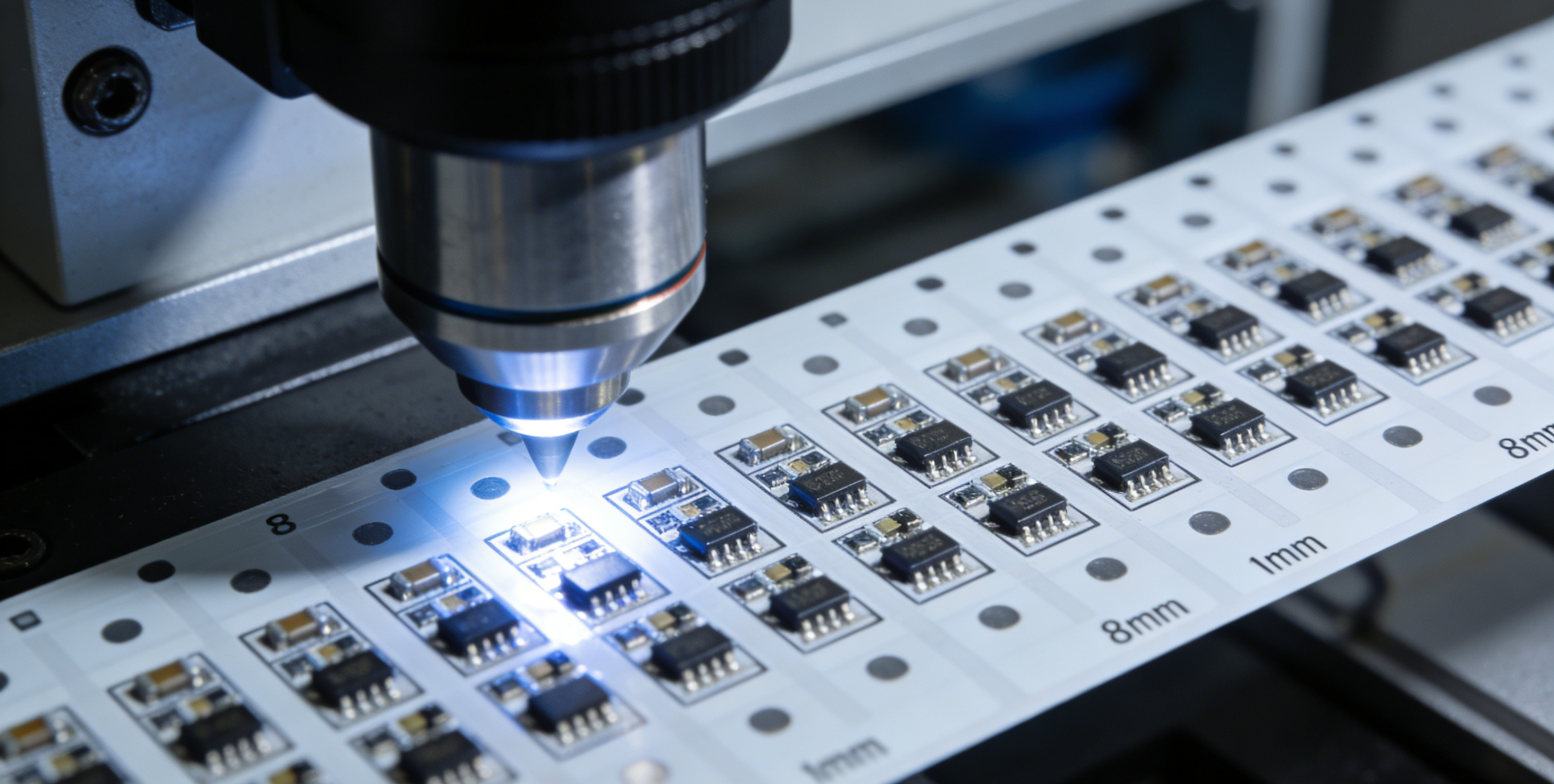

• Blazing Inspection Speed: Achieve 20,000+ components per hour for carrier tapes with 8mm pitch, enabling true inline inspection without production slowdowns.

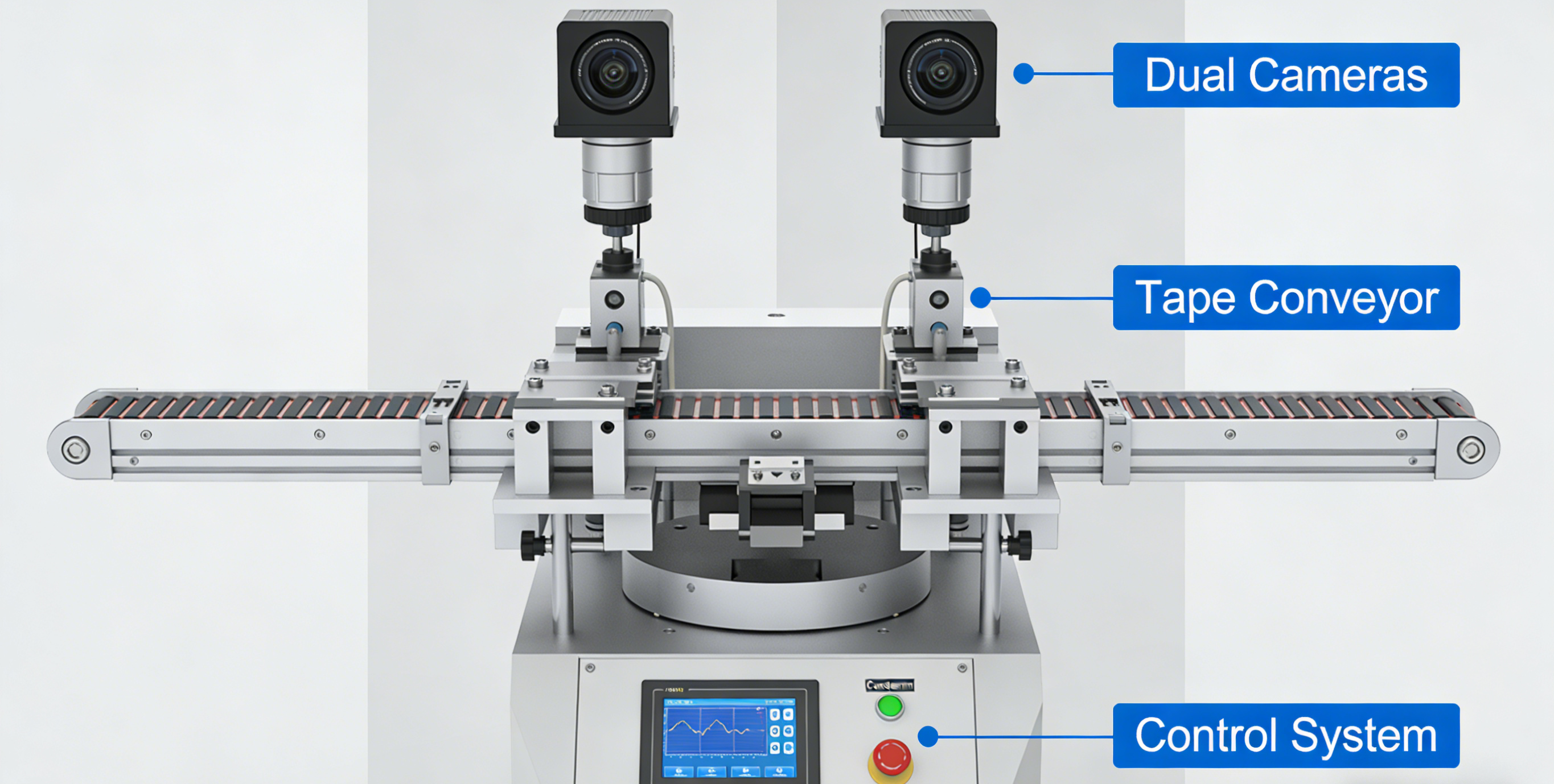

• Dual Top Camera Configuration: Two independent 500W pixel high-resolution cameras provide redundant coverage and enable inspection of wider components or simultaneous multi-feature analysis.

• Keyence CV-X Series Vision Controller: Industry-leading vision processing platform delivers unmatched speed, reliability, and algorithm versatility for demanding inspection applications.

• High-Resolution Imaging: CV-H500M cameras with 500W pixel resolution capture fine details essential for detecting subtle defects and measuring critical dimensions.

• Universal Compatibility: Designed as a flexible platform, the system can be adapted for different component types and carrier tape formats through software configuration and modular tooling.

• Comprehensive Inspection Capabilities: Supports a wide range of inspection functions including presence/absence, orientation verification, dimensional measurement, surface defect detection, and feature integrity.

• Robust Construction: Built for continuous 24/7 operation in demanding manufacturing environments with industrial-grade components and thermal management.

• User-Friendly Operation: Intuitive interface and recipe management enable quick changeovers between different products without extensive programming.

Vision System Deep Dive: Keyence CV-X Series

At the core of our inspection machine lies the Keyence CV-X170F vision controller, widely recognized as one of the most powerful and versatile vision processing platforms available:

The CV-H500M cameras paired with this controller deliver 500W pixel resolution with exceptional sensitivity and low noise, capturing images that reveal defects invisible to lower-resolution systems. The combination of high resolution and high-speed capture ensures that even fast-moving components are imaged with crystal clarity.

Applications Across Electronics Manufacturing

This versatile inspection solution serves a wide range of applications:

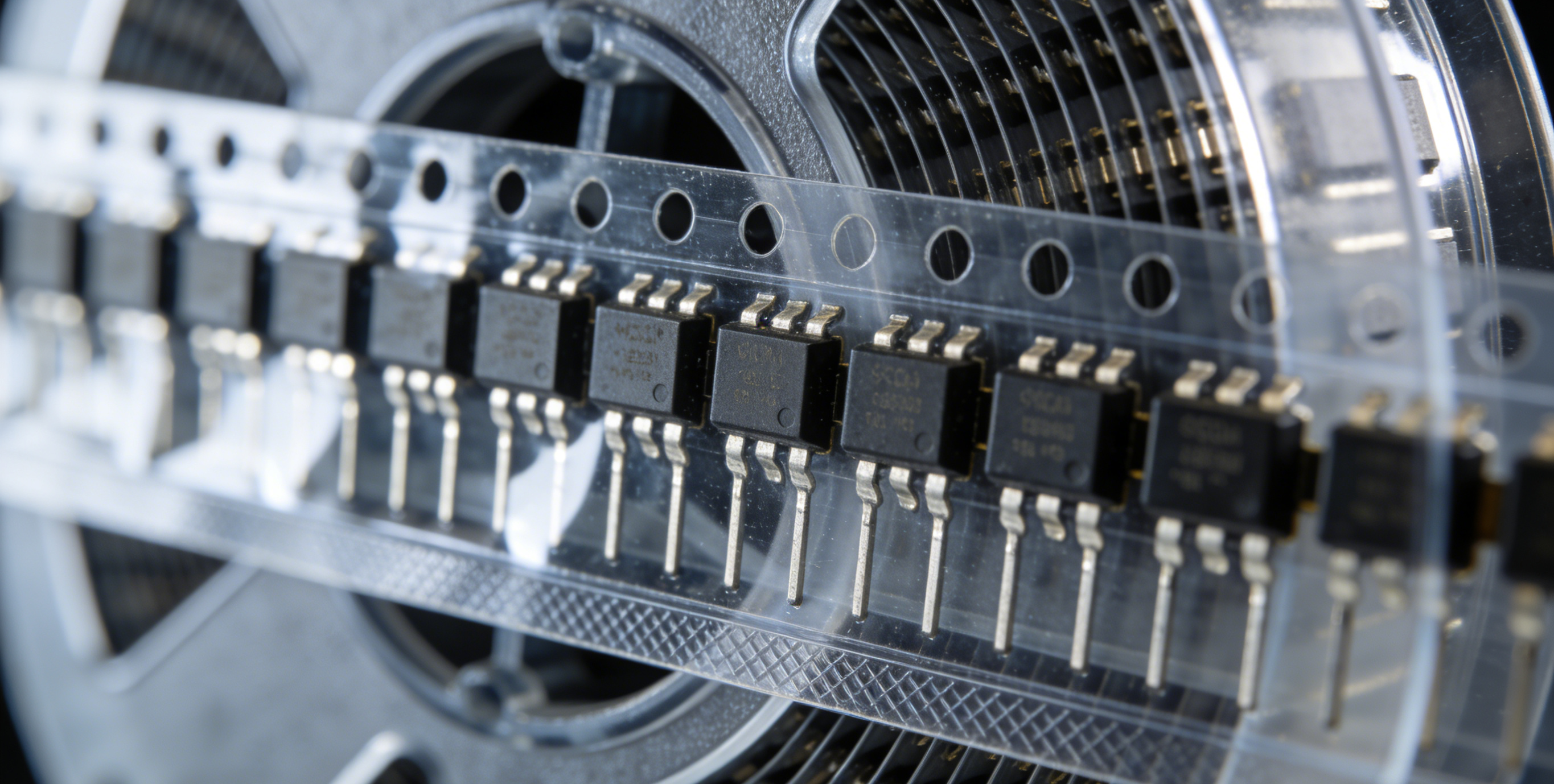

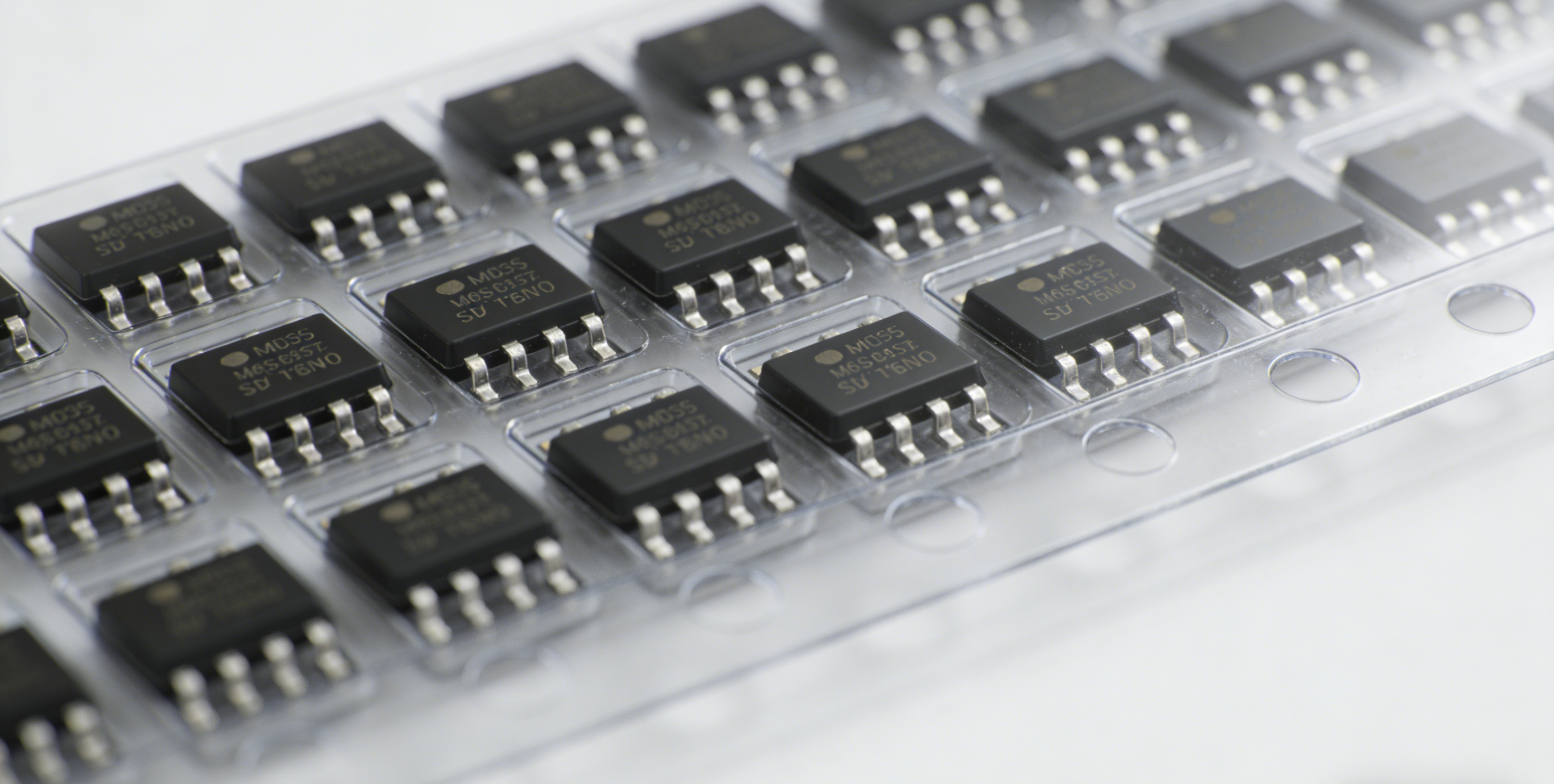

• SMD Components: Resistors, capacitors, diodes, and transistors on carrier tape

• Connectors & Terminals: Precision verification of contacts, pins, and housing integrity

• Stamped Parts: Inspection of shielding covers, contacts, and mechanical components

• LED Components: Verification of LED chips and packages before assembly

• Medical Device Components: Critical inspection for implantable and diagnostic device parts

• Automotive Electronics: High-reliability inspection for safety-critical components

Why Choose Our High-Speed Vision Inspection Solution?

Technical Specifications at a Glance

Conclusion: Accelerate Quality Assurance Without Compromise

In the race to deliver perfect quality at ever-increasing volumes, inspection cannot be the weak link. Our High-Speed Vision Inspection Machine with Dual Top Cameras offers a proven solution that matches the pace of your fastest production lines while delivering the precision required for zero-defect quality programs. By combining Keyence's industry-leading vision technology with robust mechanical design and intelligent software, we've created a system that helps manufacturers achieve their quality goals without sacrificing throughput.
