Introduction: Achieving Zero-Defect Stamping with Intelligent In-Line Inspection
In metal stamping and pressing operations, even minor defects can lead to costly rework, production delays, and compromised product integrity. Traditional manual inspection is no longer viable for high-speed, high-volume manufacturing. Introducing the Press Line Inspection Solution with 1-Axis Multi-Camera System—a compact, fully integrated vision inspection system designed to deliver real-time, multi-angle quality assurance directly within your stamping line. By combining four strategically positioned cameras with optional AI deep learning technology, this system enables manufacturers to detect defects instantly, reduce waste, and maintain uninterrupted production flow.
Key Features & Technical Advantages

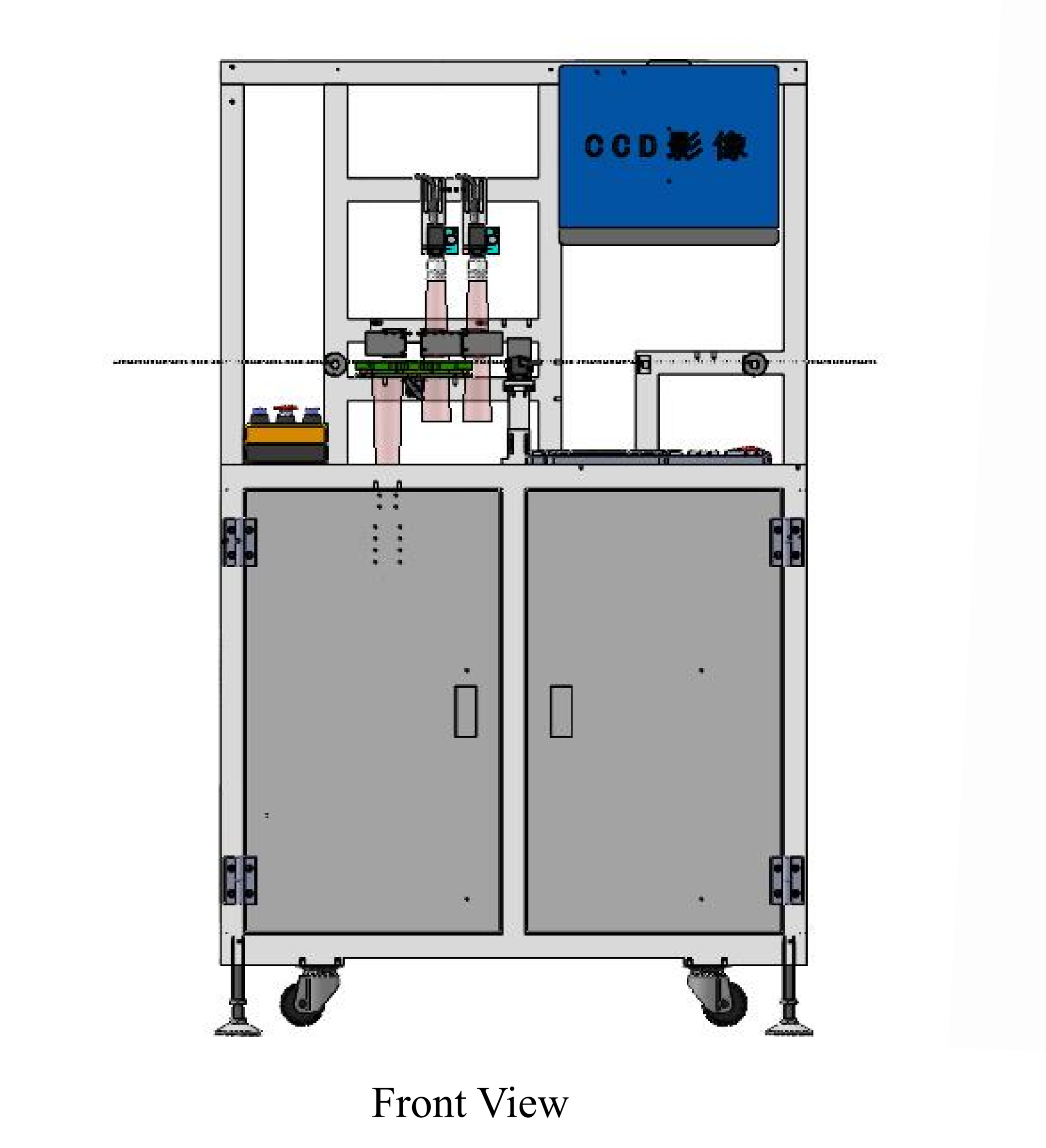

Compact Footprint: With dimensions of just 600mm (L) × 600mm (W) × 1800mm (H), this system integrates easily into existing press lines without requiring significant floor space.
Flexible Vision Options: Choose between an AI deep learning system for adaptive defect recognition or a KEYENCE CV-X series system for high-speed, rule-based inspection.
Adjustable Camera Positioning: All four cameras feature adjustable mounts, allowing precise alignment for different part geometries and inspection requirements.
Optimized Lighting Configuration: Each camera is paired with a specialized light source—including bar lights, backlights, and ring lights—to enhance contrast and ensure accurate defect detection.
Automatic Line Stopping: Configurable defect thresholds enable the system to stop the press line when quality trends indicate a process deviation, minimizing scrap and protecting tooling.

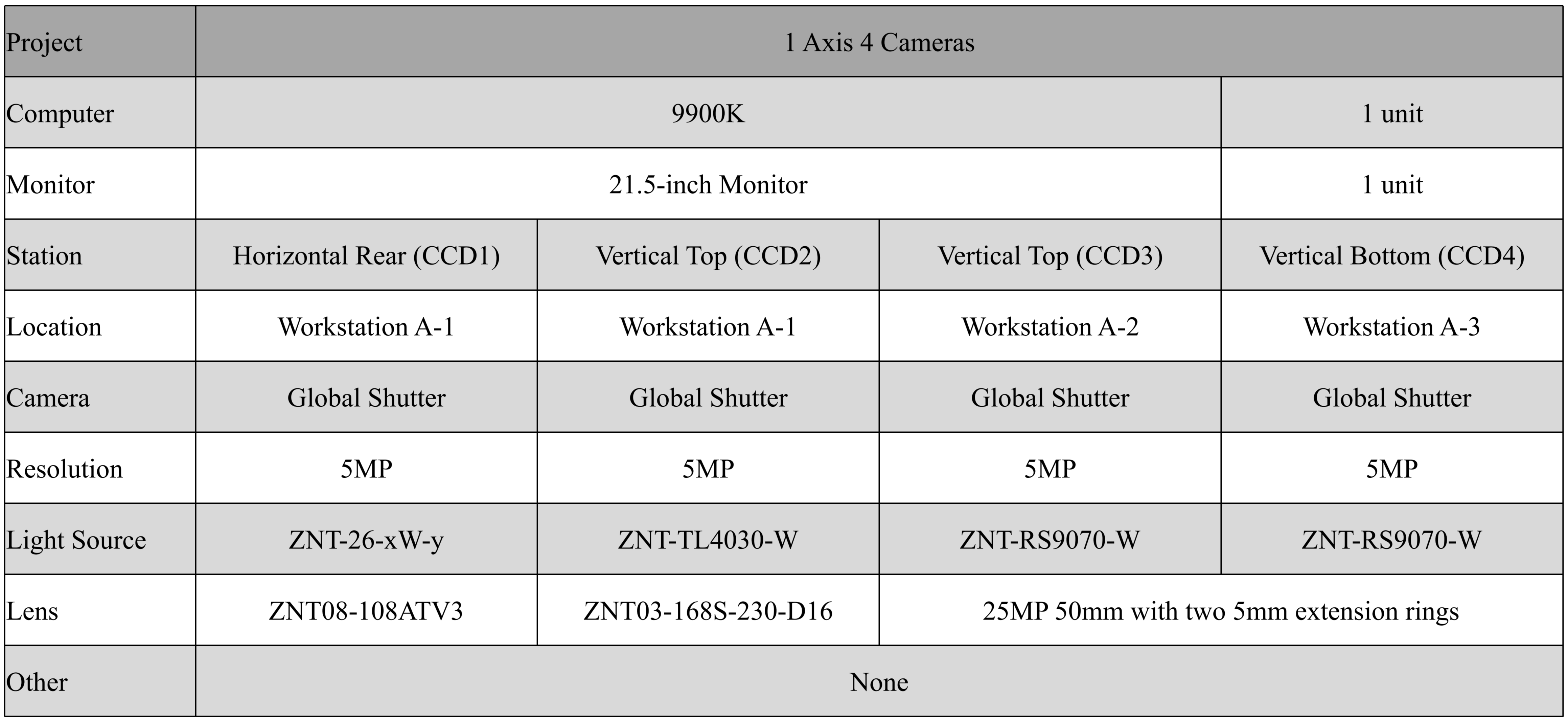

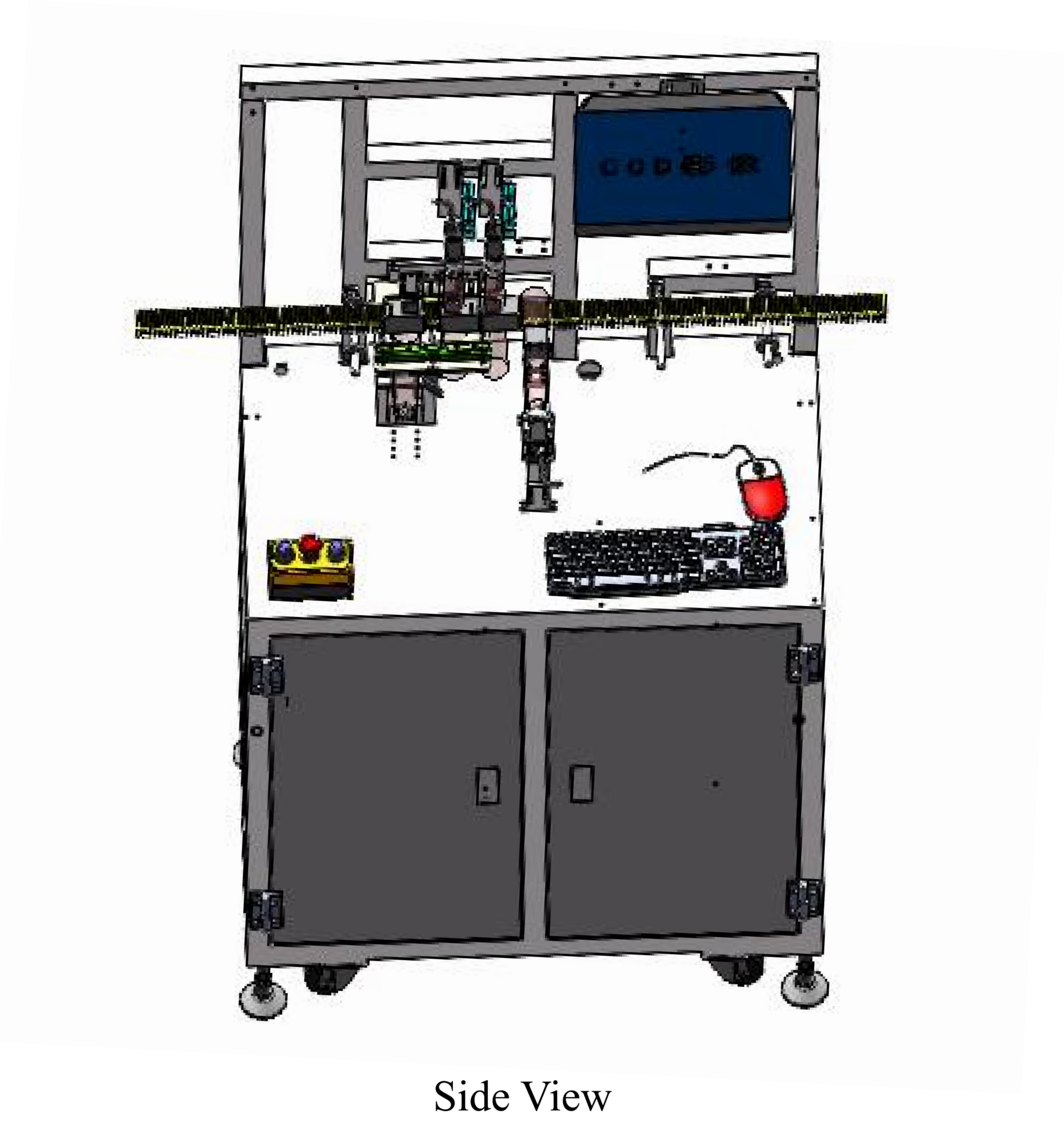

Hardware Configuration
How It Works: Multi-Angle Inspection for Complete Coverage

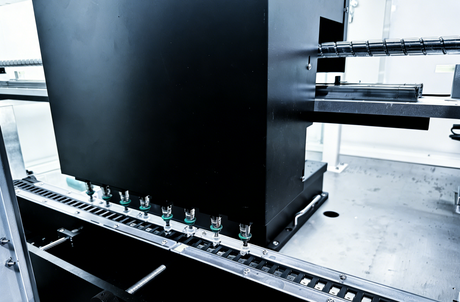

Our inspection system operates seamlessly within your press line, capturing detailed images of each stamped part from multiple perspectives. The system utilizes one adjustable material feed axis and four high-resolution cameras:

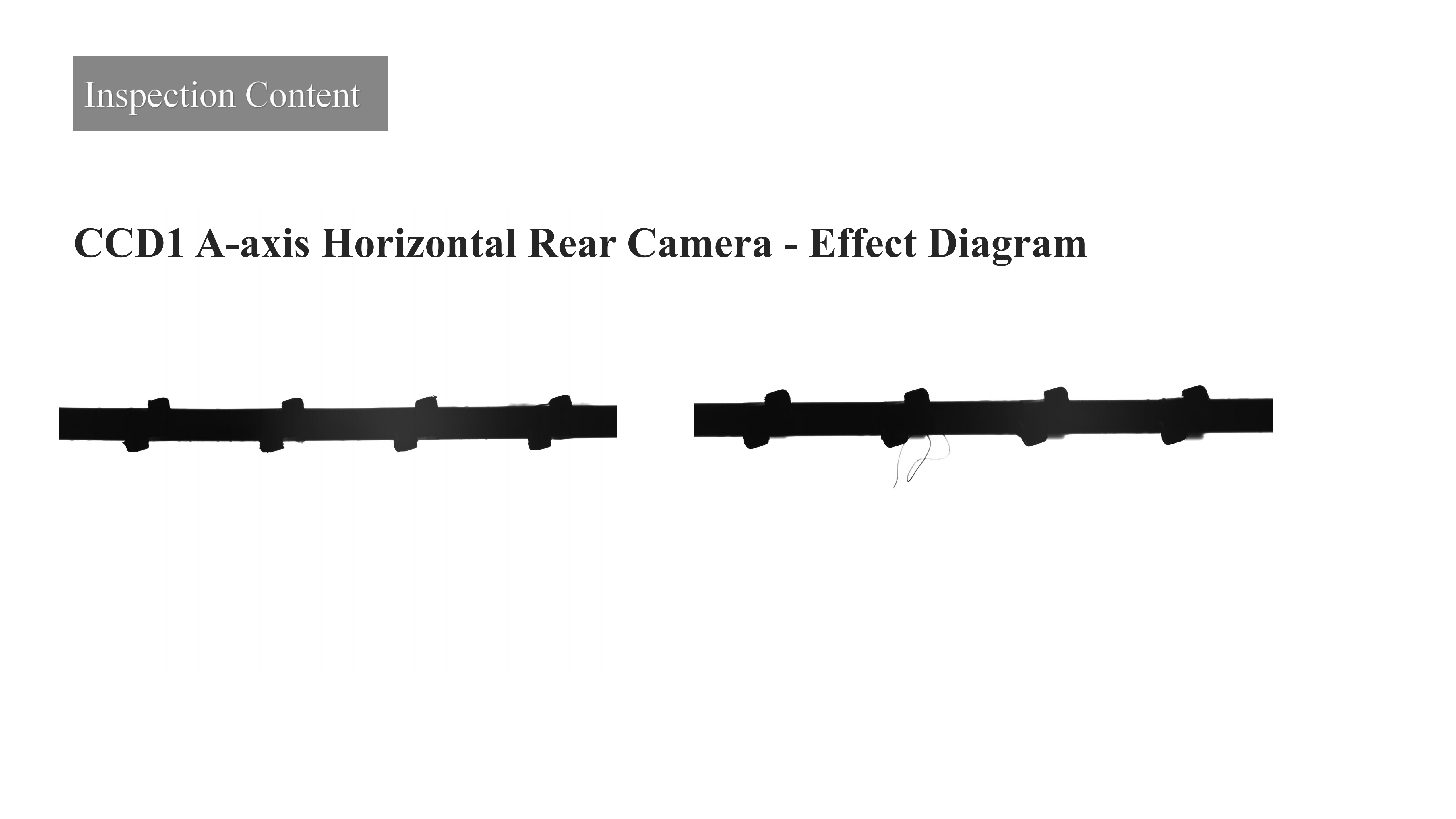

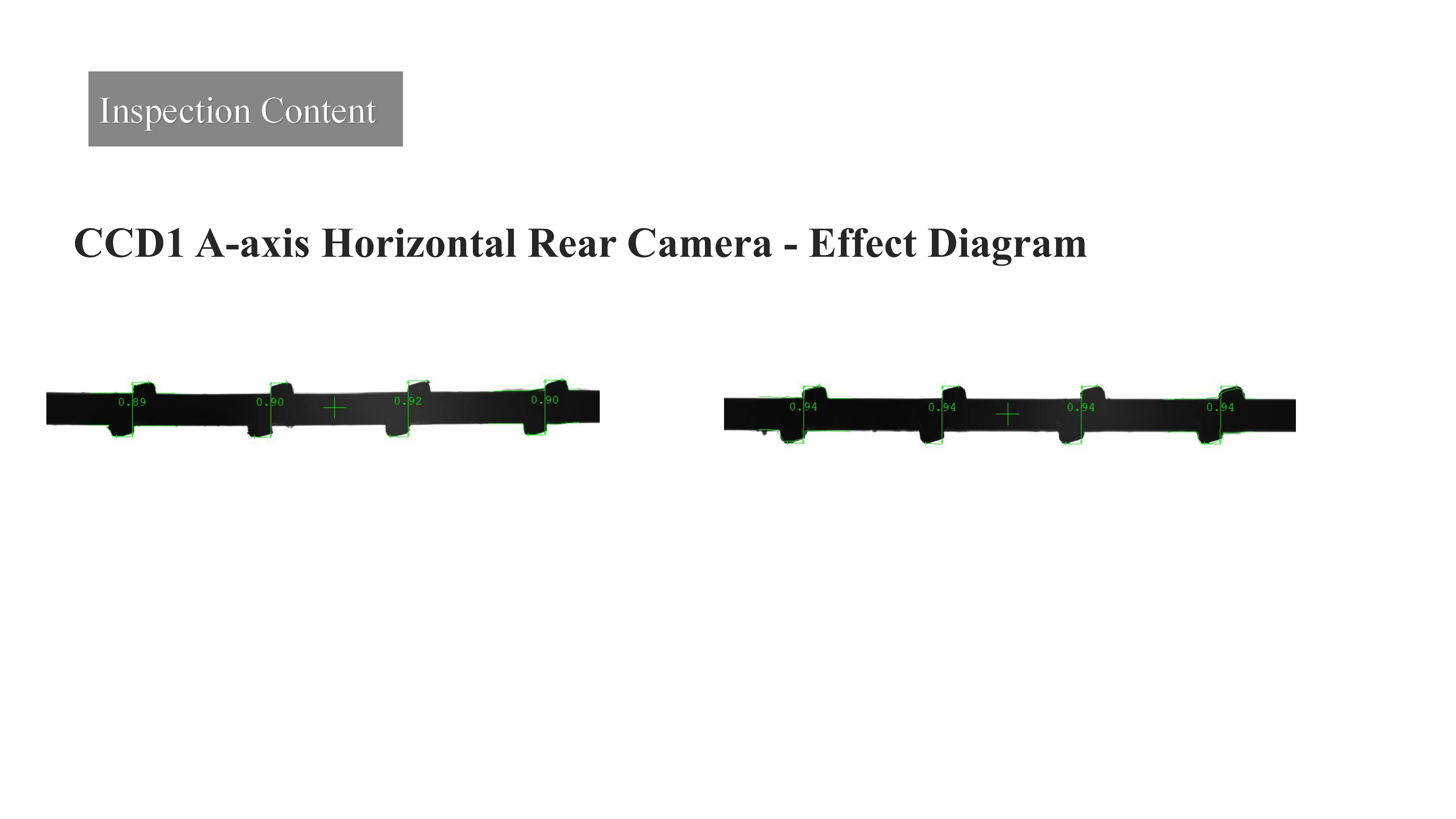

CCD1: Horizontal rear camera for side-profile inspection

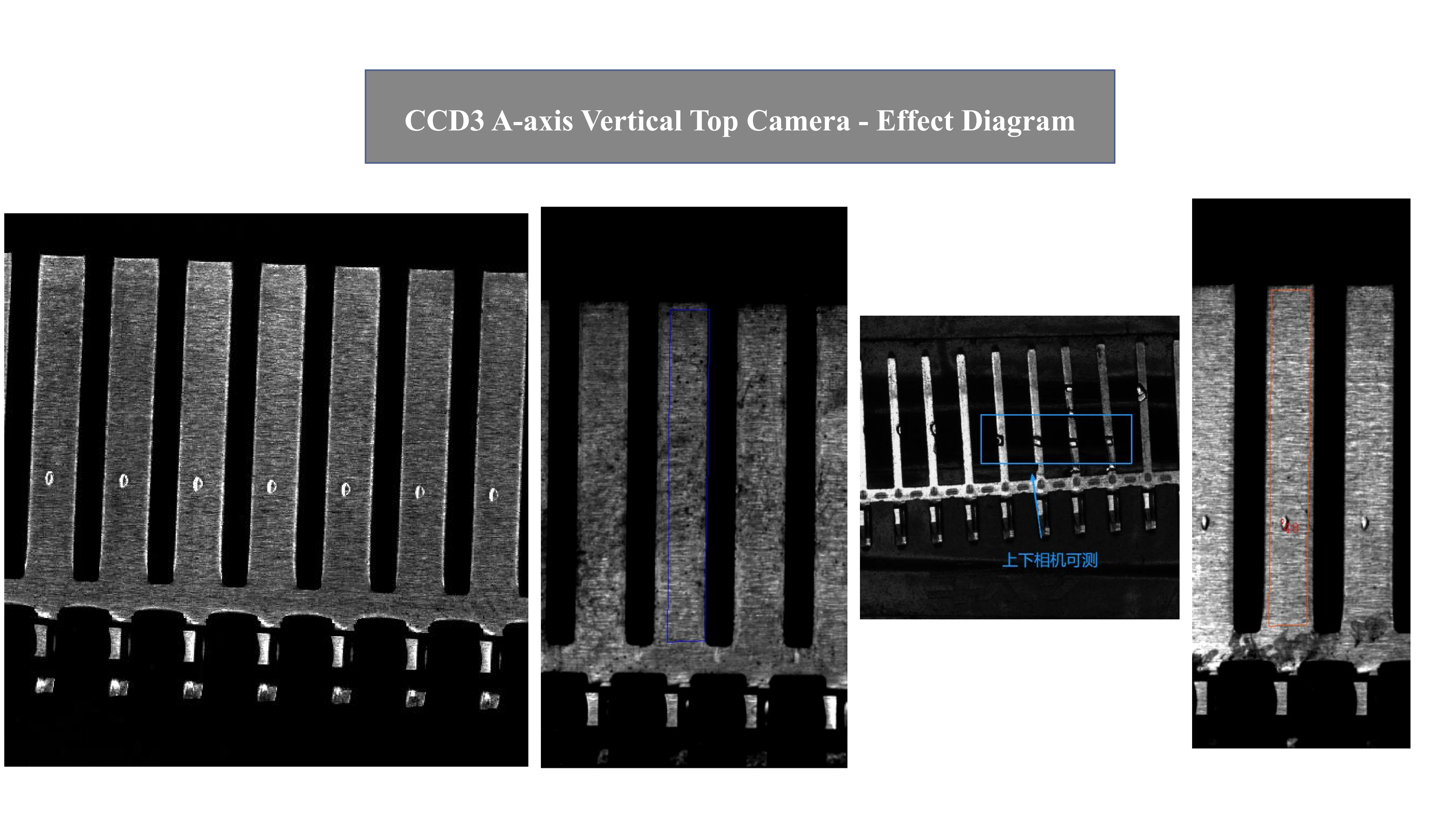

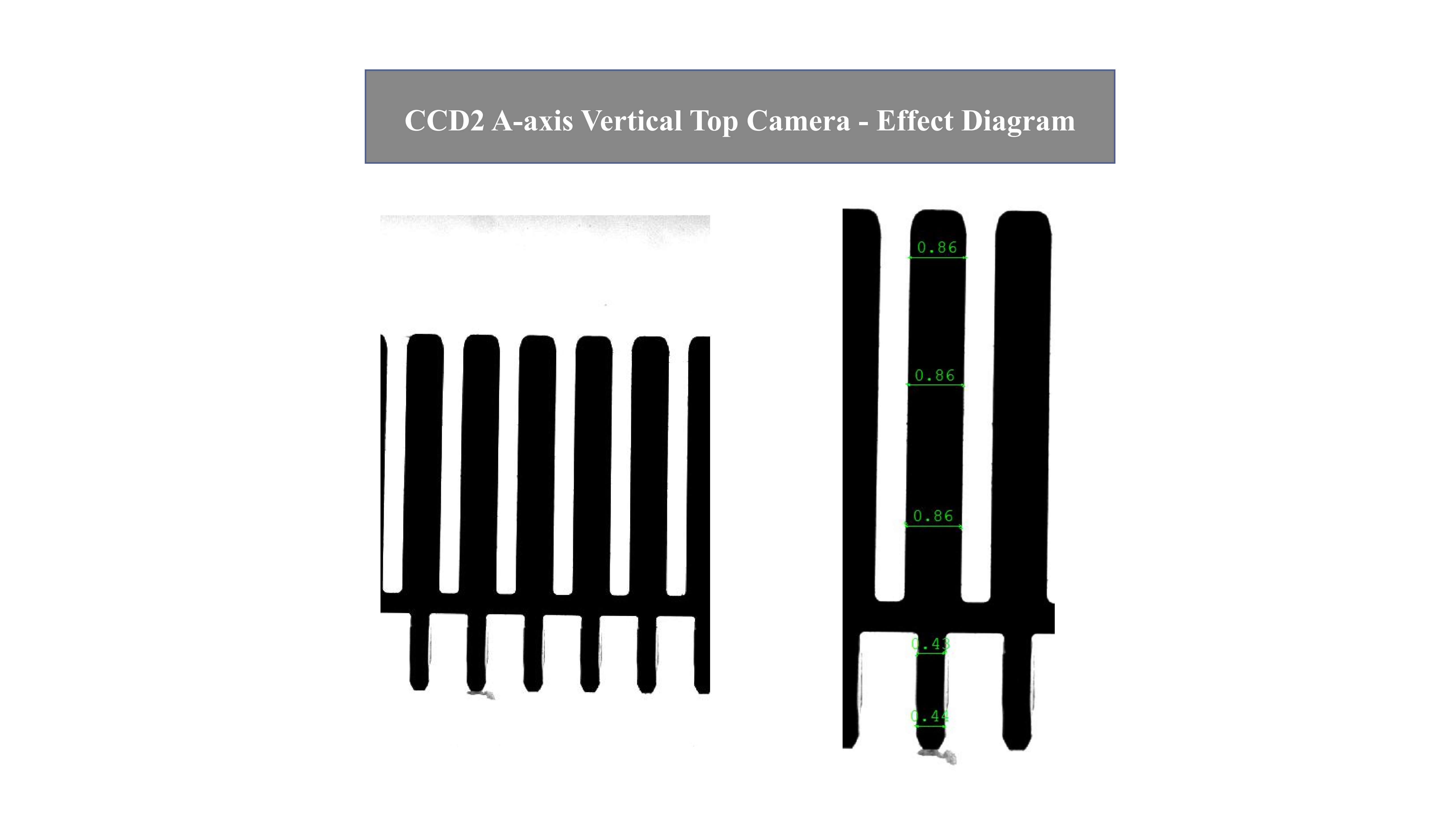

CCD2 & CCD3: Adjustable vertical top cameras for surface and top-feature analysis

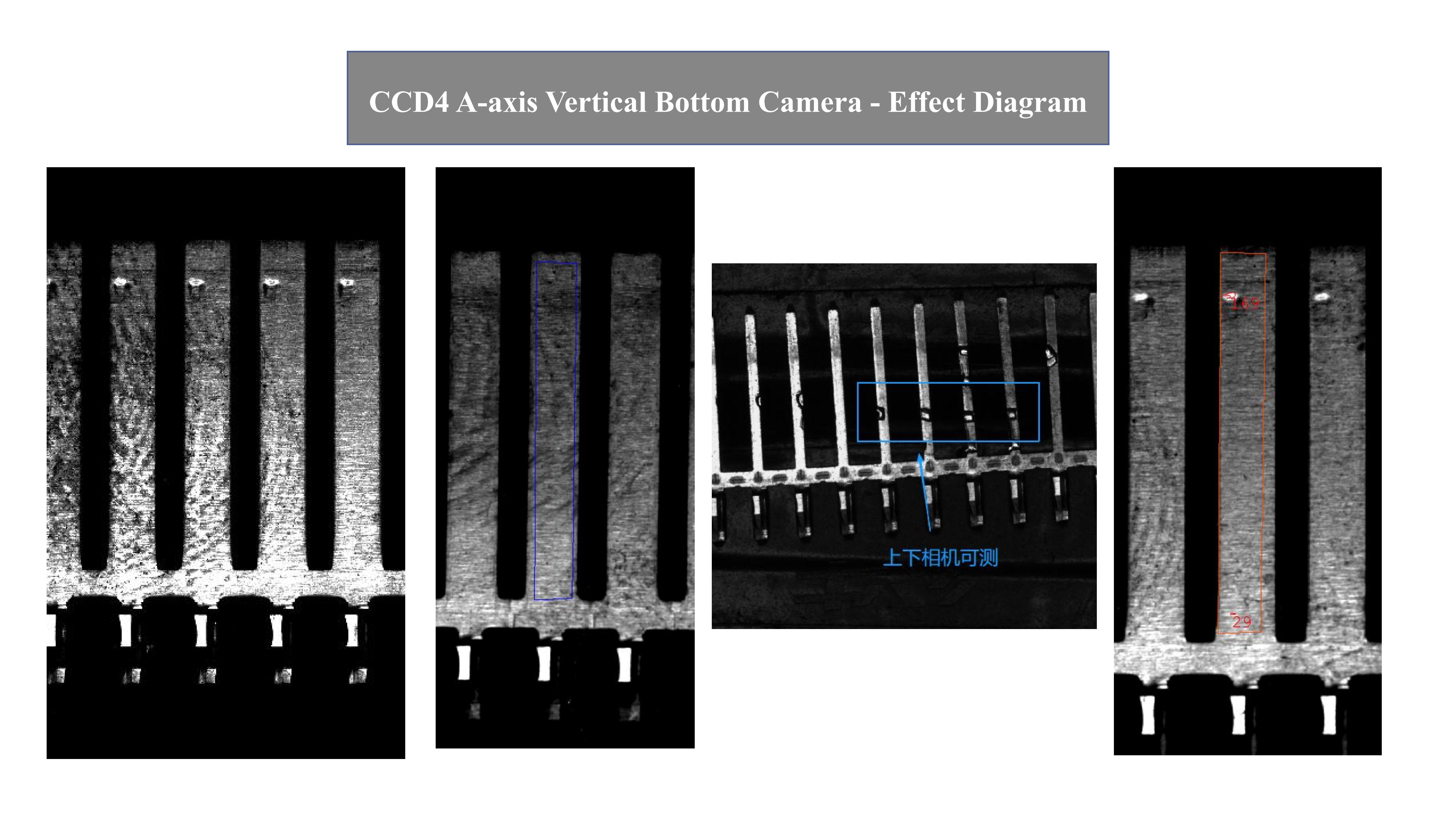

CCD4: Vertical bottom camera for underside inspection
CCD1
CCD1
CCD2
CCD3
CCD4

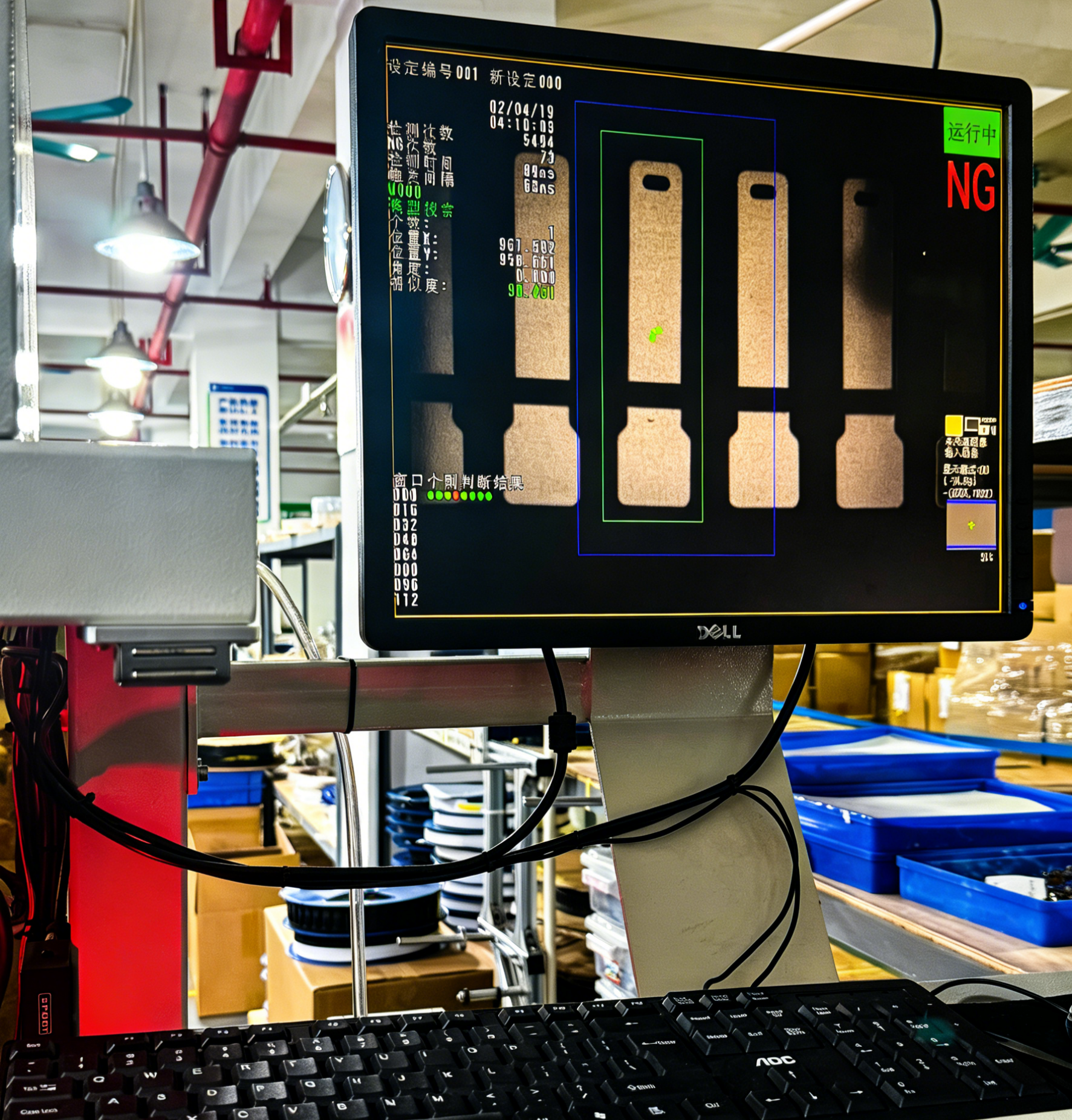

As parts move along the adjustable feeding track, each camera captures synchronized images under optimized lighting conditions. The system processes these images in real time, comparing them against predefined quality criteria. If a defect is detected—and particularly if a set number of consecutive defects occurs—the system automatically signals both the inspection unit and the press to halt, preventing further production of faulty parts.
Applications Across Stamping & Metal Forming
This inspection solution is ideal for a wide range of metal stamping applications, including:
Automotive Components: Brackets, clips, electrical contacts, and structural stampings
Electronics Shielding Parts: EMI/RFI shields, housings, and connector frames
Precision Mechanical Stampings: Springs, clips, fasteners, and small formed parts
Consumer Goods Components: Appliance parts, hardware fittings, and decorative metal pieces
Measuring Station Schematic Diagram

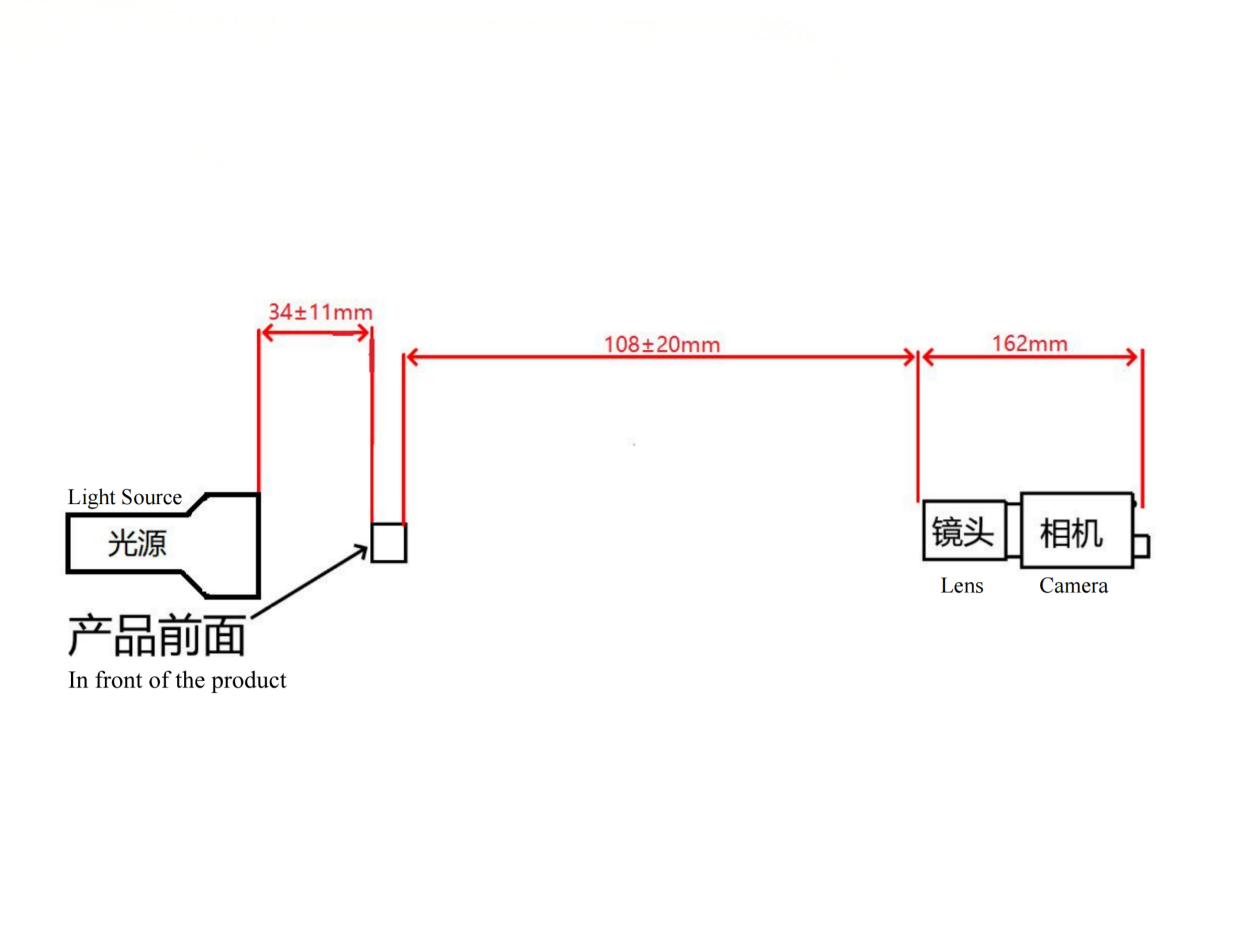

(1). Horizontal Rear Camera:
Bar Light Source: ZNT-26-xW-y
Distance from light-emitting surface to product: 34 ± 11 mm
Distance from camera rear to product plane: 270 ± 30 mm

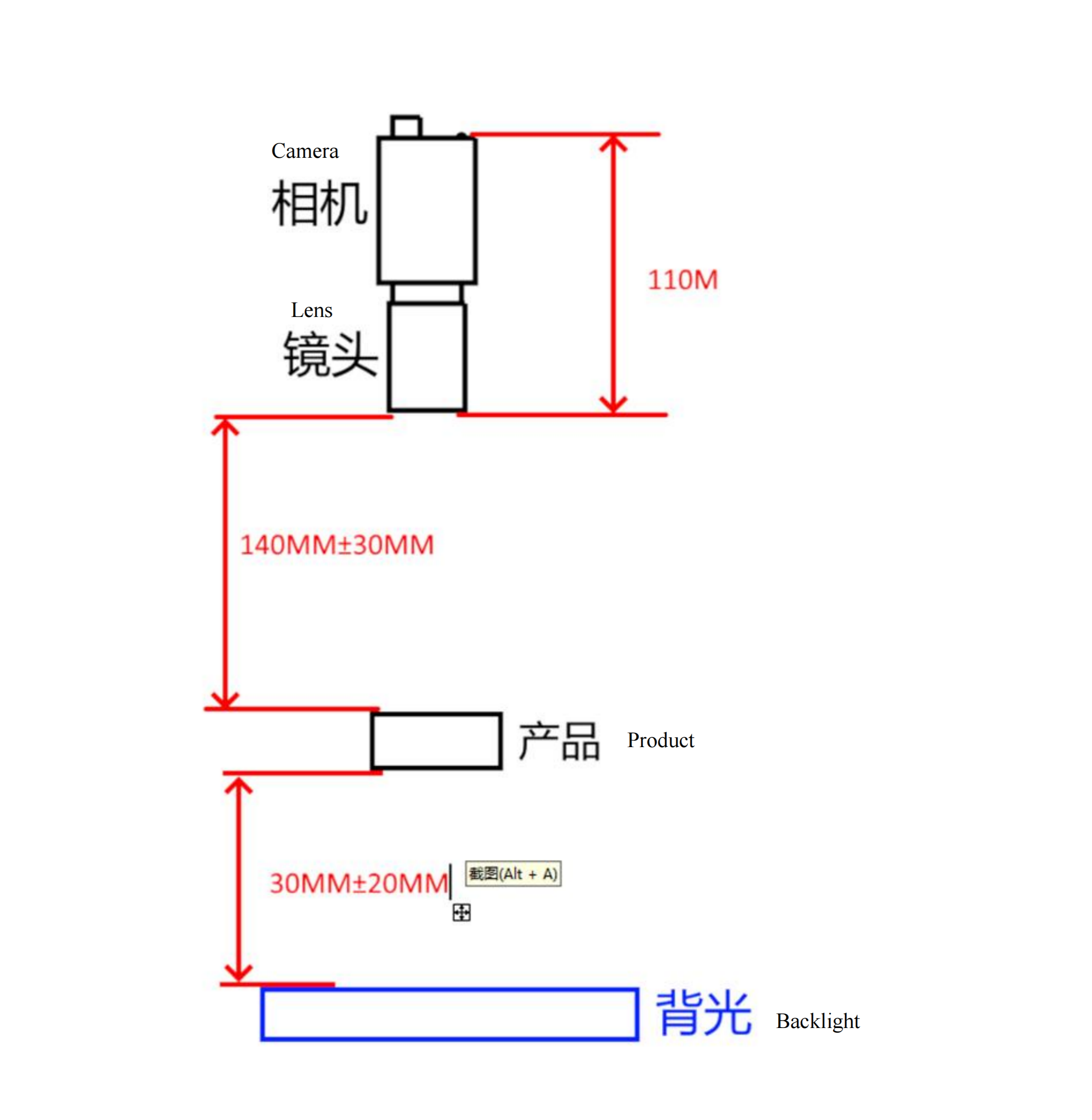

(2). Vertical Top Camera:
Bar Light Source: ZNT-TL4030-W
Distance from light-emitting surface to product: 30 ± 20 mm
Distance from camera rear to product plane: 250 ± 30 mm

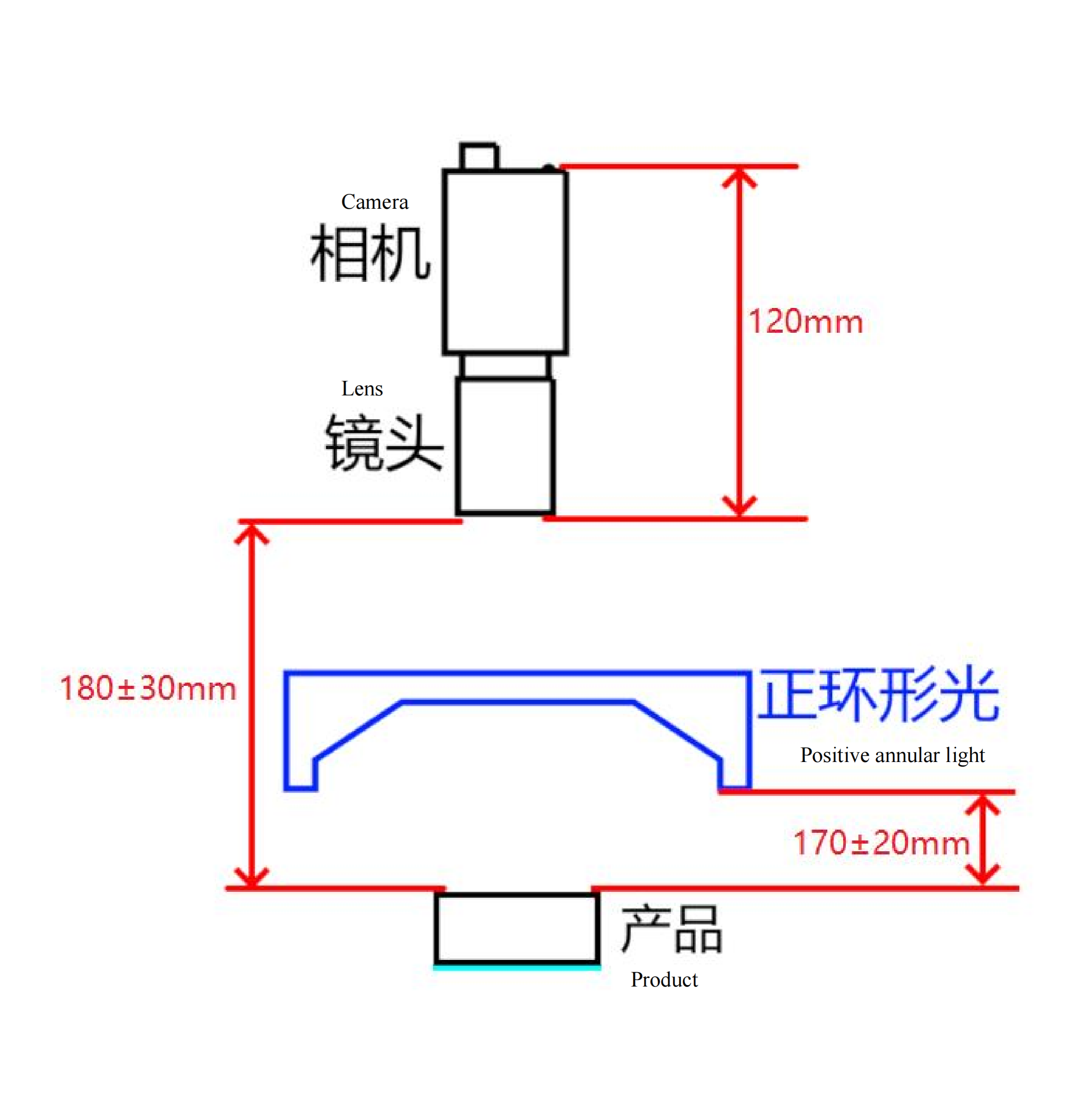

(3). Vertical Top Camera:
Ring Light Source: ZNT-RS9070-W
Distance from light-emitting surface to product: 170 ± 20 mm
Distance from camera rear to product plane: 300 ± 30 mm

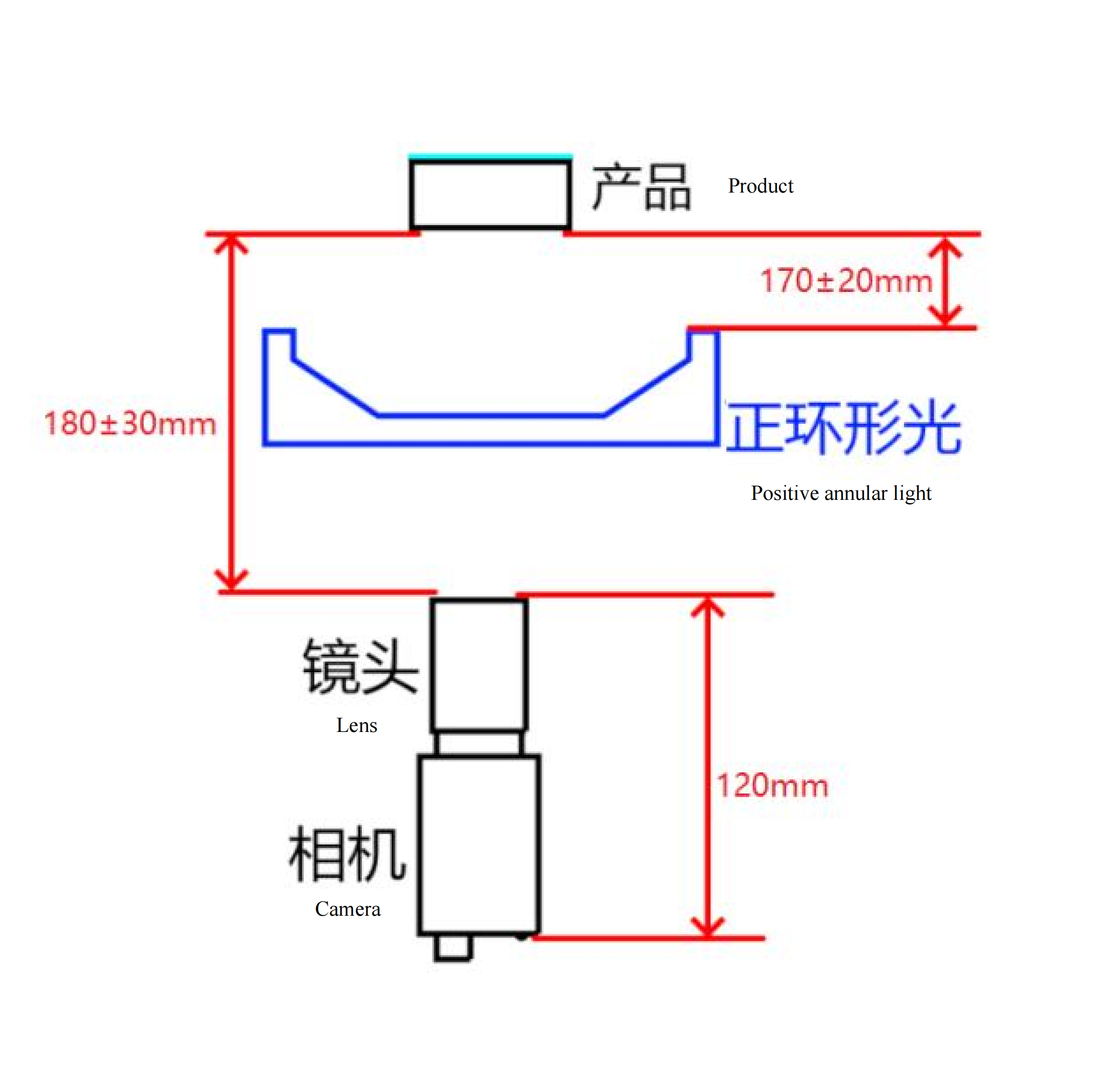

(4). Vertical Bottom Camera:
Ring Light Source: ZNT-RS9070-W
Distance from light-emitting surface to product: 170 ± 20 mm
Distance from camera rear to product plane: 300 ± 30 mm
Why Choose Our Press Line Inspection Solution?
In today’s competitive manufacturing landscape, quality cannot be an afterthought. Our 1-axis multi-camera inspection system provides several critical benefits:
Real-Time Defect Prevention: Catch flaws as they occur, not after thousands of bad parts have been produced.
Reduced Scrap & Rework: Early detection minimizes material waste and labor spent on sorting and reworking defective components.
Process Insights: Collect inspection data to identify trends, optimize press settings, and improve overall process stability.
Easy Integration: Compatible with most press controls and feeding systems, ensuring a smooth implementation with minimal disruption.
Conclusion: Elevate Your Stamping Quality with Smart, Integrated Inspection
As press speeds increase and part tolerances tighten, in-line inspection becomes essential to maintaining product quality and operational efficiency. Our Press Line Inspection Solution with 1-Axis Multi-Camera System offers a robust, adaptable, and intelligent approach to defect detection—giving you the confidence that every part leaving your press meets the highest standards.
Ready to implement smarter quality control in your stamping line?
Contact our vision solutions team to discuss your application, request a system demonstration, or receive a customized proposal. Let us help you build a more reliable, transparent, and efficient manufacturing process.
