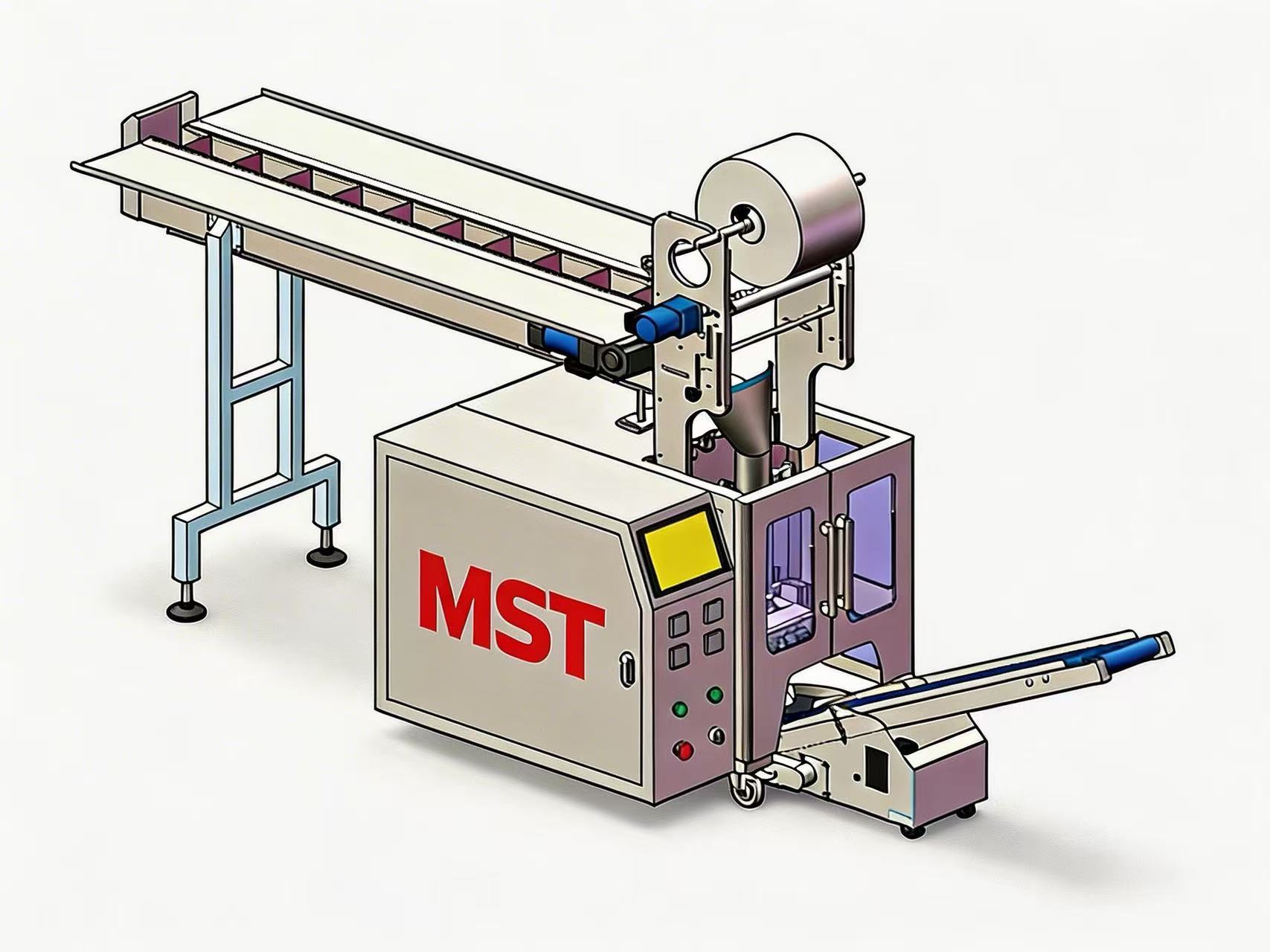

Superior Material & Durability: The main body of the equipment is manufactured from stainless steel, while the film supply structure is made of aluminum alloy. The stainless steel material is easy to clean, convenient to maintain, and features anti-dirt, anti-collision, and anti-wear properties. This combination defies the erosion of time and adapts to various operating environments.
Scientific Bucket Conveying System: The entire drag bucket collection and conveying system is made of stainless steel, featuring boat-shaped stainless steel storage boxes. This design perfectly supports and wraps the materials, eliminating material fly-out and ensuring the integrity of the material count during transport. Dual chains convey simultaneously to guarantee maximum smoothness and operator safety.
Firm & Aesthetic Sealing: The equipment utilizes a back-sealing (straight grain) and pattern knife cutting method. The back-sealing principle provides a wider dropping channel and high packaging firmness. The pattern knife cutting makes it quick and easy for end-users to open the accessory bags.
Independent Temperature & Action Control: Both the vertical and horizontal sealing molds independently use cylinders to control the sealing action. The four molds are equipped with independent temperature control systems to regulate heat sealing temperatures separately. The double-sided double-seal design maximizes the firmness and aesthetics of the packaging film.
Safety & Maintenance Focus: The electrical box is located on the left side of the main unit with a wide-opening door, making future upgrades, maintenance, and parts replacement highly convenient. The clean and organized circuit layout eliminates safety hazards. The sealing section is covered with stainless steel and acrylic panels to prevent accidents caused by operator errors.
Anti-Empty Bag Function: During feeding operations, the equipment ensures there is material in the bag before running.
Anti-Jamming Protection: If material jamming occurs during packaging, the machine will not damage its components (especially molds and cutters) or the packaged items.
Material Shortage Alarm: If the vibratory bowl is out of material, the machine automatically stops and alarms; the detection time is freely adjustable.
Film Shortage Auto-Stop: If there is no film supply action in the paper feeding section, the equipment automatically detects this, stops, and triggers an alarm.
Quantitative Auto-Stop: The required number of packaging bags can be freely set on the screen; once the target is reached, the machine automatically stops and alarms.
Flexible Packaging Modes: Users can switch between mixing multiple different materials or packaging a single material alone. The switching and debugging are simple, with customizable packaging quantities.
| Parameter | Specification |
| Packaging Speed | 10-50 bags/minute (Depending on film material and feeding speed) |
| Bag Dimensions | Width ≤ 150mm, Length ≤ 220mm |
| Packaging Material | OPP/CPP, CPP/PE, and other heat-sealable composite materials (Roll width ≤ 320mm) |
| Edge Sealing Width | 8mm - 10mm |
| Exhaust Method | Pinhole exhaust (Sponge exhaust also available as an option) |
| Power / Air Pressure | 220V 50HZ / 0.6-0.8Mpa |
| Equipment Weight | Approx. 200kg (Subject to actual manufacturing weight) |
To ensure long-term stable operation, the SIG-320 is equipped with core components from renowned brands:
Core Control: Japan Mitsubishi PLC.
Human-Machine Interface: Beijing Kunlun Tongtai 7-inch color touch screen.
Pneumatic Components: AirTAC cylinders and solenoid valves.
Electrical Components: Schneider intermediate relays, Japan Panasonic fiber optic amplifiers, etc..
(Note: The production cycle is 30-35 working days (±2 days) after the contract is signed, the deposit is received, and the packaging materials arrive at the factory. The company is located in Wanyang Zhongchuang City, Shishan Town, Nanhai District, Foshan City, Guangdong Province.)
